Square D NFN6CU NF 400/600 Amp 100 % Copper Panelboard Neutral Kit

Product Description

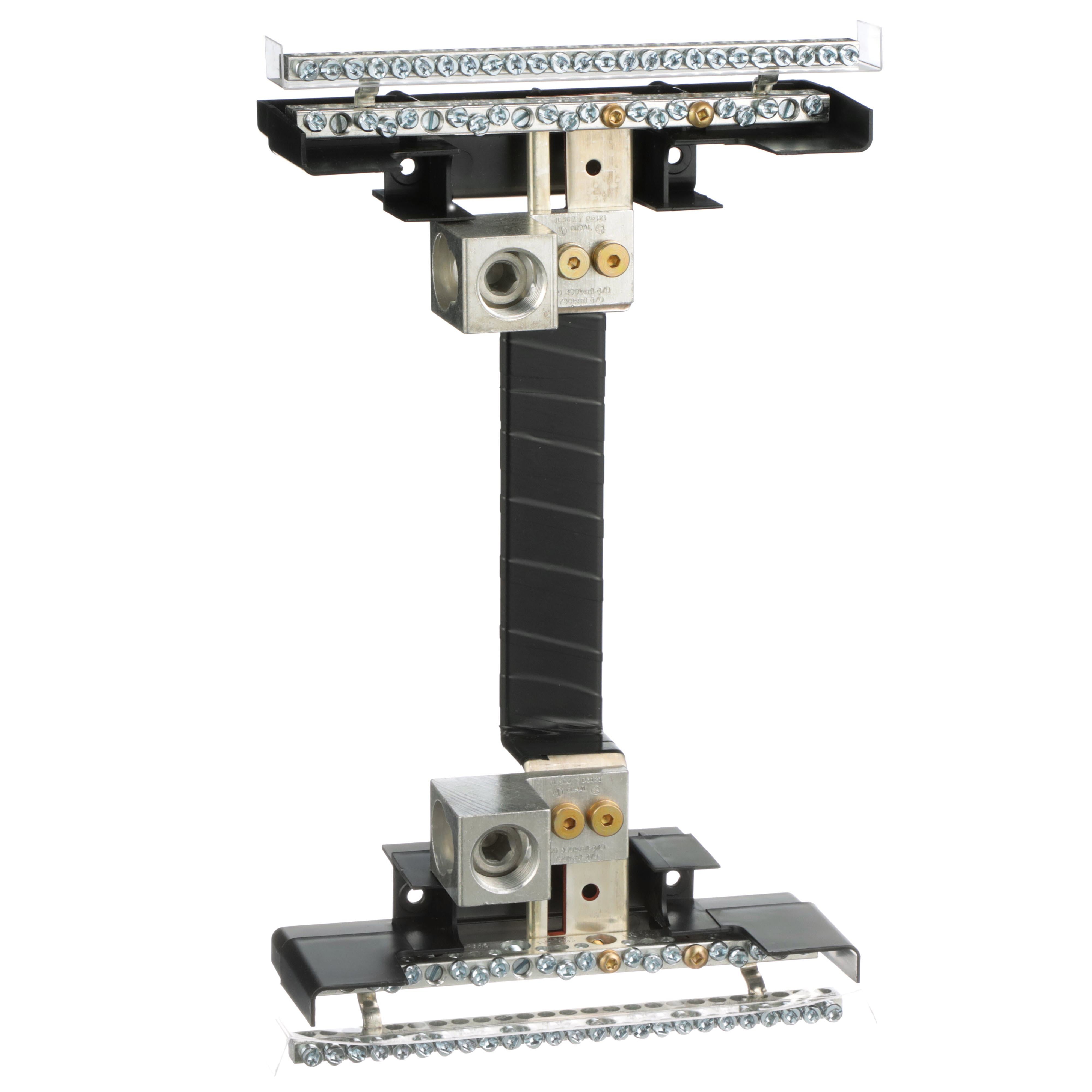

The Square D NFN6CU is a copper neutral bar kit consisting of one conductor rated at 400A. This NF panelboard neutral assembly is designed for panelboards with sub-feed or thru-feed lugs and 100% rated neutrals. It is suitable for commercial buildings, industrial buildings, stadiums, and offices. The kit is compatible with LHL and LAL circuit breakers.

• Suitable for commercial, industrial buildings, stadiums, and offices
• Modular construction accepts field installable accessories and conversion kits
• Compatible with LHL and LAL circuit breakers

Product Highlights

The Square D NFN6CU neutral bar kit provides protection for commercial and industrial applications. It features a copper neutral bar and is UL listed and CSA certified by UL.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: NFN6CU
• Country of Origin: Mexico

Technical Specifications

• Type: Neutral bar
• Brand: Square D
• Amperage: 400 Amp
• Material: Copper
• Sub Brand: NF
• Applications: PANELBOARDS
• Certifications: CULus
• Country of Origin: USA
• Line Rated Current: 400 A || 600 A
• Circuit Breaker Type: LC,LI
• Number of Conductors: 1
• Catalog Number: NFN6CU
• Manufacturer: Schneider Electric
• Made in USA: No
• Panelboard Type: Review
• UPC: 785901542445
• GTIN: 00785901542445
• Conductor Rating: 400A
• Suitable Breakers: LHL and LAL circuit breakers
• Amps [Specifications]: 600 A
• Item [Specifications]: Neutral Bar
• Amps AC [Specifications]: 600
• Features [Specifications]: Mercury Free
• Standards [Specifications]: cULus
• Application [Specifications]: NF panelboard
• Bus Material [Specifications]: copper
• For Use With [Specifications]: Square D NF Panelboards
• Product Type [Specifications]: Neutral Bar
• Accessory Type [Specifications]: Neutral Bar
• Max. Wire Size [Specifications]: 2/0 AWG
• Min. Wire Size [Specifications]: 14 AWG
• Number of Terminals [Specifications]: 1
• Current Rating: 400/600 Ampere
• Used On: NF Panelboard
• Kit Contents: Neutral Assembly, (4) #10-32 TPI x 5/16 Inch Tapping Screw
• Range Of Product: Square D
• Product Or Component Type: neutral bar
• Product Destination: NF panelboard
• Product Certifications: cULus
• Eu Rohs Directive: Compliant
• Reach Free Of Svhc: Yes
• China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free: Yes
• Rohs Exemption Information: Yes
• Packaging Without Single Use Plastic: No
• Packaging Made With Recycled Cardboard: No
• ECCN: EAR99
• Rated Current: 400A
• Suitable For Use With: NF Series LAL/LC/LHL and LI Circuit Breaker Panelboard
• Specifications: 400/600 A, (1) Conductor, Surface Mount
• UNSPSC: 39121112
