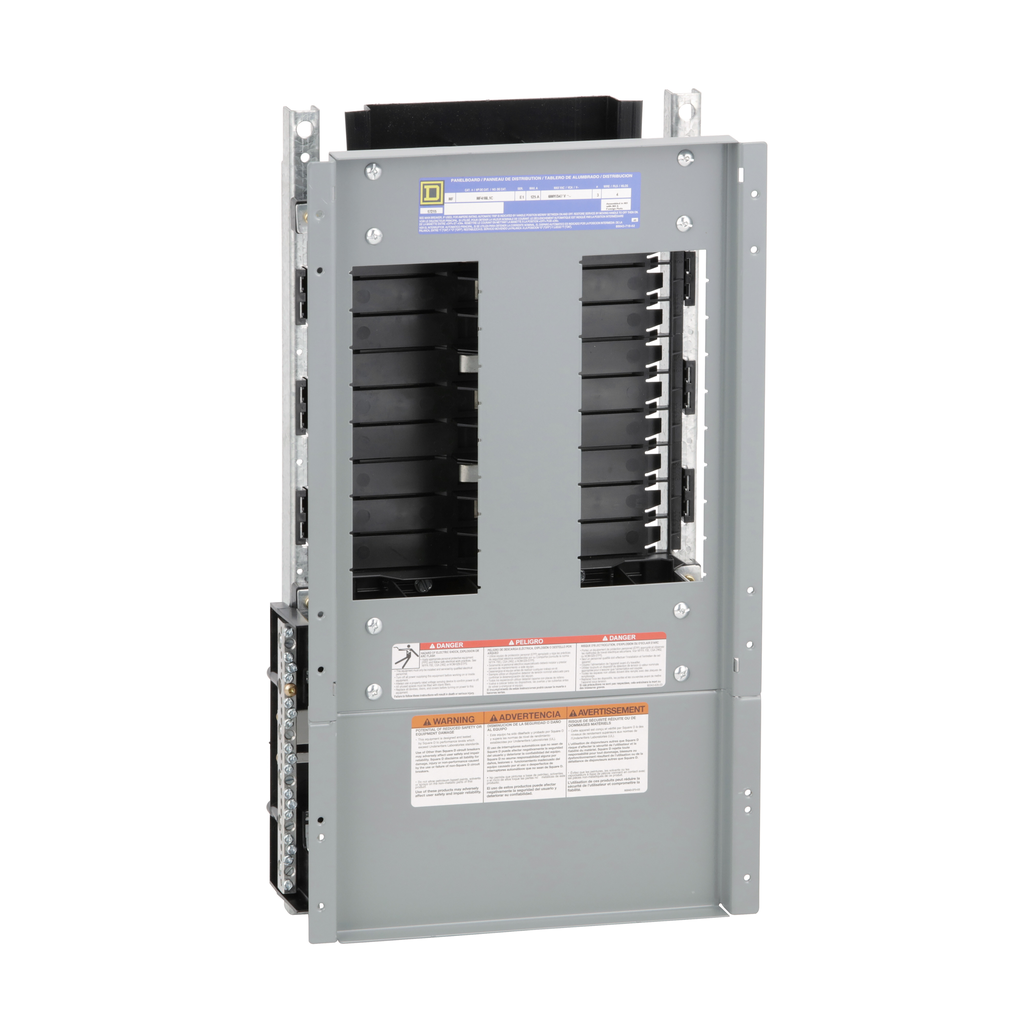

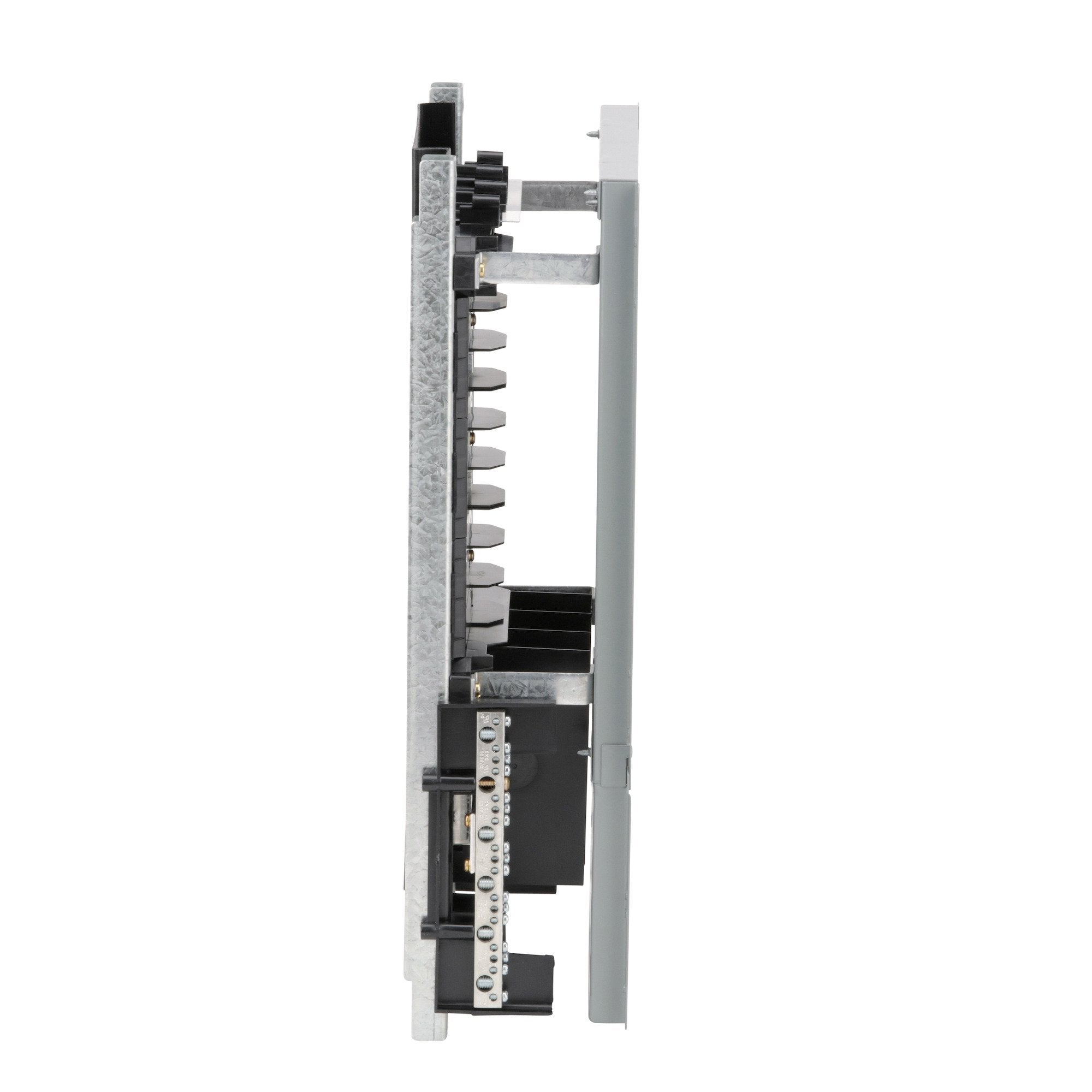

Square D NF418L1C 480 Star/277 VAC 100/110/125 Amp 3-Phase 4-Wire 18-Circuit Panelboard Interior

Product Description

The Square D NF418L1C is a panelboard interior designed for 480 Star and 277 VAC applications. This model supports 100, 110, or 125 amperes across three phases and features 18 circuit spaces.

• Rated for 125A at 480Y/277 VAC three phase
• Suitable for various applications including commercial and industrial buildings
• UL listed and CSA certified for reliability

Product Highlights

This NF panelboard interior offers versatility and compatibility with various circuit breaker types including EDB, EDG, and EDJ. It supports easy installation with field-convertible top or bottom feed options and the ability to switch from main lug to main breaker systems.

Product Information

Standard Information

• Catalog Number: NF418L1C
• Manufacturer: Schneider Electric

Technical Specifications

• Rated Voltage: 480Y/277 VAC
• Rated Amperage: 125 A
• Interrupt Rating: 65 kA
• Material: Copper
• Dimensions: 21 inches tall, 10.44 inches wide
• Number of Spaces: 18
• Wire Connection: Accepts 6 AWG to 2/0 AWG copper or aluminum wire
• Warranty: 18 months
