SCHNEIDER ELECTRIC Square D NC74VSHR 20 x 74 Inch NEMA 1 Surface Mount Hinged Panelboard Trim
SCHNEIDER ELECTRIC Square D NC74VSHR 20 x 74 Inch NEMA 1 Surface Mount Hinged Panelboard Trim

Square D NC74VSHR 20 x 74 Inch NEMA 1 Surface Mount Hinged Panelboard Trim

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: NC74VSHR
Availability: Out Of Stock
$669.75
$669.75
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

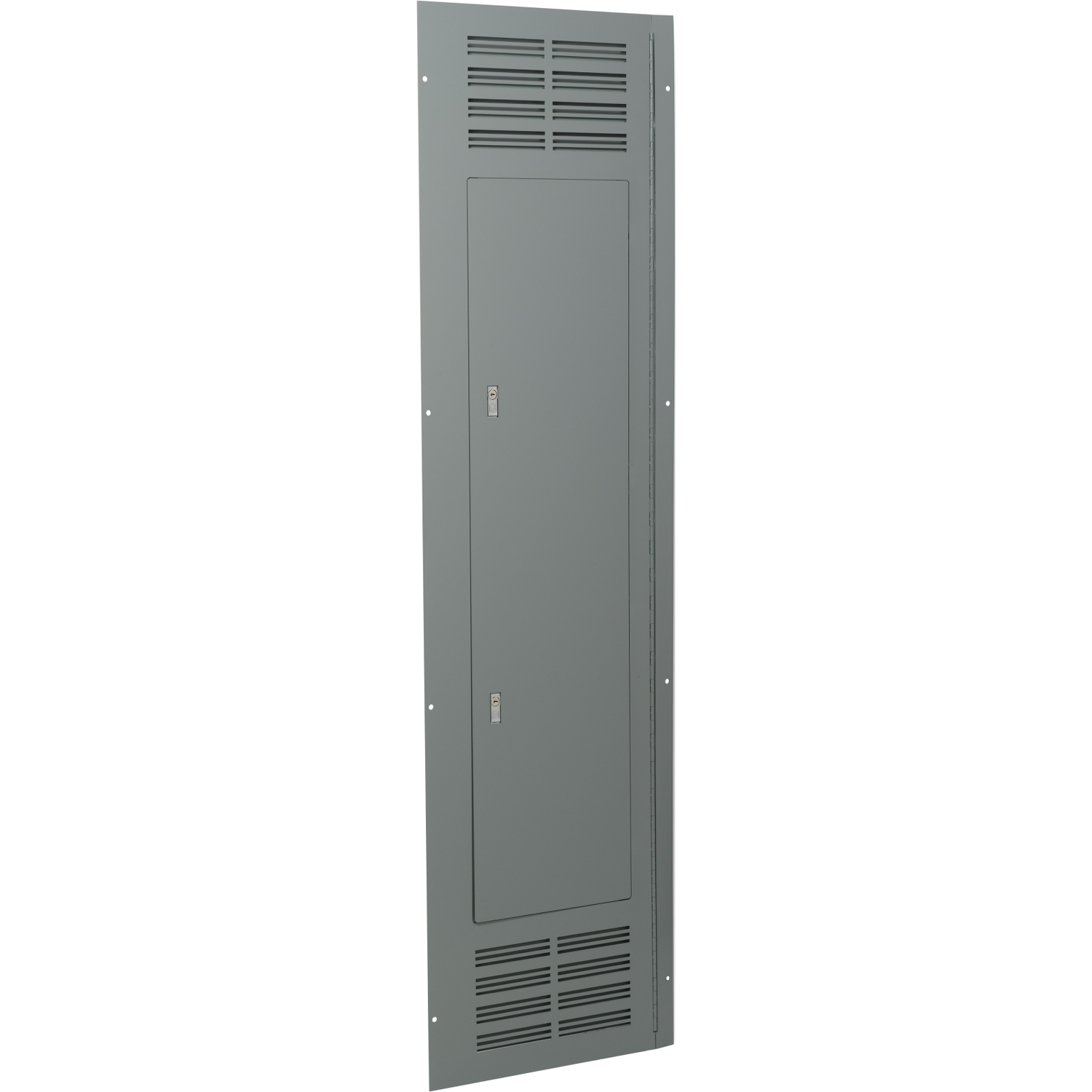

The Square D NC74VSHR is a 20 x 74 inch NEMA 1 rated steel surface mount hinged panelboard trim designed for NF and NQ panelboards used in commercial and industrial applications. This ventilated cover features a hinge on the right side. It is UL Listed and CSA certified by UL.

  • Steel NEMA 1 rated cover
  • For NF and NQ panelboards
  • Hinge on the right

Product Highlights

This Square D panelboard trim provides protection for commercial and industrial applications. It features a wide selection of circuit breakers, accessories, and ready to install kits.

Product Information

Standard Information

  • Brand: SQUARE D
  • Manufacturer Part Number: NC74VSHR
  • Country of Origin: United States
Technical Specifications
Brand
Square D
Type
Hinged Ventilated
Width
20 in
Height
74 in.
Amperage
400 Amp-600 Amp
Material
Steel
Enclosure
1
NEMA Size
1
Sub Brand
NQ / NF
Applications
PANELBOARD COMPONENT
Certifications
CULus
Country of Origin
USA
Enclosure Material
steel
Line Rated Current
400 A
Size
74.02 in
Catalog Number
NC74VSHR
Manufacturer
Schneider Electric
Made in USA
Yes
Panelboard Type
Panelboard Trim
UPC
785901003922
GTIN
00785901003922
Item Type
Ventilated;hinged;Surface cover
Used On
400/600 Ampere NF/NQ Series Merchandised Main Lug/Main Breaker Panelboard
Mounting
Surface
Product Or Component Type
surface cover
Cover Type
surface cover
Type Of Front Plate
ventilated || hinged
Nema Degree Of Protection
NEMA 1
Rohs Exemption Information
Yes
Packaging Made With Recycled Cardboard
No
Environmental Disclosure
ENVPEP1404010EN
Packaging Without Single Use Plastic
No
Toxic Heavy Metal Free
Yes
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity Profile
N/A
Take-Back
No
Item [Specifications]
Pnlbd Cover/Trim Nf T1 S 74H 20W
Width [Specifications]
20 in
Height [Specifications]
74 in
Features [Specifications]
Mercury Free
Material [Specifications]
steel
Standards [Specifications]
cULus
Product Type [Specifications]
Pnlbd Cover/Trim Nf T1 S 74H 20W
Accessory Type [Specifications]
Pnlbd Cover/Trim Nf T1 S 74H 20W
Country of Origin (subject to change) [Specifications]
United States
NEMA Rating
1
Color Family
Gray
Depth
5-3/4 in
Length
74 in
Mounting Type
Surface
Suitable For Use With
NQ/NF Series Circuit Breaker Panelboard
