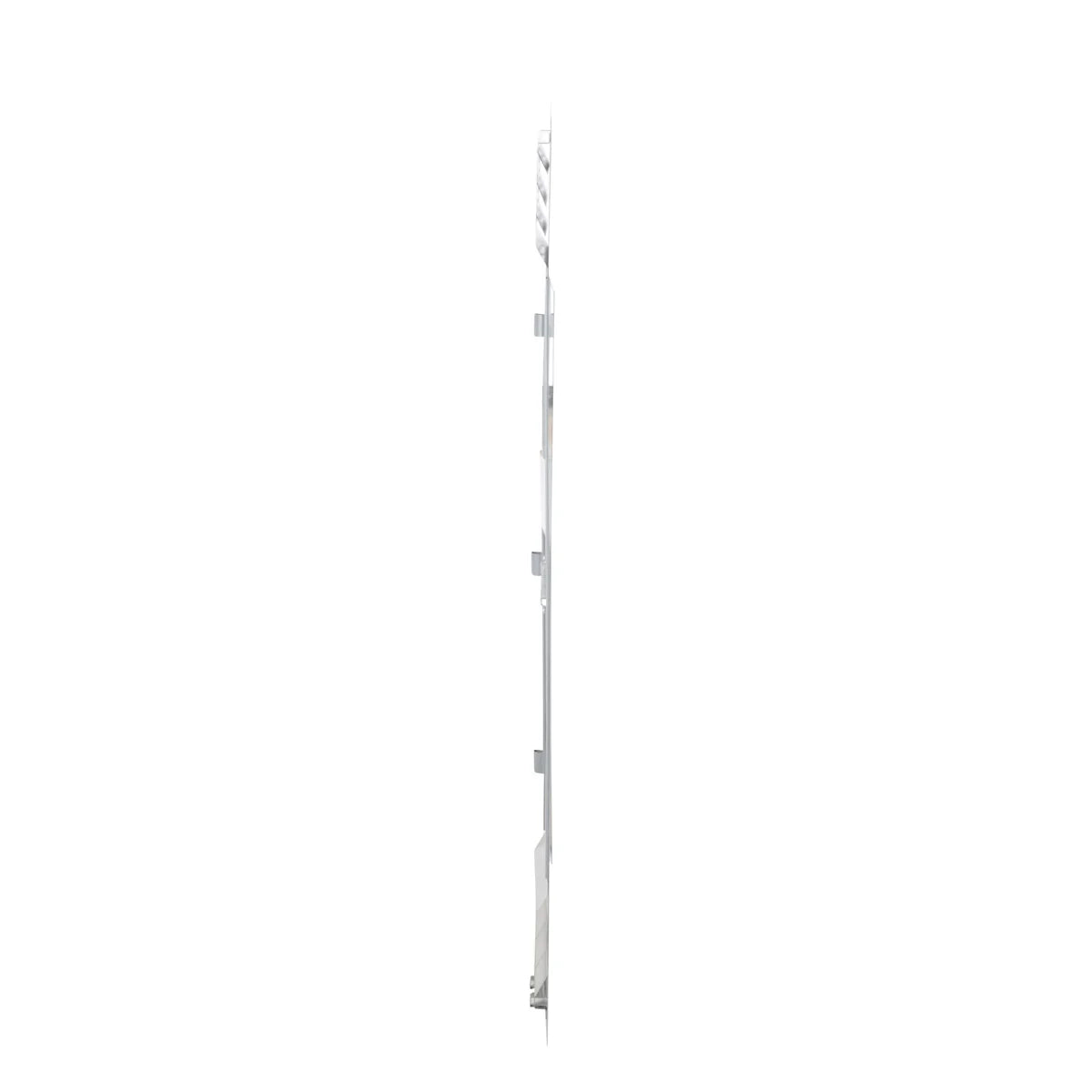

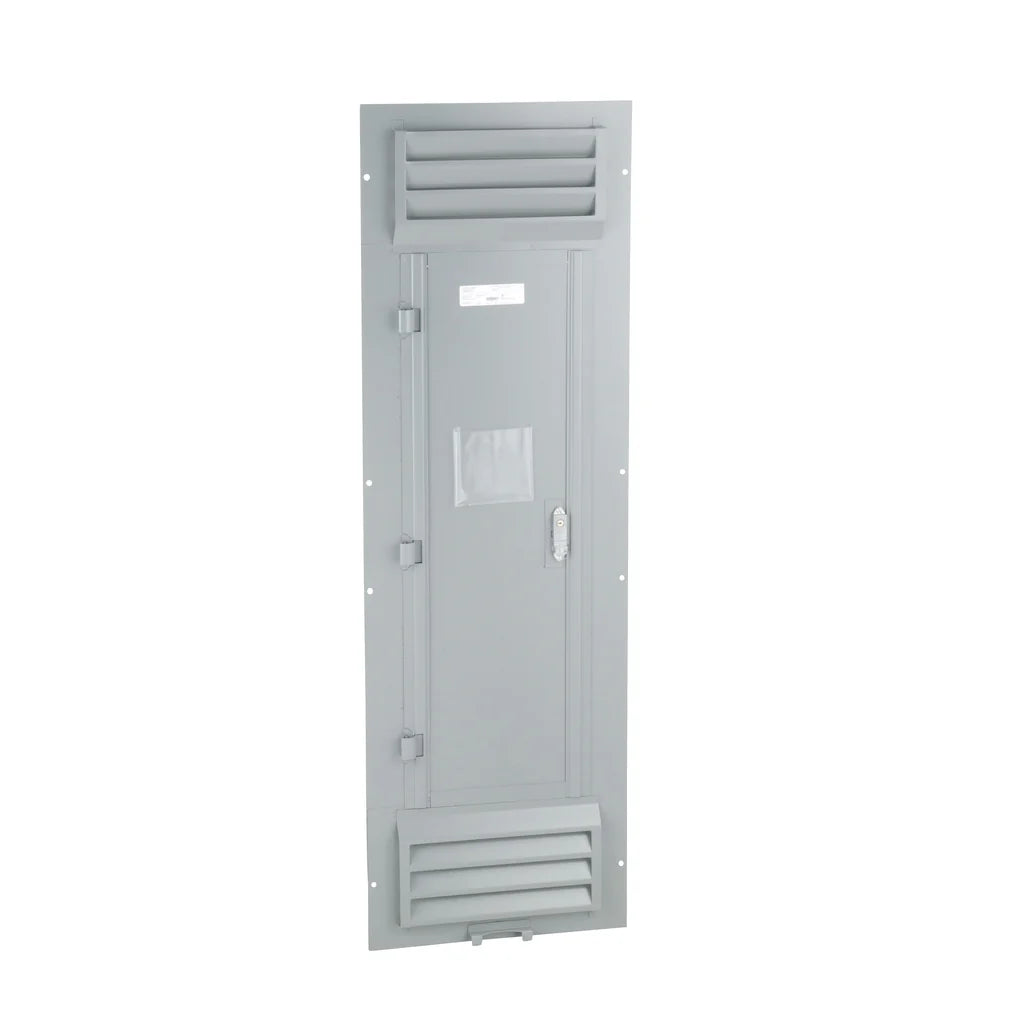

Square D NC62VS Surface Mount Panelboard Trim 20 x 62 Inch

Product Description

The Square D NC62VS is a surface mount panelboard trim designed for use with both NQ and NF panelboards. This trim measures twenty inches wide by sixty-two inches high and is suitable for surface type one enclosures. The NQ and NF panelboards are known for their versatility, featuring a wide selection of circuit breakers and accessories. The NC62VS trim is ideal for applications requiring service equipment, providing 200% rated neutrals for non-linear loads. It can be converted from main lug to main breaker and features ventilated construction. The enclosure trim allows for field convertible tops or bottoms, enhancing installation flexibility.

• Compatible with NQ and NF panelboards
• Constructed of durable steel
• Ventilated design suitable for various applications

Product Highlights

The Square D NC62VS provides effective protection and organization for electrical circuits while facilitating easy access to components. It is designed to simplify electrical distribution.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: NC62VS
• Material: Steel
• Height: 62 inches
• Width: 20 inches
• Amperage: 250 Amp
• Type: Ventilated; Surface Cover
• Enclosure Type: NEMA 1
• Country of Origin: USA
