Square D NC56VS 20 x 56 Inch Surface Mount Panelboard Trim

Product Description

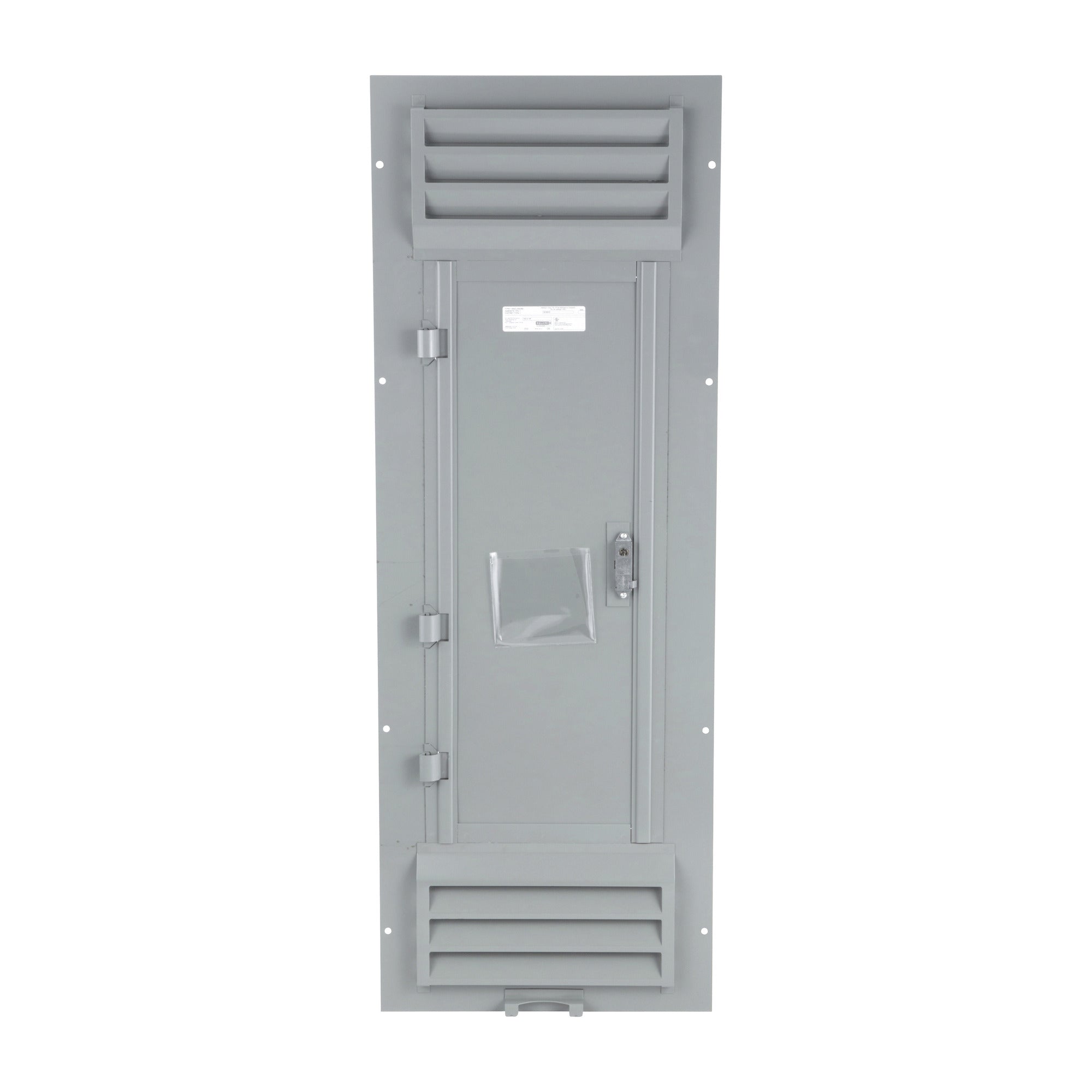

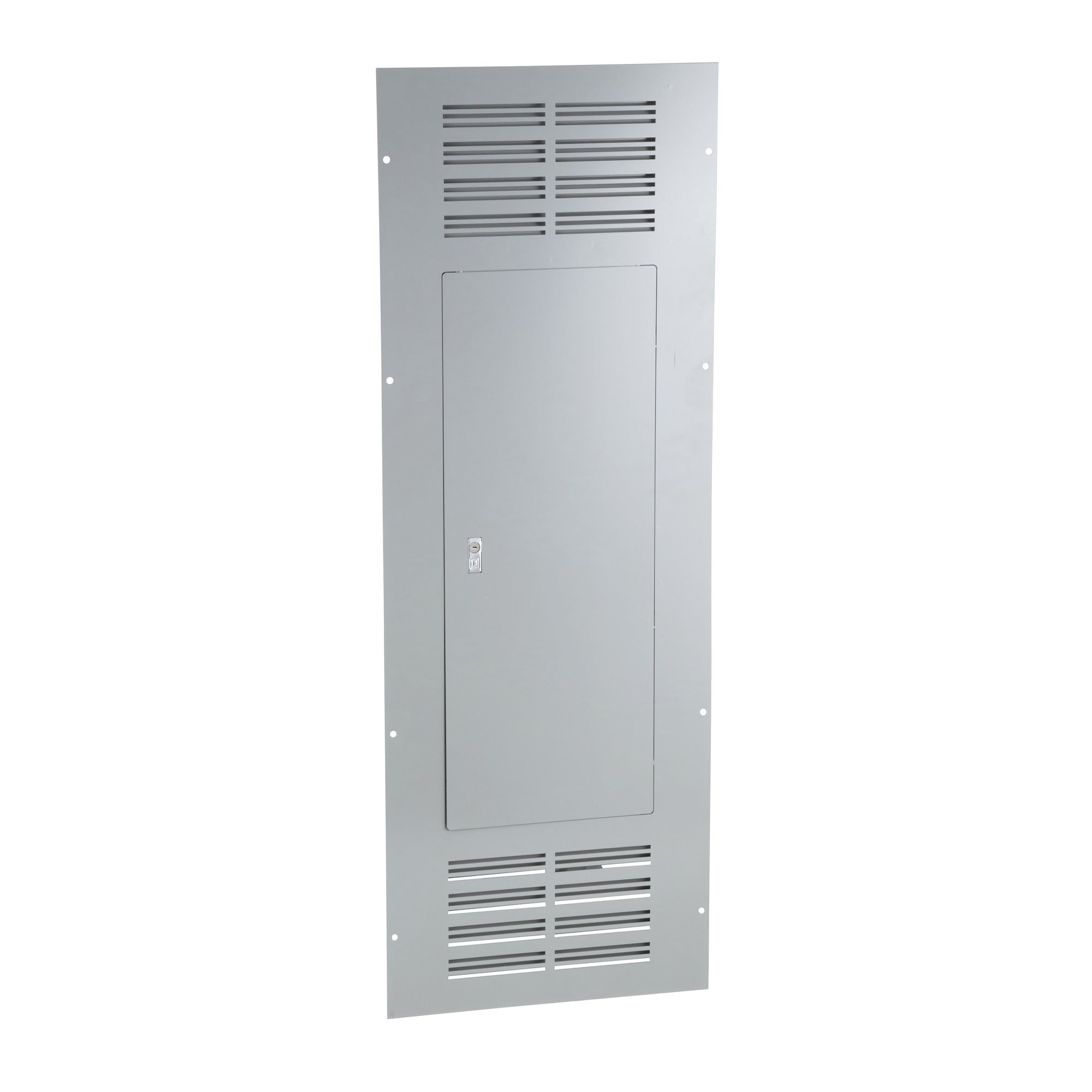

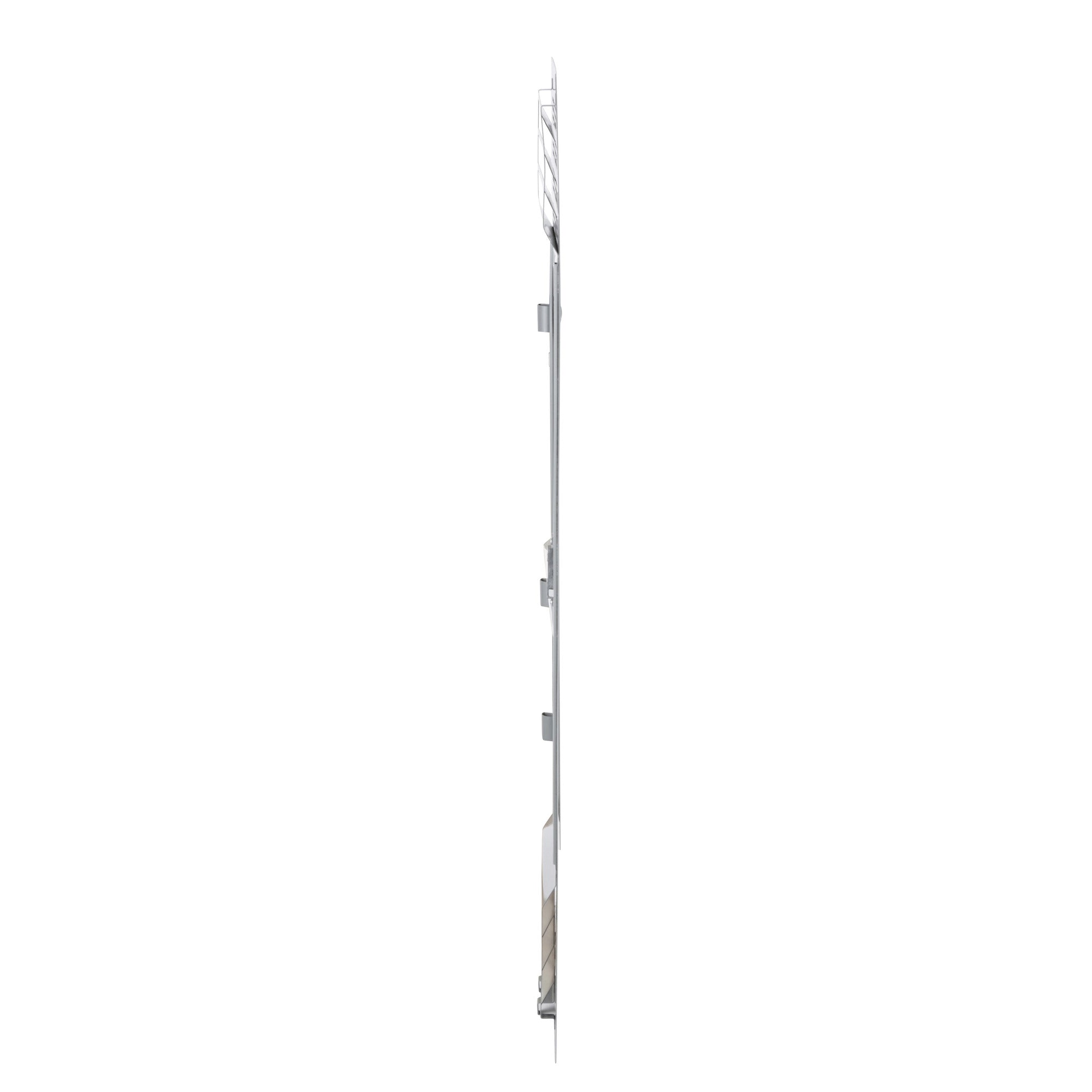

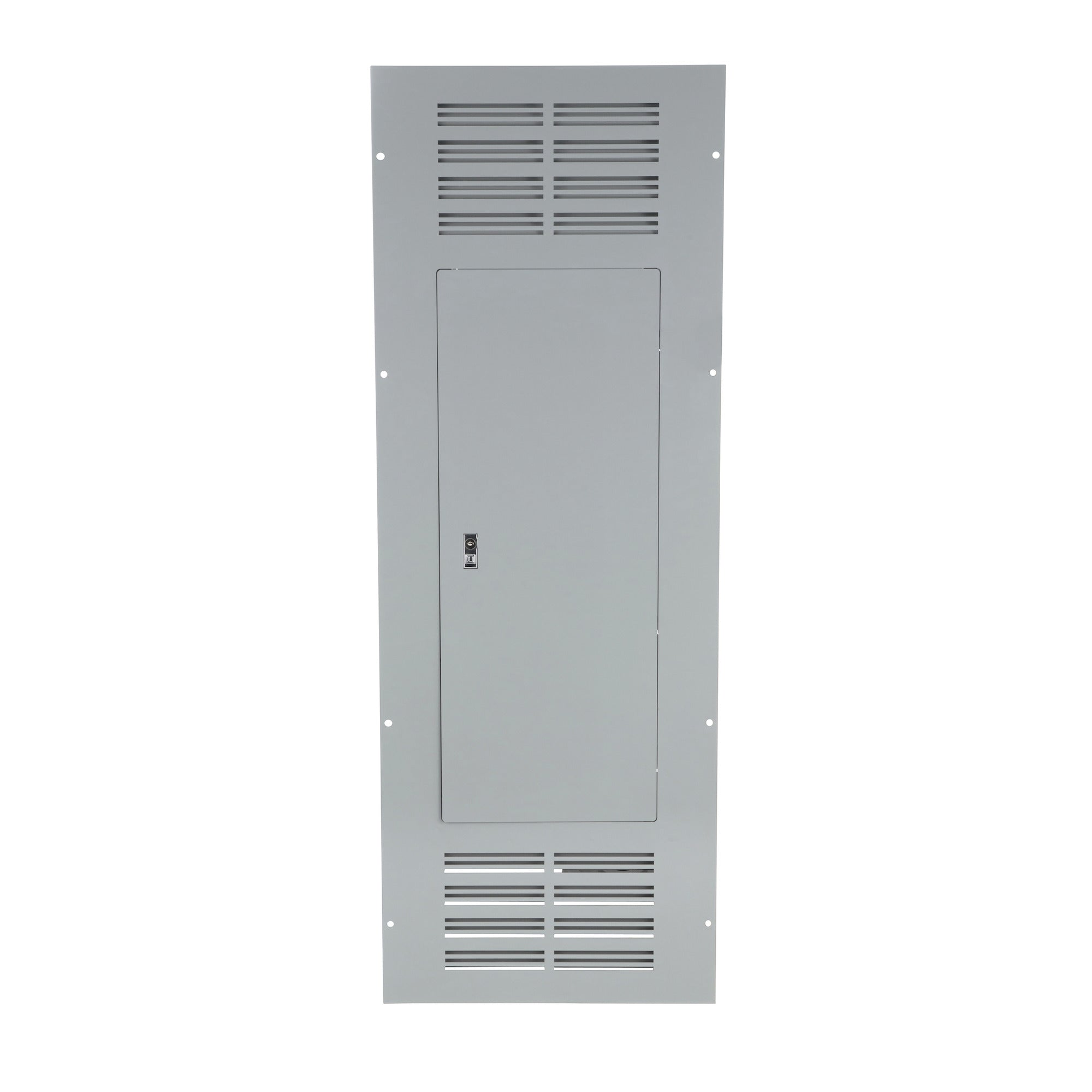

The Square D NC56VS is a surface mount panelboard trim designed for NQ and NF panelboards. This trim measures twenty inches in width and fifty-six inches in height, providing a standard enclosure size for efficient installation. It features ventilated construction suitable for surface type one enclosures.

• Dimensions: 20 inches width x 56 inches height.
• Ventilated design for efficient heat dissipation.
• Compatible with NQ and NF panelboards.

Product Highlights

This trim allows for the installation of circuit breakers and other accessories, enhancing the functionality of panelboards. It supports 200% rated neutrals for non-linear loads and can be converted from main lug to main breaker configuration.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: NC56VS
• Enclosure: Surface cover; Steel
• Color: Gray
• Amperage: 400 Amp - 600 Amp
• Country of Origin: USA
• Warranty Length: 18 months
• UPC: 785901798965
• GTIN: 00785901798965
