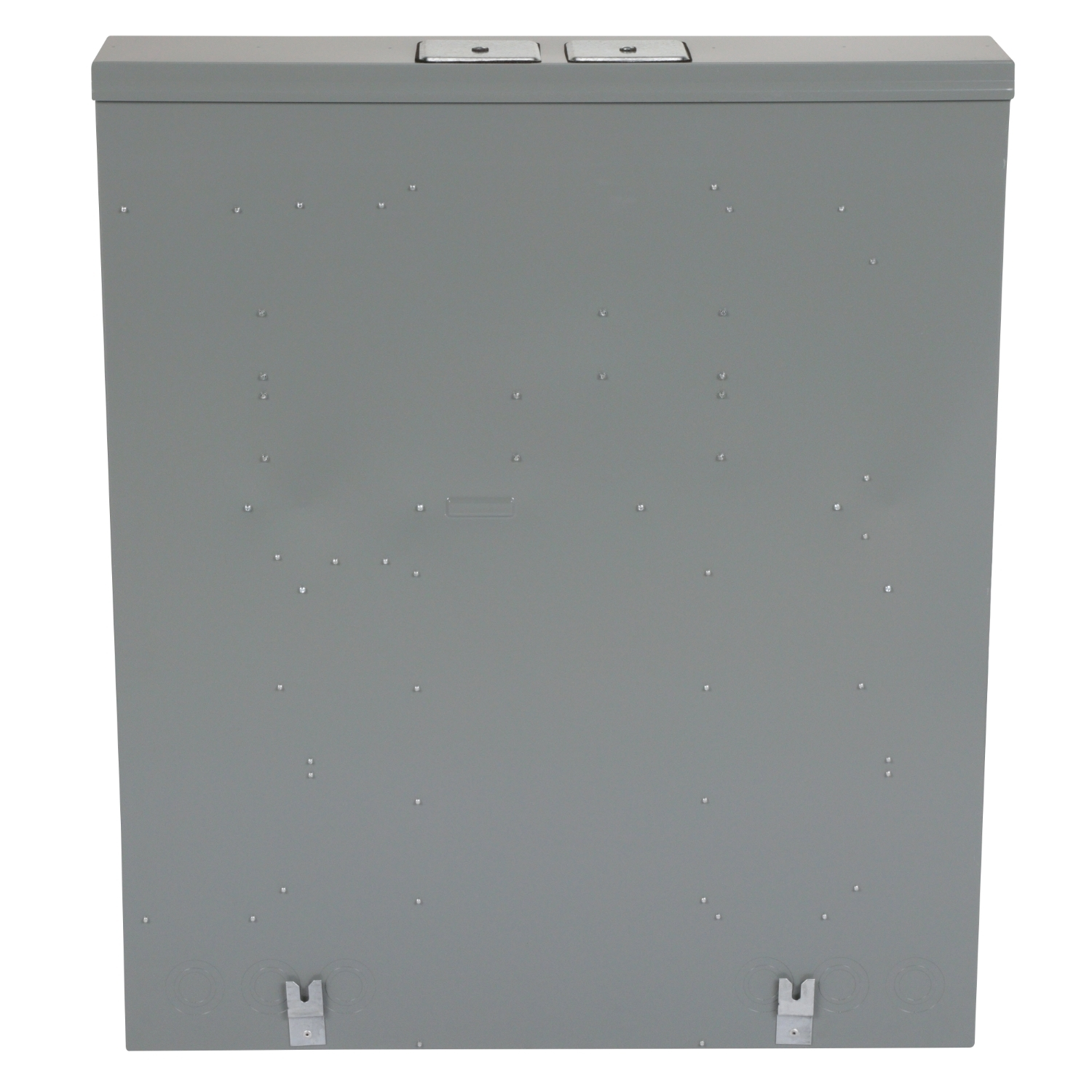

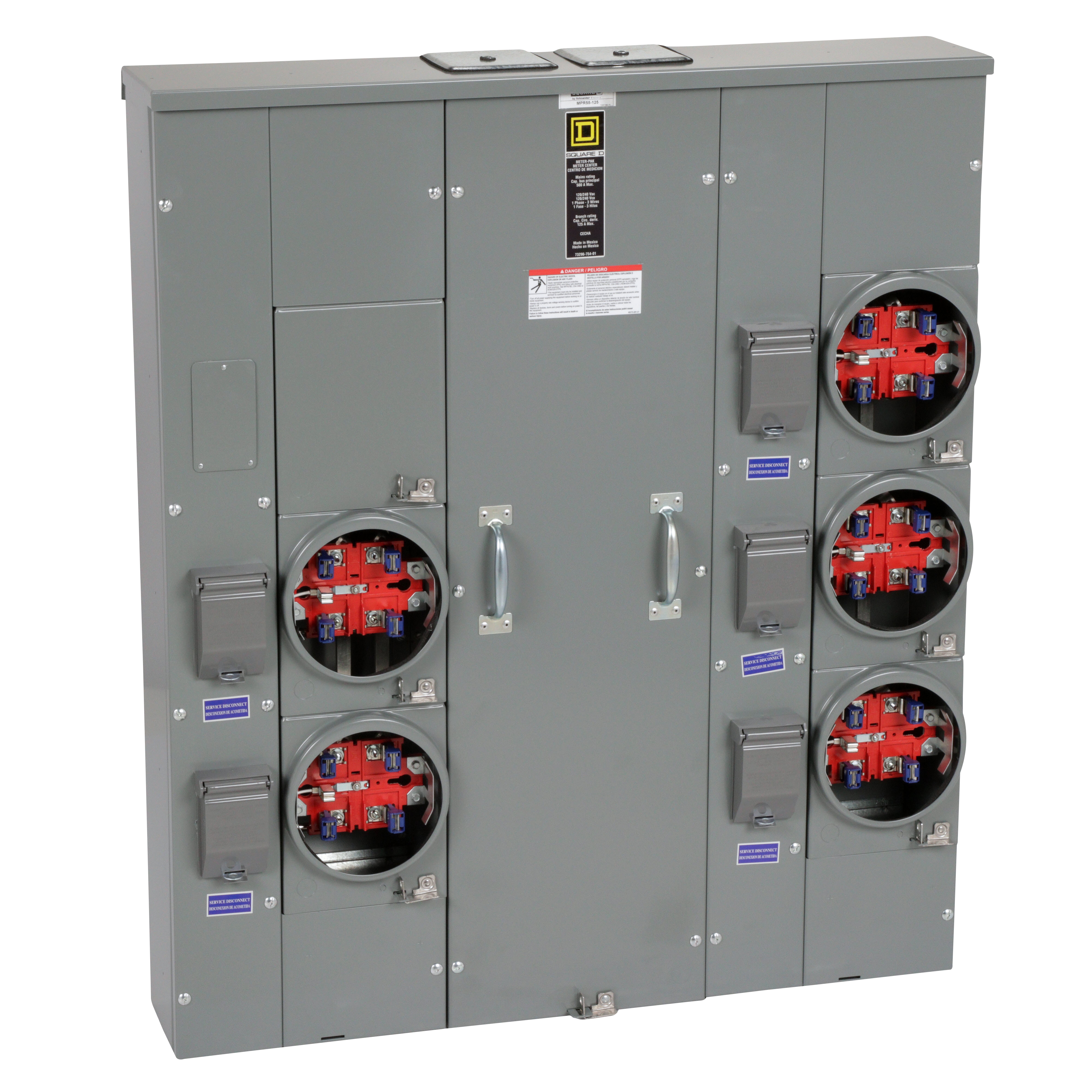

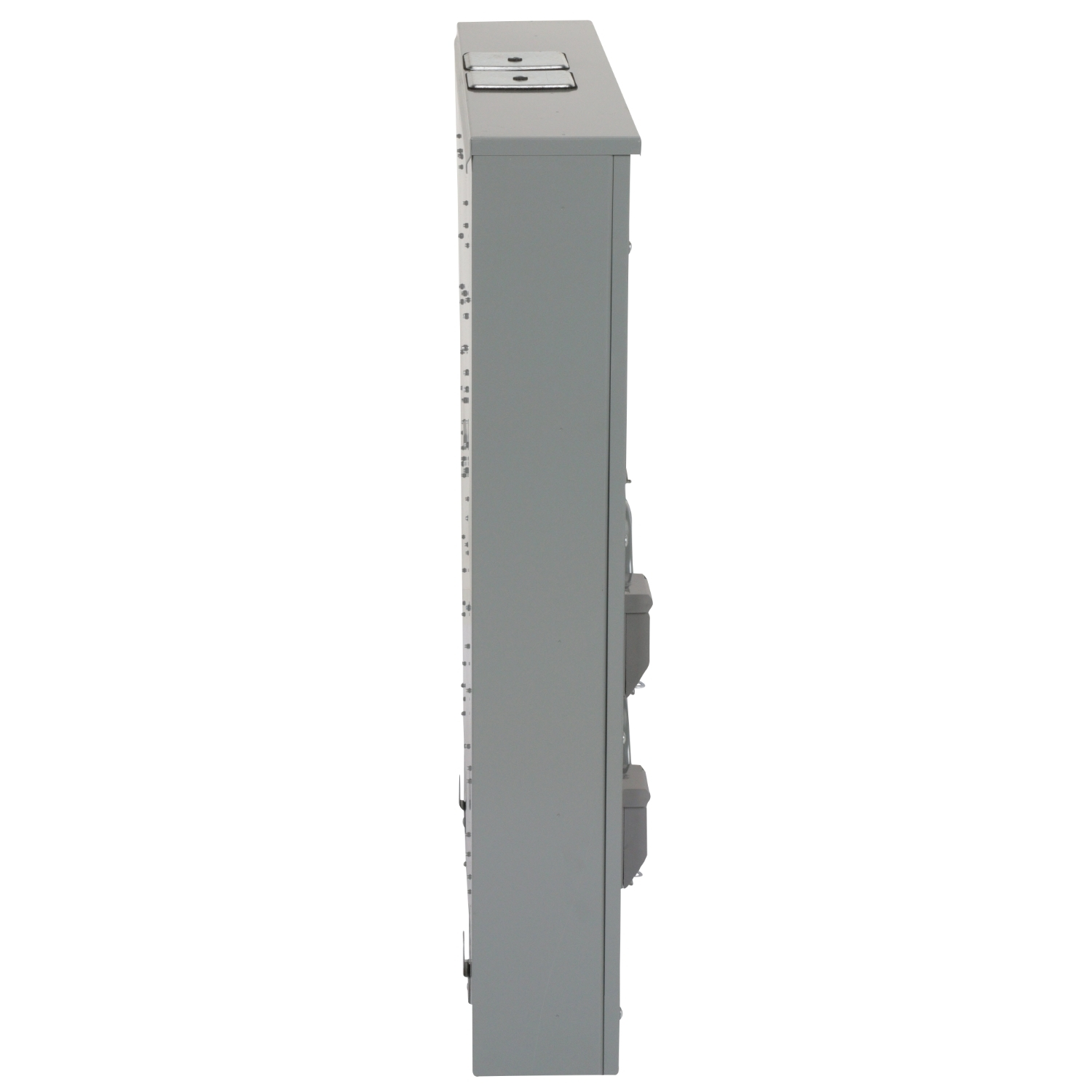

Square D MPR55125 MP Meter Pak Meter Center 125 Amp 5-Position

Product Description

The Square D MPR55125 MP Meter Pak meter center offers a wide range of multi metering applications. This meter center is UL Listed and features NEMA Type 3R construction that meets EUSERC standards. It is rated at 125 A with 5 positions, has no bypass, and a 500 A main bus. This system is a ringless type.

• UL Listed
• NEMA Type 3R construction meets EUSERC standards
• Rated at 125 A with 5 positions

Product Highlights

The Square D MP Meter Pak meter center is ideal for multi-metering applications, featuring a ringless design, 500 A bus rating and a NEMA 3R enclosure.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: MPR55125
• Country of Origin: Mexico

Technical Specifications

• Type: 5-Position 3-Wire Main Lug
• Brand: Square D
• Depth: 7.28 Inch
• Width: 36.46 in
• Height: 42.37 Inch
• Voltage: 240 Volt
• Amperage: 125 Amp
• Material: Aluminium: Busbar
• Enclosure: 3R
• NEMA Size: 3R
• Sub Brand: METER-PAK
• Wire Size: AWG 1/0...600 kcmil 1 aluminium;AWG 1/0...600 kcmil 1 copper
• Bus Rating: 500 A
• Cable Entry: UG-OH
• Certifications: UL
• Conductor Size: 1/0 AWG-600 kcmil
• Enclosure Rating: 3R
• Number of Phases: 1 Phase
• Enclosure Material: Steel
• Size: 42.37 in
• Bypass Type: No Bypass
• Mounting: Surface
• Number of Jaws: 5
• Phase: 1 pH
• Special Features: Main Lugs;Aluminium: busbar
• Standard: UL LISTED
• Item Type: Meter Center;Ringless
• Breaker Type: QO/QO-VH/QOH
• Voltage Rating: 120/240 VAC
• Circuit Configuration: 1-Phase 3 Wire
• Bus Current Rating: 500 Ampere
• Bus Material: Aluminum
• Number of Sockets: 5
• Socket Current Rating: 125 Ampere
• Socket Cover Style: Ringless
• Service Type: Overhead/Underground
• Main Type: Main Lugs
• Meter Socket Rated Current: 125 A
• Number Of Meter Sockets: 5
• Product Or Component Type: Meter Center
• Meter Socket Type: ringless
• Product Certifications: UL Listed
• Service Feed Location: UG || OH
• Range Of Product: Meter-Pak
• [Ue] Rated Operational Voltage: 120/240 V AC
• Bus Rated Current: 500 A
• Main Rated Current: 400 A || 500 A
• Nema Degree Of Protection: NEMA 3R
• Product Mounting: surface
• Wiring Configuration: 3-wire
• Series: MP Series
• Feed Type: Overhead/Underground
• Hub Size: (2) A-L
• Cover Type: Ringless
• Terminal Type: Bus Bar/Main Lug
• Mounting Type: Surface
• Amperage Rating: 125 A
• Enclosure Type: NEMA 3R
• Jaw Quantity: 5
• Line Side Wire Range: AWG 1/0...600 kcmil 1 aluminium;AWG 1/0...600 kcmil 1 copper
• Number of Meter Positions: 5
• Standards: ARRA CompliantBuy American Act CompliantUL ListedEUSERC ApprovedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov
• Alternate Catalog Number: MPR55125
• ARRA Compliant: N
• Buy American Compliant: N
• Hub Type: (2) A-L
• Item Group: 00021
• UNSPSC: 39121102
• Dimensions: 39.46 in W x 7.28 in D x 42.37 in H
