Product Description

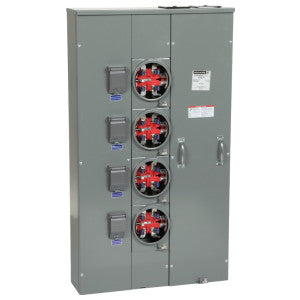

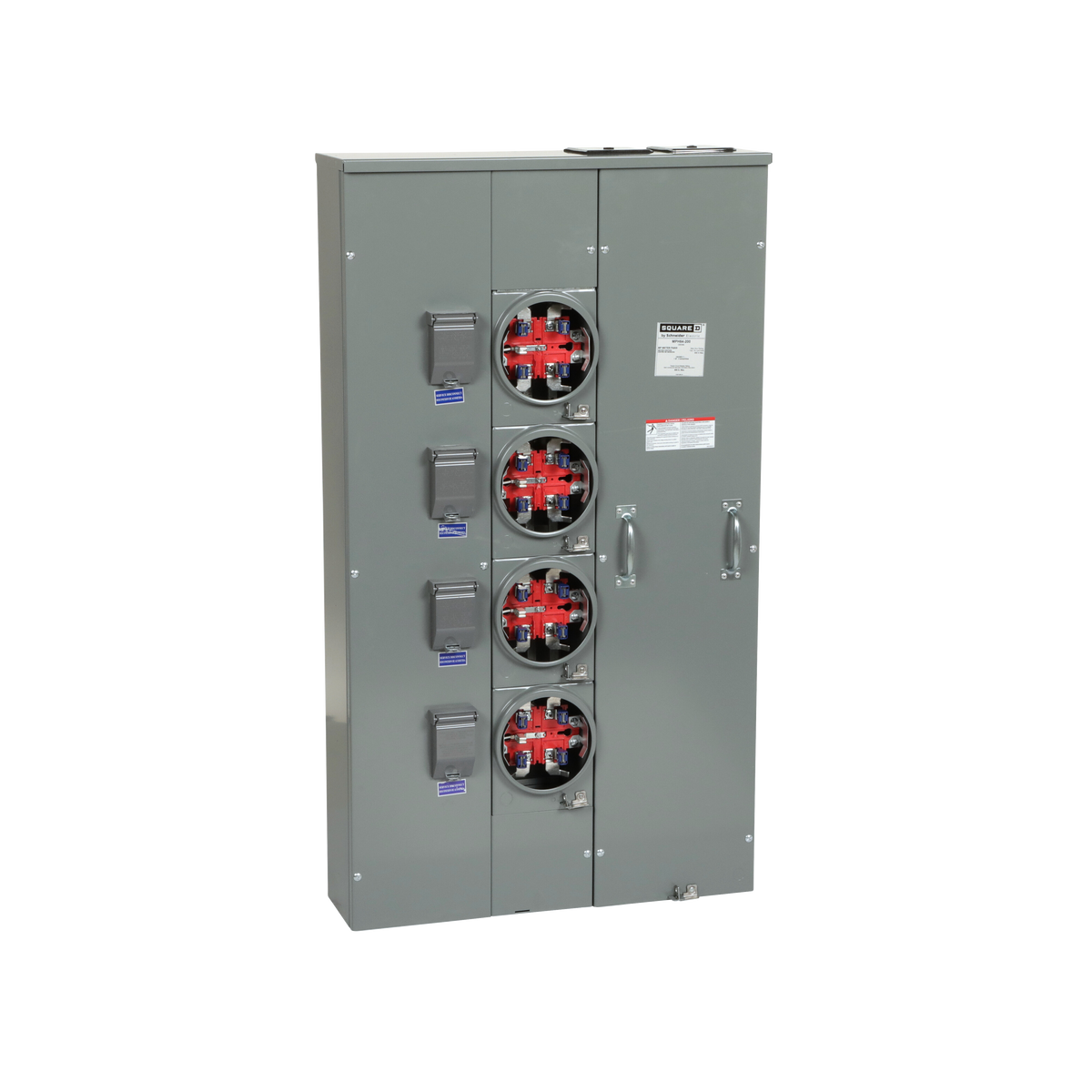

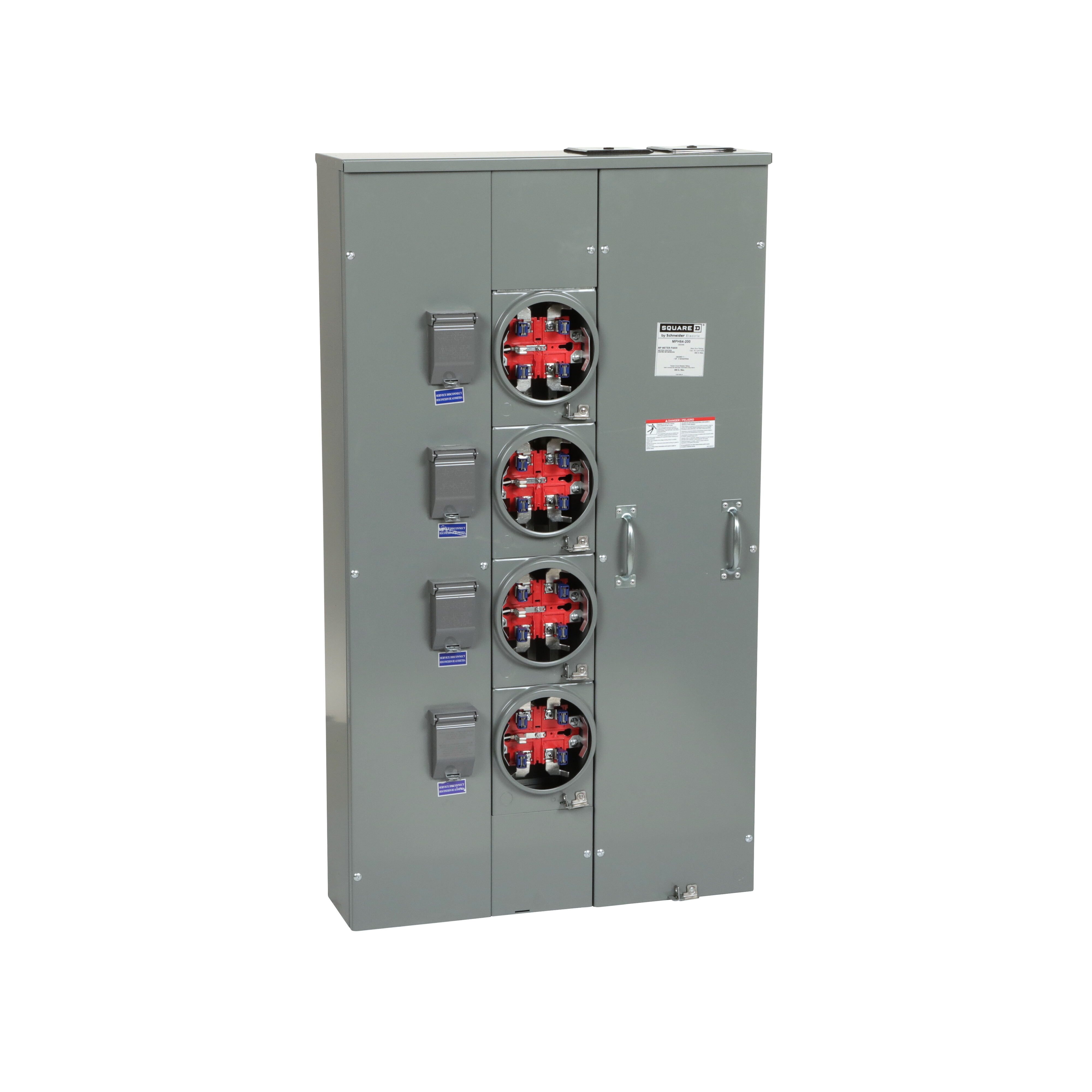

The Square D MPH64200 Meter Pak meter centers offer a wide range of multimetering applications. These meter centers have UL Listed indoor rainproof NEMA Type 3R construction which meets EUSERC standards. It has a ringless socket with a horn bypass and a 5th jaw. The maximum tenant main lugs amperage is 200 A with a 240 VAC single phase maximum.
- Aluminum main bus ampacity is 600 A
- Accepts 1/0 AWG to 600 kcmil copper or aluminum wire
- Four meter socket configurations available with options such as ring or ringless, 4 and 5 jaw, horn or lever, and jaw release
Product Highlights
The Square D MPH64200 meter center features a ringless socket, horn bypass, and a 5th jaw. It supports 200A max main lugs amperage at 240 VAC single phase.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: MPH64200
-
Country of Origin: Mexico
Technical Specifications
-
Type: Ringless;Meter Center
-
Brand: Square D
-
Voltage Rating: 120/240 VAC
-
Amperage: 200 Amp
-
Material: Aluminium: Busbar
-
Enclosure: 3R
-
NEMA Size: 3R
-
Sub Brand: METER-PAK
-
Wire Size: AWG 1/0...600 kcmil 1 aluminium;AWG 1/0...600 kcmil 1 copper
-
Bus Rating: 600 A
-
Cable Entry: OH-UG
-
Certifications: UL
-
Conductor Size: 1/0 AWG-600 kcmil
-
Enclosure Rating: 3R
-
Number of Phases: 1 Phase
-
Country of Origin: MX
-
Enclosure Material: Steel
-
Bypass Type: Horn bypass
-
Mounting: Surface
-
Phase: 1
-
Special Features: Main Lugs;Aluminium: busbar
-
Standard: UL Listed
-
UPC: 785901410522
-
GTIN: 00785901410522
-
Item Type: Ringless;Meter Center
-
Breaker Type: QOM2-MM/QOM2-MVH
-
Circuit Configuration: 1-Phase 3 Wire
-
Bus Current Rating: 600 Ampere
-
Number of Sockets: 4
-
Socket Current Rating: 200 Ampere
-
Socket Cover Style: Ringless with Horn Bypass
-
Number of Jaws: 5
-
Service Type: Overhead/Underground
-
Main Type: Main Lugs
-
Meter Socket Rated Current: 200 A
-
Number Of Meter Sockets: 4
-
Product Or Component Type: Meter Center
-
Meter Socket Type: ringless
-
Product Certifications: UL Listed
-
Service Feed Location: UG || OH
-
Range Of Product: Meter-Pak
-
[Ue] Rated Operational Voltage: 120/240 V AC
-
Bus Rated Current: 600 A
-
Main Rated Current: 400 A || 600 A
-
Nema Degree Of Protection: NEMA 3R
-
Product Mounting: surface
-
Awg Gauge: AWG 1/0...600 kcmil 1 aluminium || AWG 1/0...600 kcmil 1 copper
-
Wiring Configuration: 3-wire
-
Item [Specifications]: MP Meter Pak,meter center,four ringles
-
Phase [Specifications]: 1 phase
-
Voltage [Specifications]: 120/240 V AC
-
Standards [Specifications]: UL Listed
-
Wire Size [Specifications]: AWG 1/0...600 kcmil 1 aluminium || AWG 1/0...600 kcmil 1 copper
-
Bypass Type [Specifications]: horn bypass
-
Bus Material [Specifications]: aluminium busbar
-
Mounting Style [Specifications]: surface
-
Number of jaws [Specifications]: 5
-
Bus Rated Current [Specifications]: 600 A
-
Meter Socket Type [Specifications]: ringless
-
Enclosure Material [Specifications]: steel
-
Circuit Breaker Type [Specifications]: Meter-Pak
-
Enclosure NEMA Rating [Specifications]: NEMA 3R
-
Main Circuit Breaker or Main Lug [Specifications]: Main Lugs
-
Alternate Catalog Number: MPH64200
-
Amperage Rating: 200 A,400 A-600 A,600 A
-
Number of Meter Positions: 4
-
UNSPSC: 39121102
-
NEMA Rating: 3R
-
AWG Range: AWG 1/0...600 kcmil
-
No. of Jaws: 5
-
No. of Wires: 3
-
Rated Current: 600A
-
Rated Voltage: 120/240V ac
-
Size: 29.44 Inch W x 8.25 Inch D x 52 Inch H
