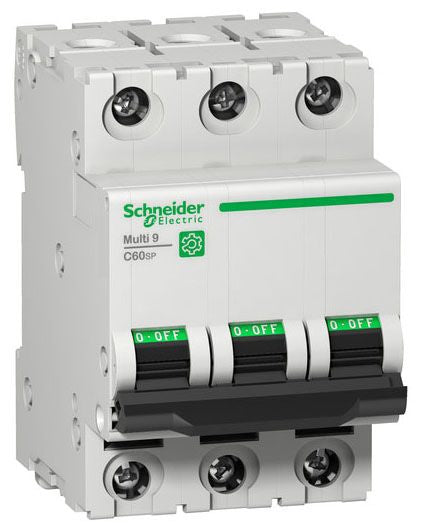

Square D M9F22340 Multi9 C60Sp 3P C 40A Mcb

Product Description

Square D M9F22340 Multi9 C60Sp 3P C 40A Mcb is designed for effective electrical circuit protection. This miniature circuit breaker features a thermal-magnetic mechanism, ensuring reliable performance in diverse electrical applications.

• Rated current of forty amps.
• UL 1077 compliant with dual approvals including CSA C22.2.
• Wide voltage rating of two hundred forty to four hundred forty volts AC, suitable for various installations.

Product Highlights

Ideal for use in residential, commercial, and industrial settings. The circuit breaker operates efficiently under standard voltage conditions and is compatible with DIN rail mounting.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Brand: Square D

Technical Specifications

• Type: Thermal-Magnetic
• Voltage Rating: 240/415/440 Volt AC 50/60 Hertz
• Current Rating: 40 Amp
• Number of Poles: 3
• Interrupting Rating: 10 Kiloamp
• Wire Size: 18 to 3 AWG (Flexible), 18 to 2 AWG (Rigid)
• Size: 2.13 Inch Width x 2.83 Inch Depth x 3.19 Inch Height
• Approval: UL 1077, CSA C22.2, CCC, GB 14048.2
