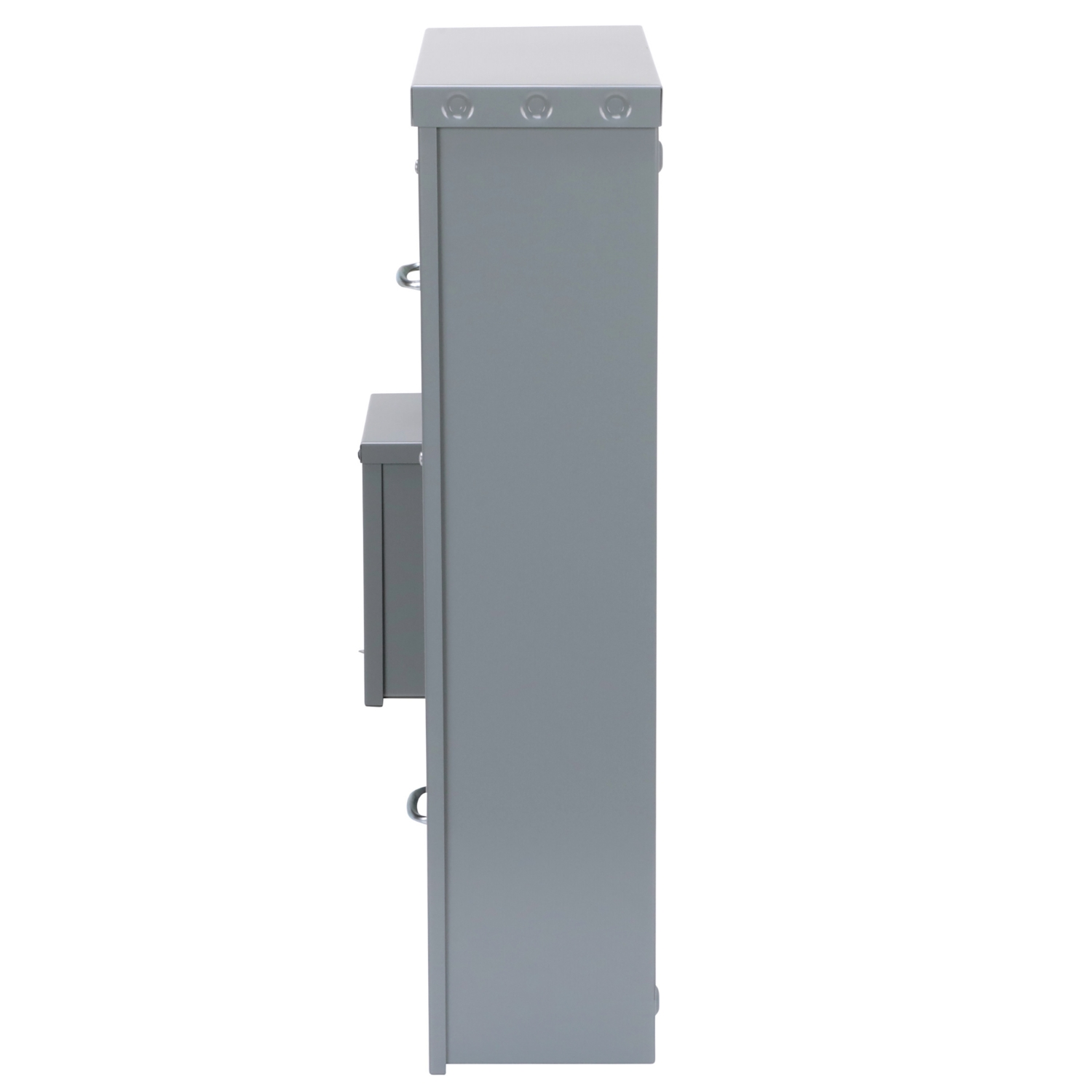

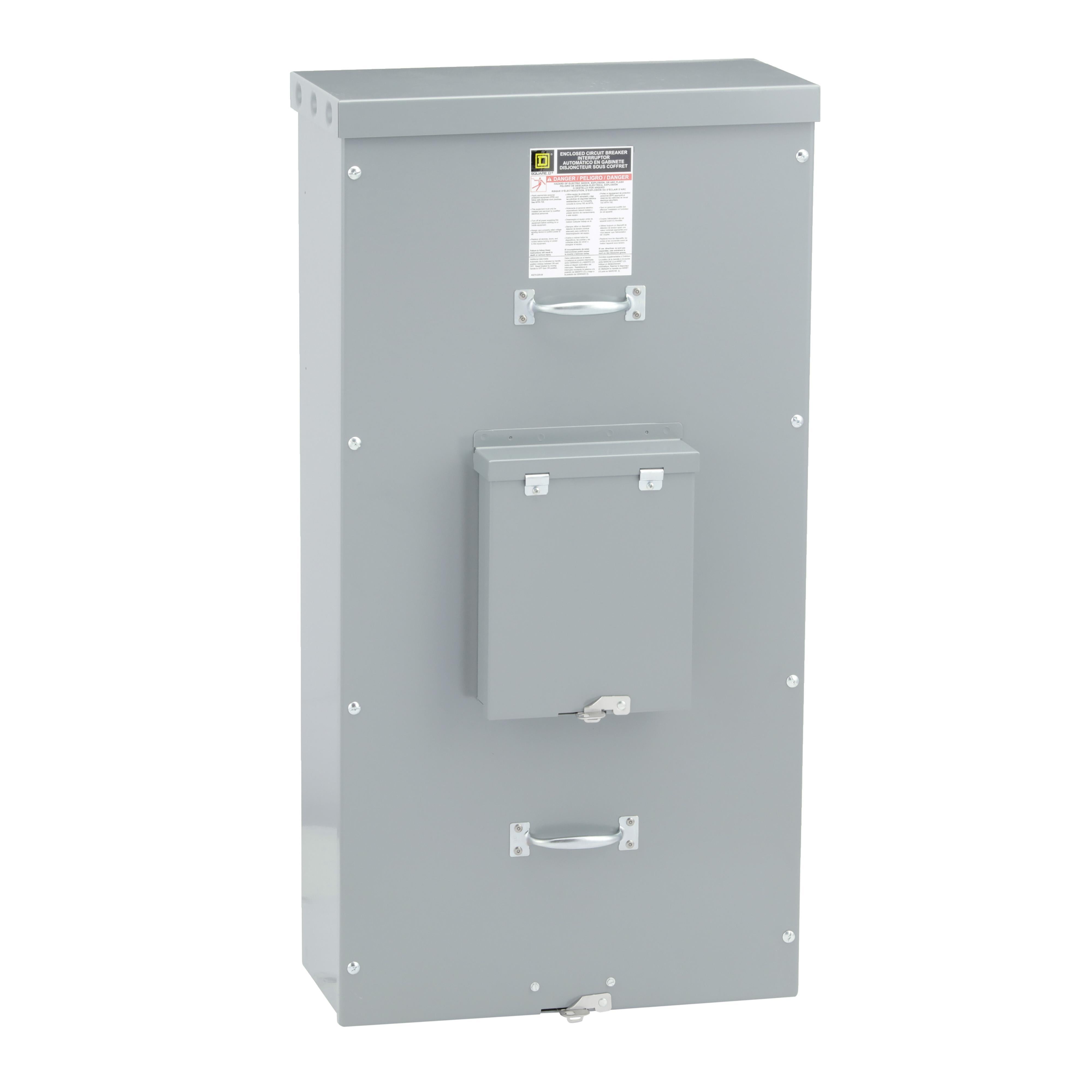

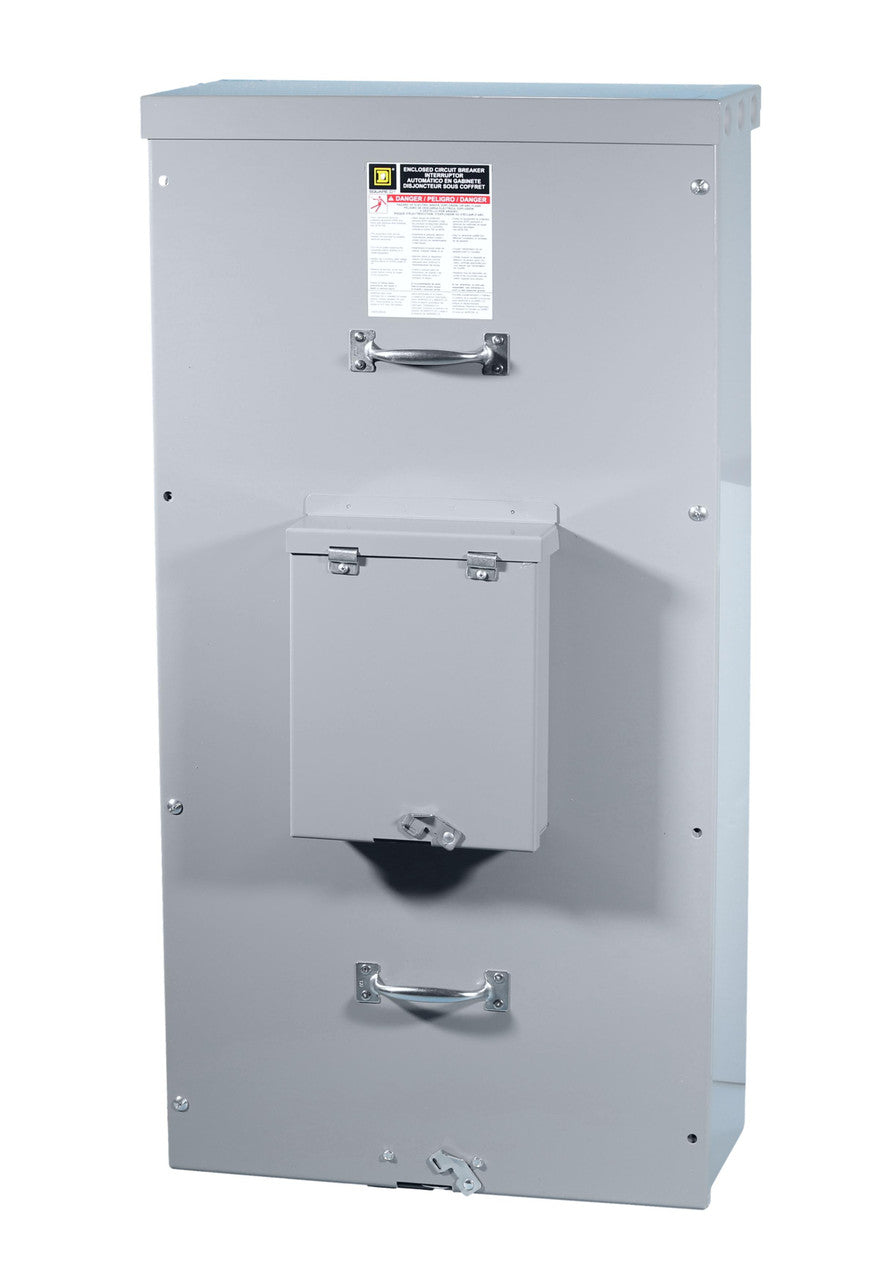

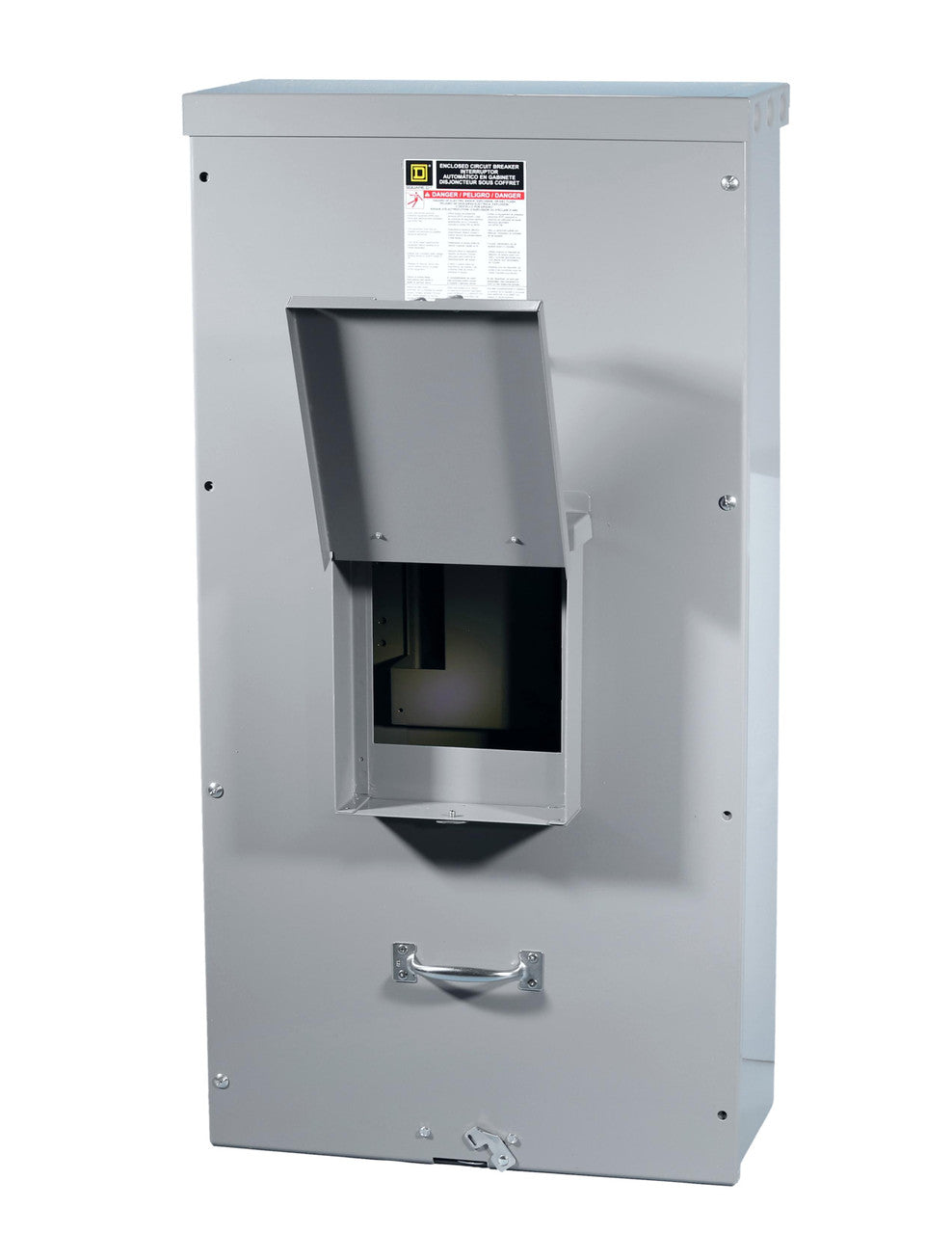

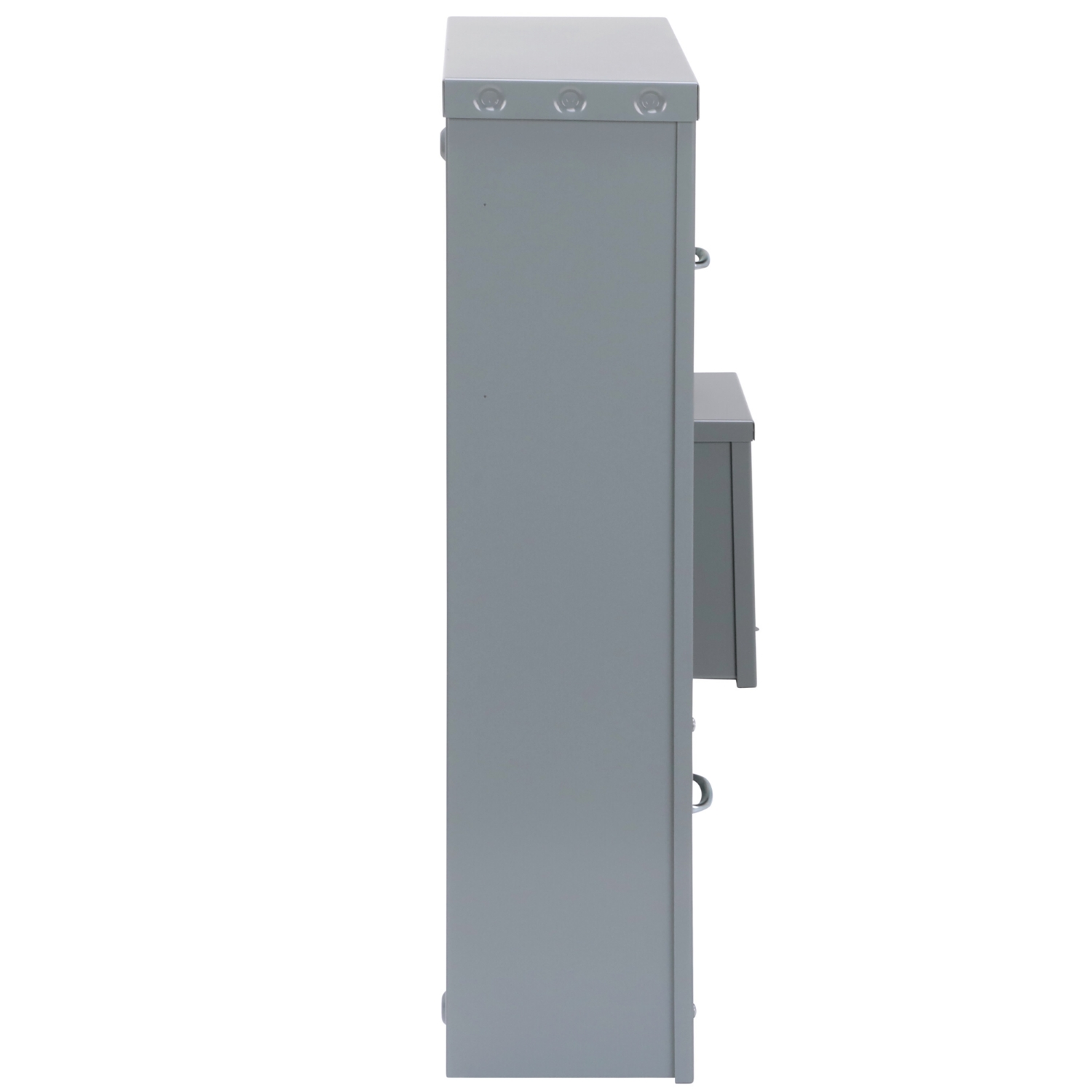

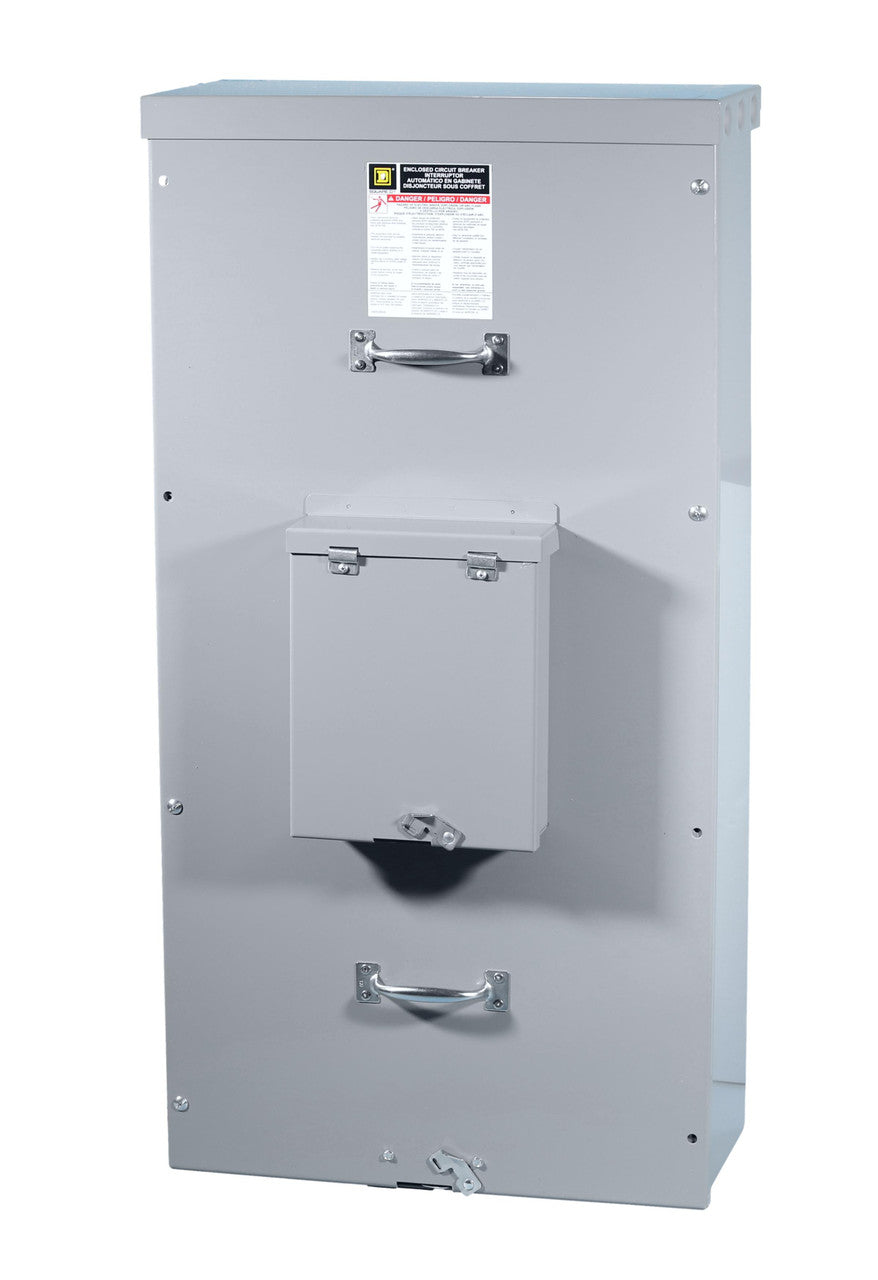

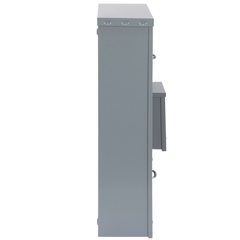

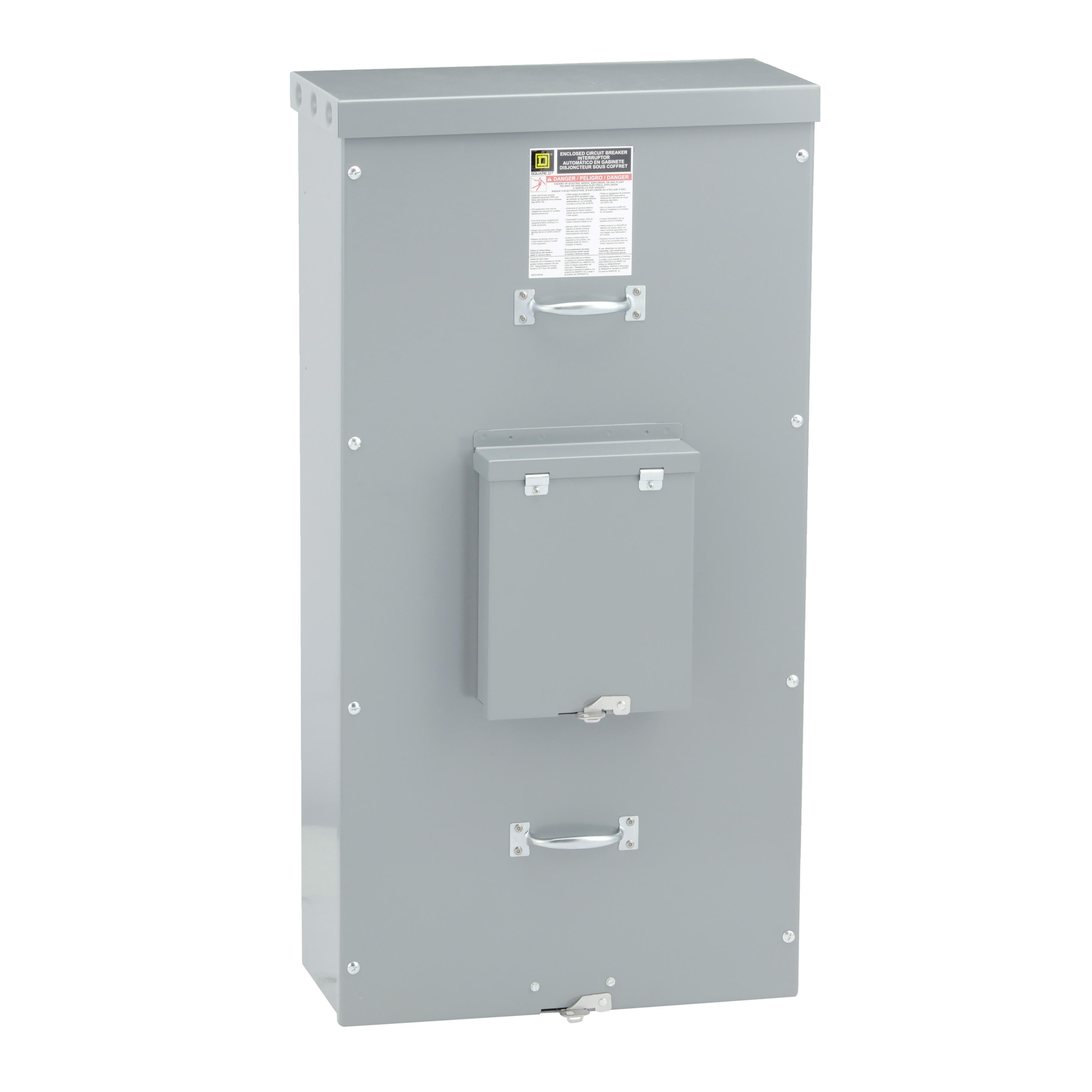

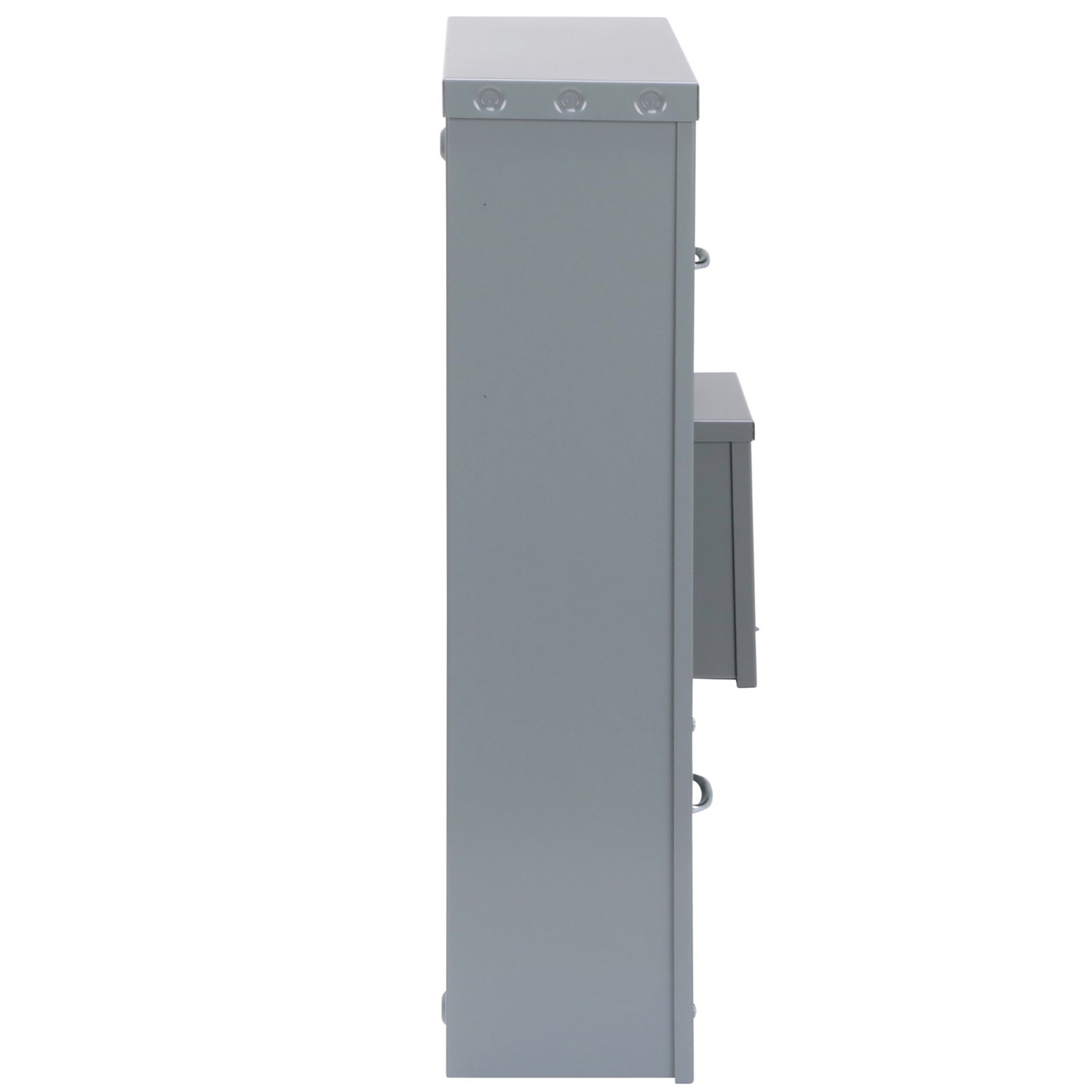

Square D M800R N3R MG and MJ Circuit Breaker Enclosure

Product Description

The Square D M800R N3R MG and MJ Circuit Breaker Enclosure is designed for PowerPact circuit breakers H- through Q-frame and is cULus listed. Suitable for service entrance equipment when a neutral assembly is installed. It accepts 80% rated circuit breakers and requires field-cut openings. Complies with UL & CSA certifications.

• PowerPact M, Molded Case Circuit Breaker Enclosure
• Accepts 300A to 800A
• NEMA TYPE 3R enclosure made from steel

Product Highlights

The Square D M800R is a steel NEMA 3R enclosure for PowerPact M circuit breakers, supporting 300A to 800A, and certified by UL & CSA.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: M800R
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: M800R
• Brand: Square D
• Manufacturer: Square-D / Schneider
• Type: MGL-MJL-PGL-PJL-PKL-PLL
• Depth: 247.65 mm
• Width: 533.4 mm
• Height: 1025.52 mm
• Length: 247.65 mm
• Current: 800 Amp
• Amperage: 300 to 800 A
• Enclosure Material: Steel
• Sub Brand: SQUARE D
• Trip Range: 300...800 A
• Product UPC: 78590165851
• 12-Digit UPC: 785901658511
• Applications: CIRCUIT BREAKER M 2P-CIRCUIT BREAKER P 3P
• Certifications: CSA,UL
• Number of Poles: 2P,3 Pole
• Line Rated Current: 300-800 A
• Circuit Breaker Type: PJL || MGL || PKL || MJL || PLL || PGL
• Enclosure Type: TYPE 3R
• Circuit Breaker Frame: PowerPact M
• Country of Origin: Mexico
• Application: Circuit breaker M 2P;circuit breaker P 3P
• Enclosure: NEMA 3R
• Voltage: 600VAC
• Poles Description: 2P || 3P
• Phase: 2-3 Phase
• Mounting Type: Surface
• Nema Rating: 3R
• For Use With: 2 Pole Circuit Breaker, 3 Pole Circuit Breaker
• Standards: RoHS, REACh
• Material: Steel
