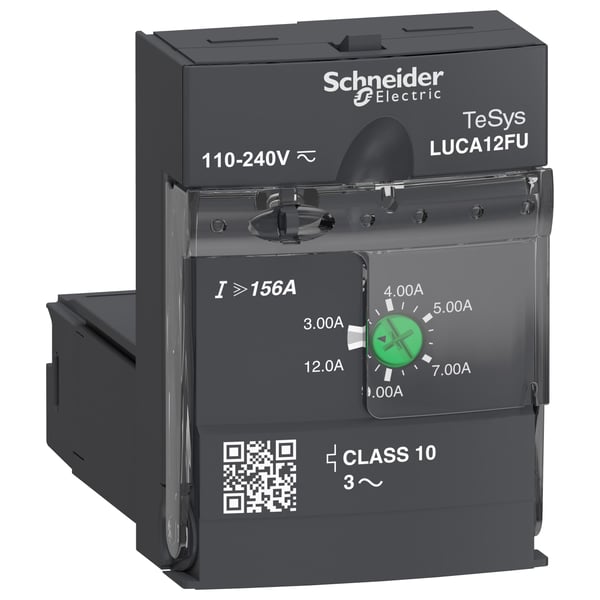

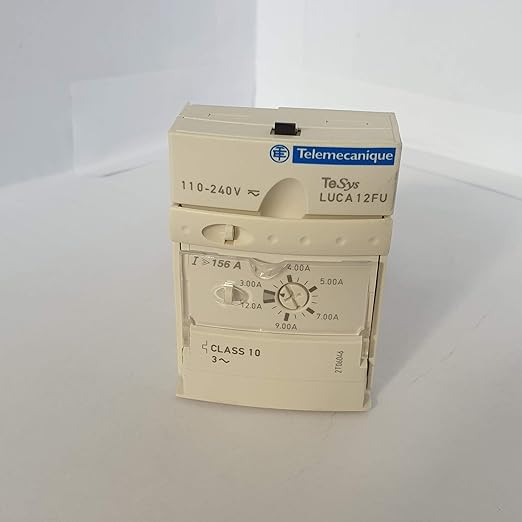

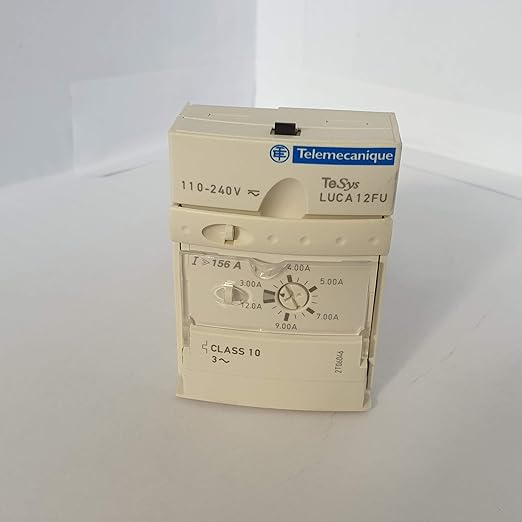

SQUARE D LUCA12FU Standard Control Unit 3-12A

Product Description

The Square D LUCA12FU is a standard control unit used for motor control in industrial settings. This Class 10 control unit features thermal overload protection and can be adjusted within a range of three to twelve amperes. It is suitable for 3-phase motors and allows for easy installation with its plug-in mounting design. This unit is compatible with LUFC00 and LUFN communication modules.

• Thermal Overload Class: Class 10
• Thermal Protection Adjustment Range: 3-12A
• Control Circuit Voltage: 110-240V AC, 110-220V DC

Product Highlights

Efficient motor control with reliable protection features.

Product Information

Standard Information

• Brand: Schneider Electric
• MPN: LUCA12FU

Technical Specifications

• Product Group: IEC Starters
• Category: Motor Control
• Family: LUC
• Type class: LUC
• Phase: 3 ph
• Sub category: IEC Starters
• Condition: NEW
• Series: LUCA
• For Use With: LUFC00 and LUFN Communication Module
• Voltage: 690 VAC
• Frequency: 50/60 Hz
• Operating Temperature: -25 to 70 deg C
• Full Load Current: 3 to 12 A
• Coil Voltage: 110/240 VAC/VDC
• Mounting: Front Side Mount, Plug-In
