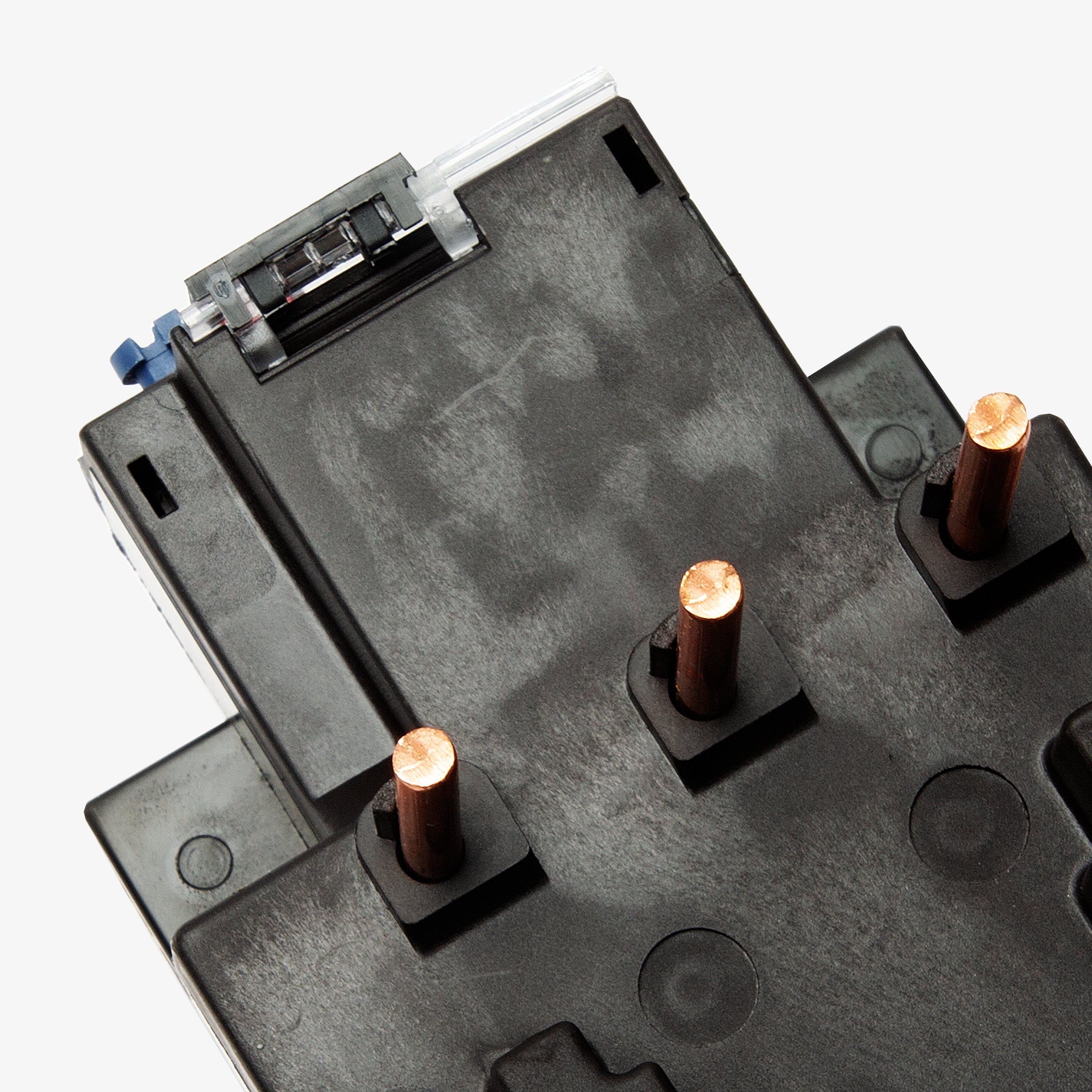

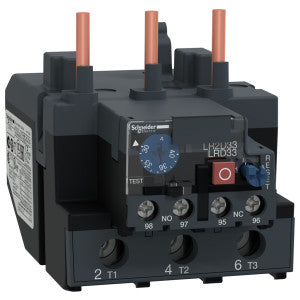

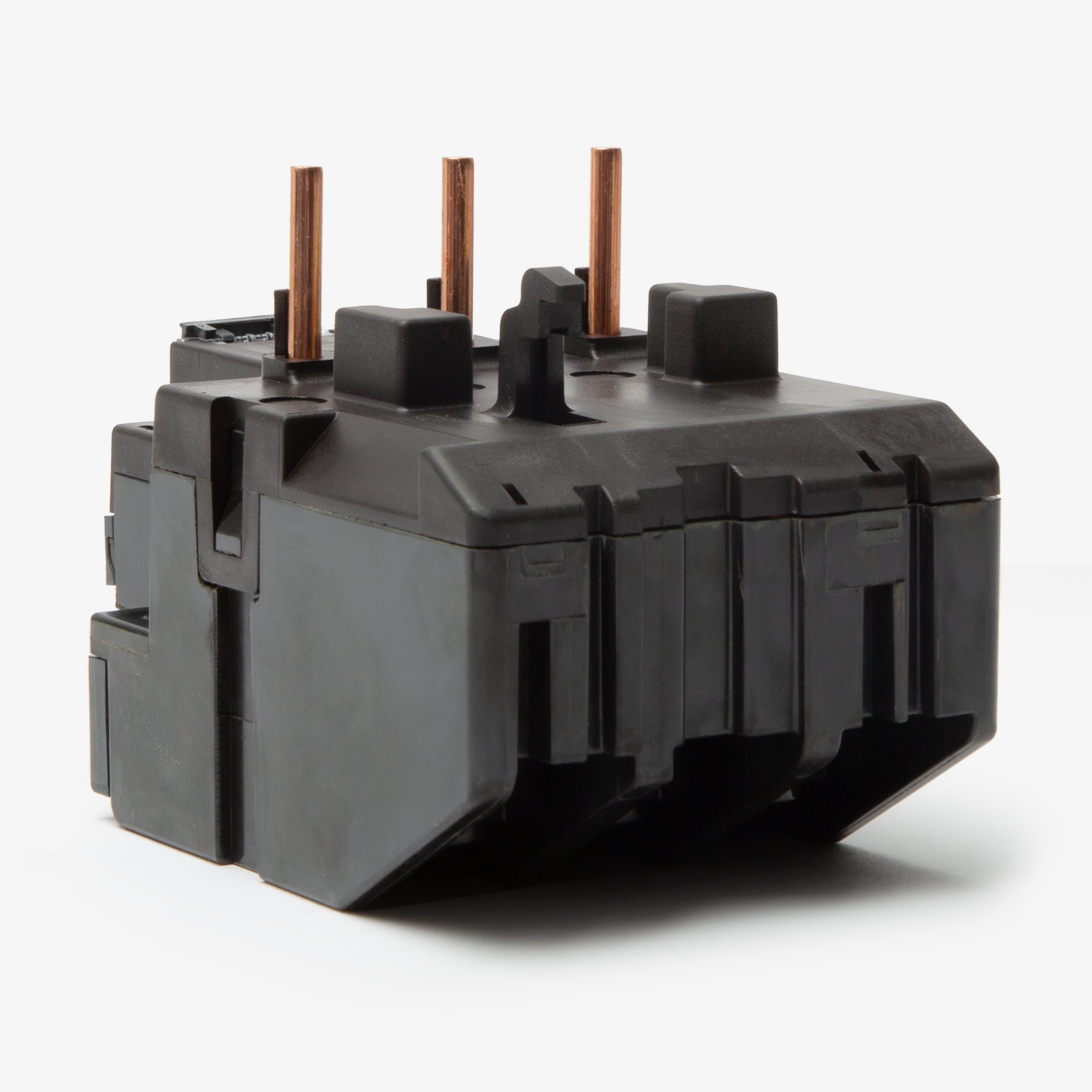

SQUARE D LRD3355 Overload Relay 30-40A

Product Description

The SQUARE D LRD3355 Overload Relay is designed for protecting motors from overload conditions. This relay features a bimetallic design and operates effectively in single-phase applications. It allows easy trip adjustments and comes equipped with automatic and manual reset functions. The relay is temperature compensated to ensure proper operation across varying ambient conditions.

• Single-phase bimetallic construction
• Trip settings adjustable within 30 to 40 amperes
• Suitable for contactor mounting with IP20 enclosure

Product Highlights

Reliable protection against motor overload with simple installation and maintenance.

Product Information

Standard Information

• Brand: Schneider Electric
• Series: D-Line

Technical Specifications

• MPN: LRD3355
• UPC: 785901519935
• Connection Type: Screw Clamp
• Use With: LC1D40-D80
• Amperage Rating: 30 to 40 A
• IP Rating: IP20
• Number of Poles: 3
• Height: 81 mm
• Width: 70 mm
• Depth: 115 mm
