Product Description

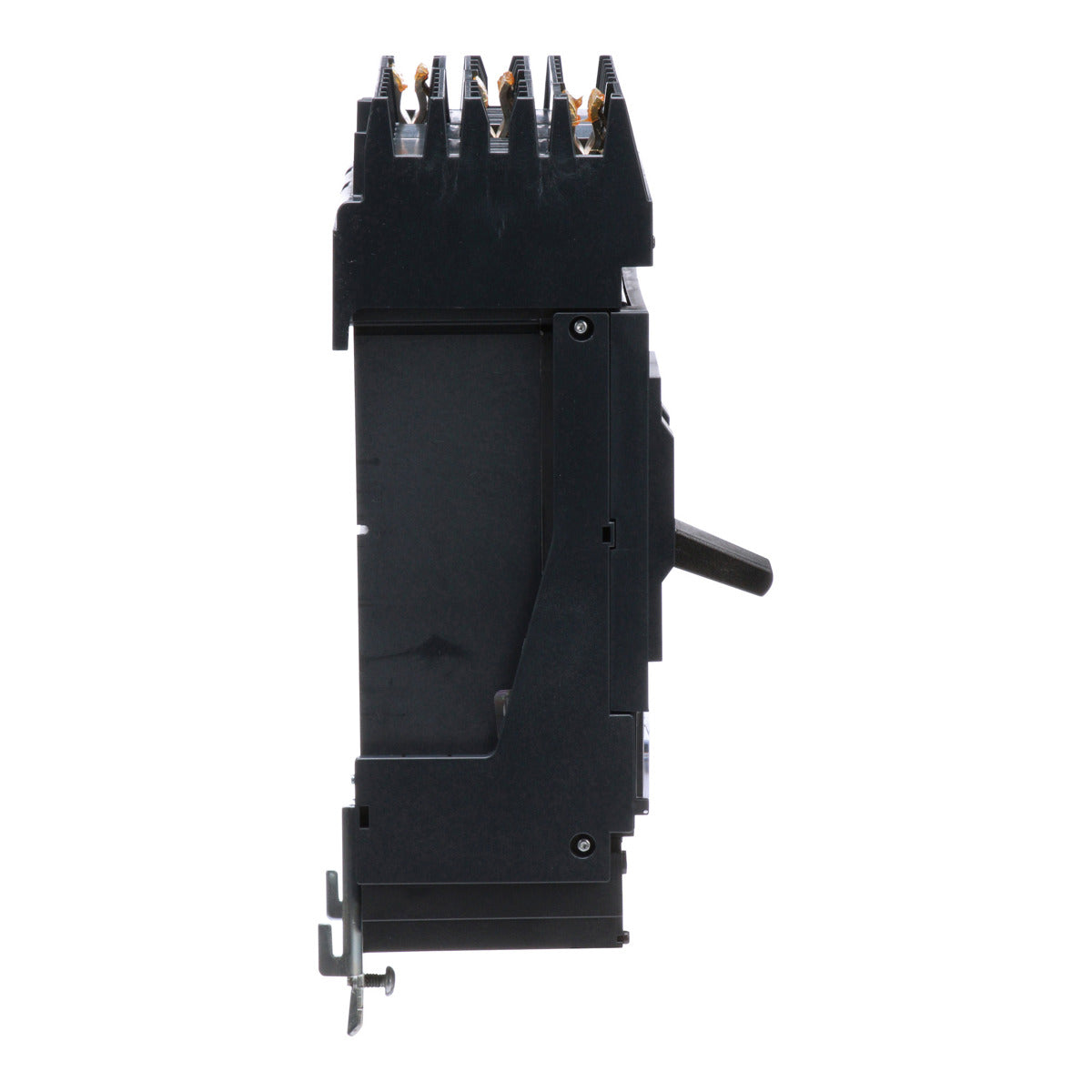

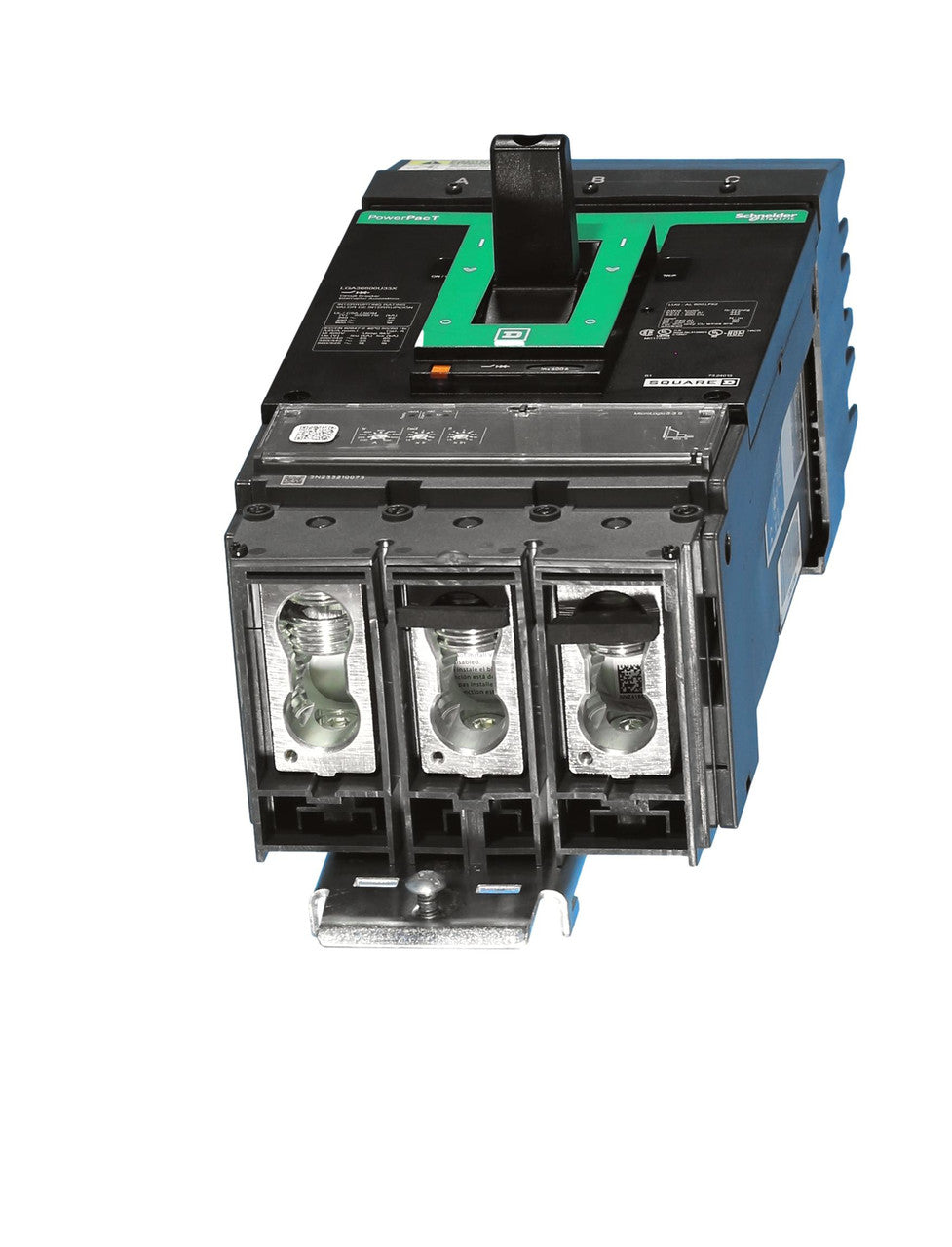

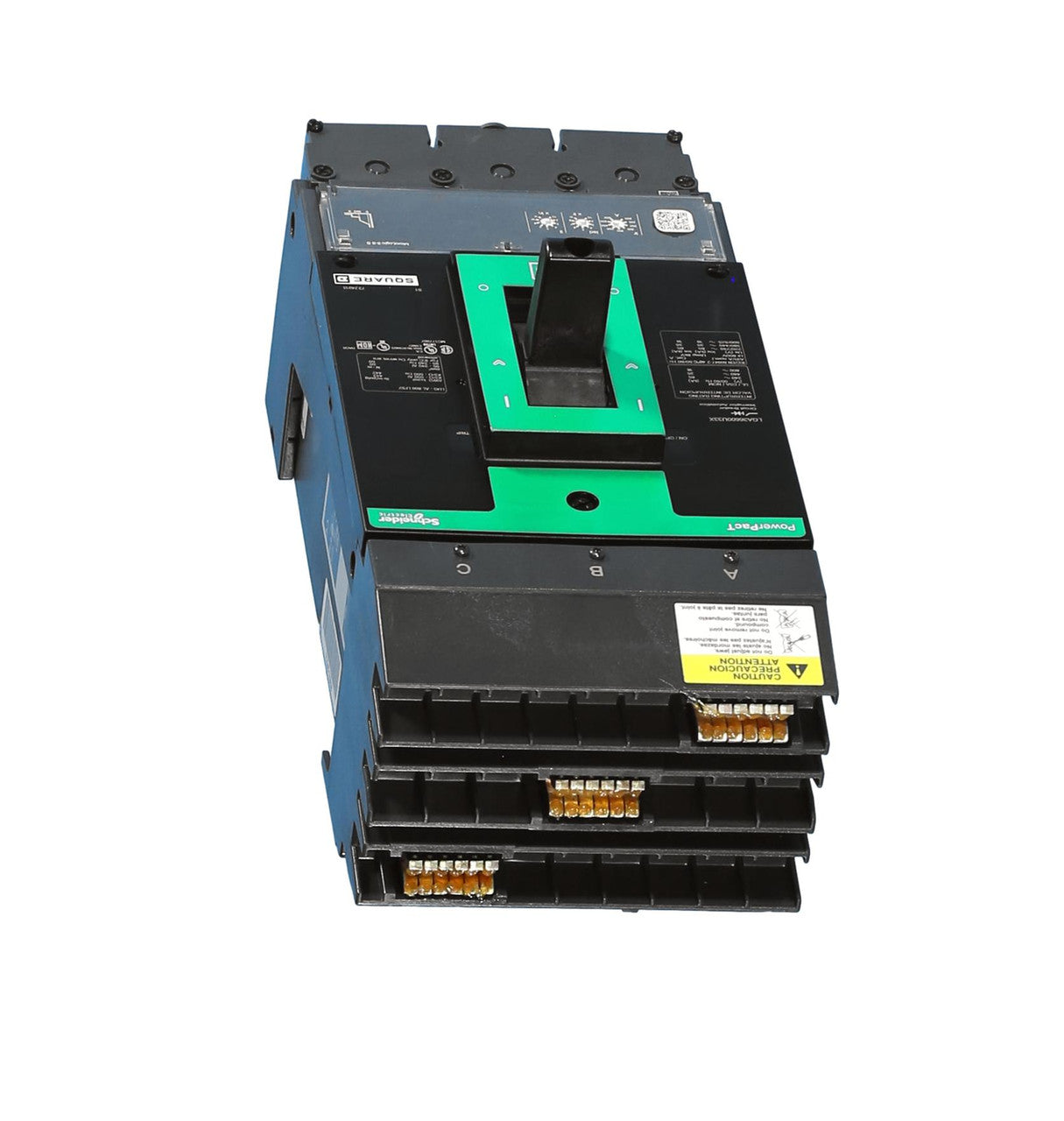

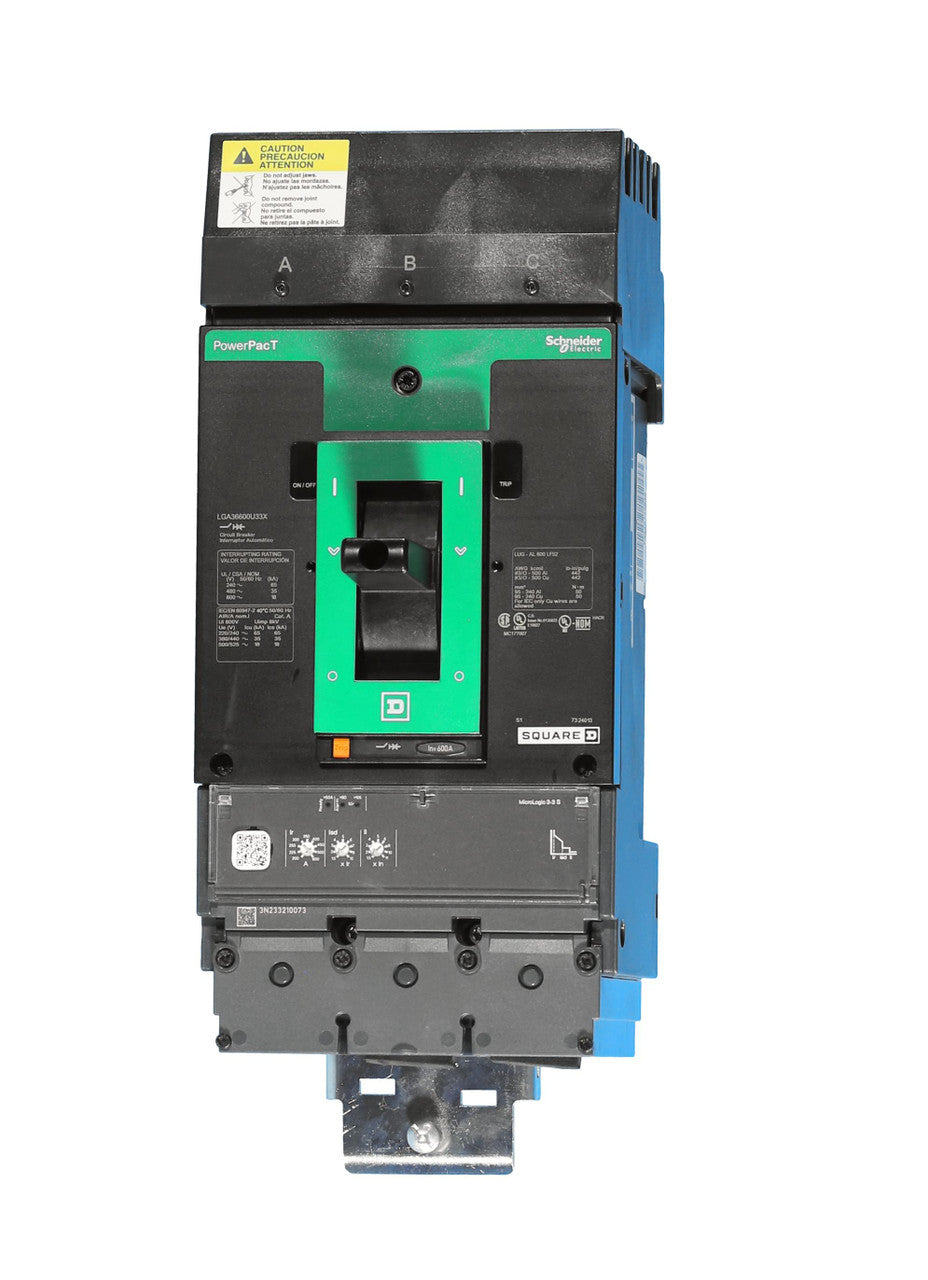

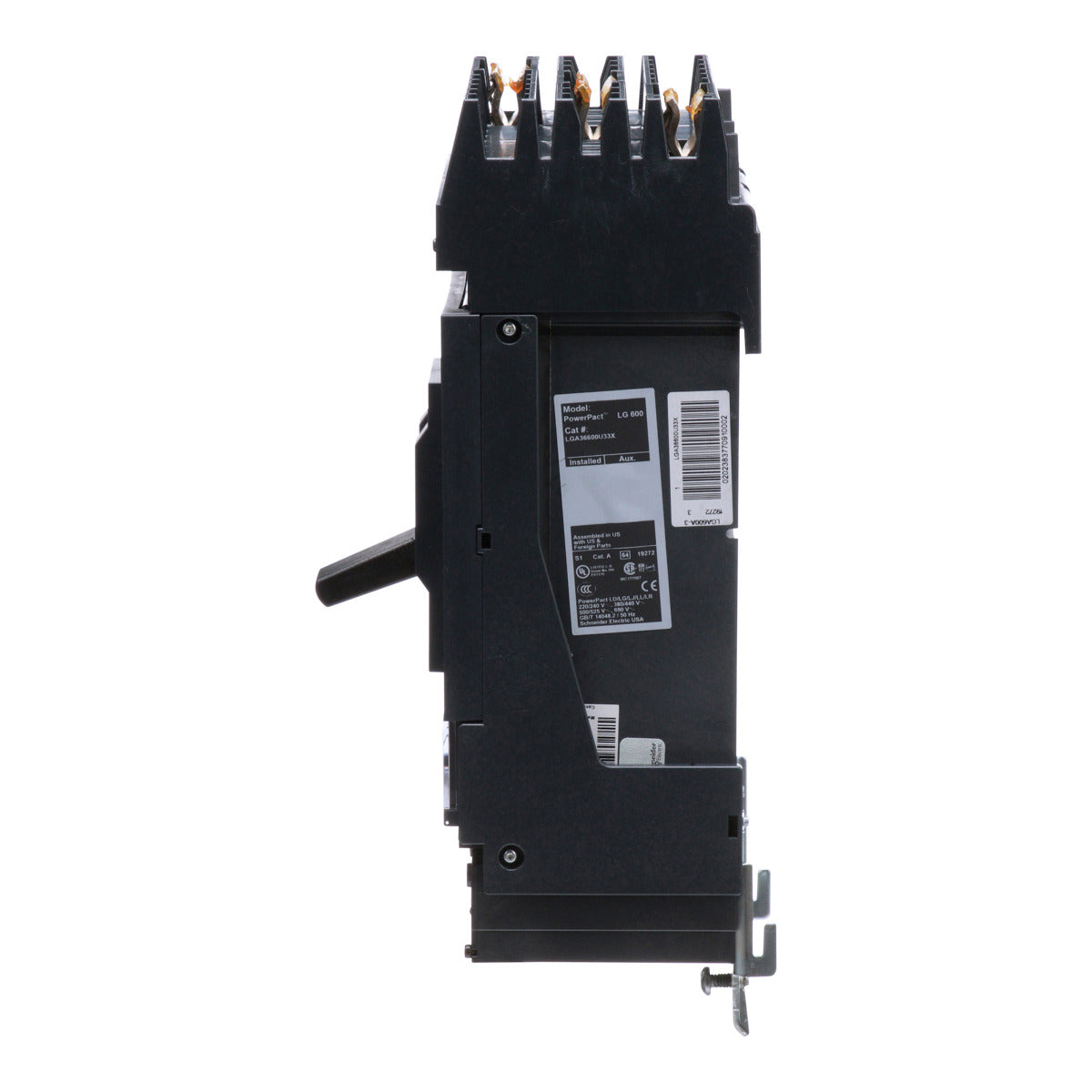

The SQUARE D LGA36600U33X PowerPacT L-Frame circuit breaker protects electrical systems from damage caused by overloads and short circuits. It features dual-break rotating contacts and an integral push-to-trip button. This 3-pole, 600A circuit breaker has an interrupting rating of 18kA at 600VAC and provides MicroLogic Standard with a 3.3S trip unit and an LSI function.
- Protects electrical systems from damage caused by overloads and short circuits
- Equipped with dual-break rotating contacts
- Complies to UL, CSA, NOM, and IEC standards and are CE marked
Product Highlights
PowerPacT L-Frame circuit breaker with MicroLogic 3.3S trip unit and I-Line terminations, ideal for power distribution in demanding industrial environments.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: LGA36600U33X
-
Country of Origin: United States
Technical Specifications
-
Type: CIRCUIT BREAKER,CURRENT LIMITER
-
Brand: Square D
-
Frame: G
-
Range: PowerPact
-
Voltage: 600 Volt
-
Amperage: 600 Amp
-
Standard: CSA,IEC 60947-2,NEMA,NOM-003-SCFI-2000,UL
-
Trip Type: ELECTRONIC, STANDARD, MICROLOGIC 3.3 S, LSI
-
Wire Size: AWG 3/0...500 kcmil aluminium/copper)2
-
Trip Range: 600 A
-
Control Type: Toggle
-
Mounting Type: I-Line Bracket)
-
TC Connection: AWG 3/0...500 KCMIL ALUMINIUM/COPPER)2,I-LINE CONNECTION LINE-LUGS LOAD
-
Terminal Type: AL600LF52K3
-
Certifications: CSA,NOM,UL
-
Conductor Size: 3/0 AWG-500 kcmil
-
Number of Poles: 3 Pole
-
Interrupt Rating: 18, 35, 65 kAIC
-
Line Rated Current: 600-600 A
-
Catalog Number: LGA36600U33X
-
Manufacturer: Schneider Electric
-
UPC: 785901093374
-
GTIN: 00785901093374
-
Item: Circuit breaker,PowerPact L,I-Line,Mi
-
Features: Mercury Free; PVC Free
-
Phase Connection: ABC
-
AC Voltage Rating: 600V AC
-
Terminal Connection: I-Line, Lug
-
Circuit Breaker Actuator: toggle
-
Circuit Breaker Mounting Style: I-Line Bracket
-
Series: LGA
-
Part Number: LGA36600U33X
-
AIC Rating: 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC
-
Mounting Style: I-Line
-
Trip Technology: Electronic Trip
-
Trip Function Code: LSI
-
Trip Function: Long-Time, Short-Time, Instantaneous
-
Trip Adjustability: Adjustable
-
Trip Unit Model: MicroLogic 3.3S
-
Wire Gauge: (2) 2/0 AWG-500 kcmil (Al/Cu)
-
Max Wire: 500 kcmil
-
Min Wire: 2/0 AWG
-
Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Communication Module
-
Accessories: MicroLogic 3.3S Trip Unit
-
Standards: CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489
-
Approval: CCC, CE, CSA, IEC, NEMA, NOM, UL, UKCA
-
Temp Rating: -25C to 70C
-
Construction Features: HACR Rated, Current Limiting, True RMS Sensing, Mercury Free, PVC Free, Double-Break Rotary Contact Structure, 80% Rated
-
Poles: 3
-
Amps: 600A
-
Mounting: Plug-On
-
Frequency Rating: 50/60 Hz
-
Temperature Rating: 122 deg F
