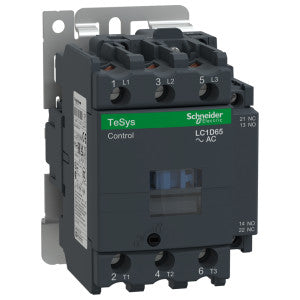

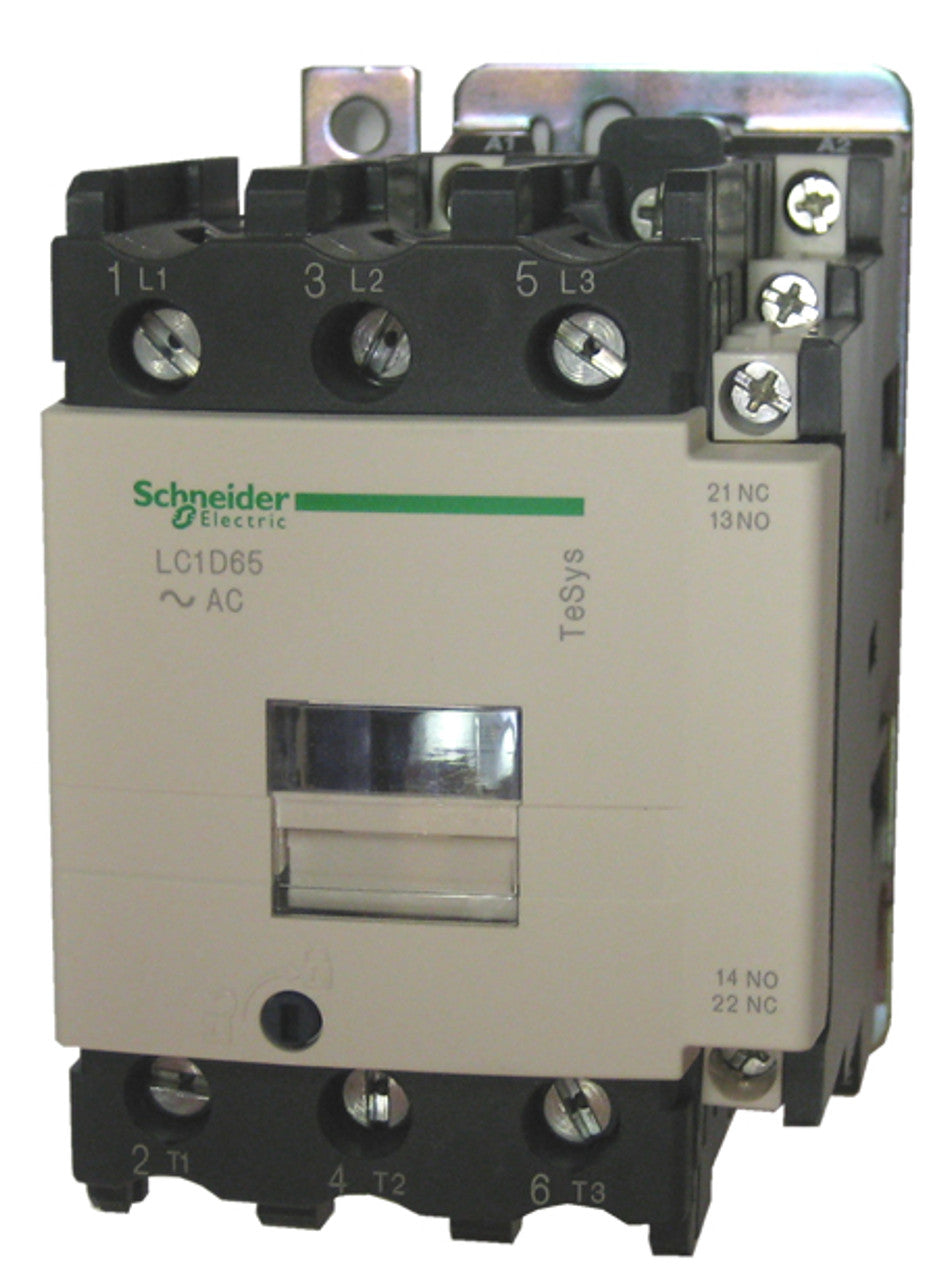

SQUARE D LC1D65G7 Telemecanique TeSys Contactor 65 AMP 120VAC

Product Description

The Square D Telemecanique LC1D65G7 is an IEC three pole contactor rated for sixty-five amps with a one hundred twenty volt alternating current coil. It includes one normally open and one normally closed auxiliary contact. This product is ideal for use in control systems and motor starters across multiple applications. It ensures quick installation while maintaining a compact design.

• Suitable for inductive motor applications up to one hundred fifty full-load amps and resistive loads up to two hundred amps.
• Provides motor control and overload protection for motors rated up to one hundred horsepower at four hundred eighty volts or one hundred twenty-five horsepower at six hundred volts.
• Features IP20 rated touch-safe terminals with markings for North American and international usage.

Product Highlights

This contactor is designed for robust performance in motor control tasks, ensuring safety and reliability in various electrical environments.

Product Information

Standard Information

• Brand: SQUARE D
• MPN: LC1D65G7

Technical Specifications

• AMP Rating: 65A AC-3
• H.P. at 460 Volt: 50 H.P.
• Coil Voltage: 120 Volt 50/60Hz
• Base Mounted Auxiliaries: 1 N.O. / 1 N.C.
• Termination: Screw
• Series: TeSys D
• Application: motor control, resistive load
• No. of Poles: 3
• Height: 127 mm
• Width: 75 mm
• Depth: 119 mm
• Weight: 3.09 kg
