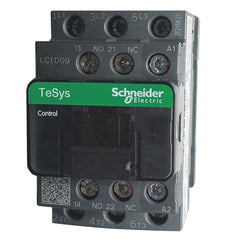

SQUARE D LC1D09B7 3-Pole Contactor 9 AMP

Product Description

The SQUARE D LC1D09B7 is a 3-pole contactor rated at 9 Amps AC-3, suitable for various industrial applications. This model features a coil voltage of 24 volts AC and includes auxiliary contacts enhancing its functionality. It is designed for easy installation on a standard 35MM DIN rail and can be utilized for motor operations up to 5 horsepower at 460 volts in three-phase systems.

• Reliable performance with long mechanical and electrical life.
• Integrated auxiliary contacts for improved operational capabilities.
• Versatile mounting options for flexible installation.

Product Highlights

This contactor is ideal for HVAC, motor control, and automation systems, providing dependable operation and straightforward integration.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: LC1D09B7

Technical Specifications

• AMP Rating: 9 AMP AC-3, 20 AMP AC-1
• Coil Voltage: 24 volts AC
• Horsepower Ratings: 2 H.P. at 230 volts, 5 H.P. at 460 volts
• Auxiliaries: 1 normally open (NO) & 1 normally closed (NC)
• Terminals: Screw
• Contact Current Rating: 9 A
• Control Voltage: 24 V
• Dimensions: 3.03 inches H X 1.77 inches W X 3.39 inches D
• Enclosure Type: IP2x
• Maximum Operating Temperature: 60 °C
• Minimum Operating Temperature: -5 °C
• Number of Poles: 3
• Power Rating: 5.5 kW
• Primary Type: Contactor
• Series: TeSys Deca Series
• Supply Voltage: 440 VAC
• Temperature Operating Range: -5 to 60 C
• Terminal Type: Box Clamp
• Type: IEC Contactor
• UPC Code: 785901206927
• Voltage Rating: 600 V
