Square D L100WDR2M4 Limit Switch 600V 10Amp Type L +Options

Product Description

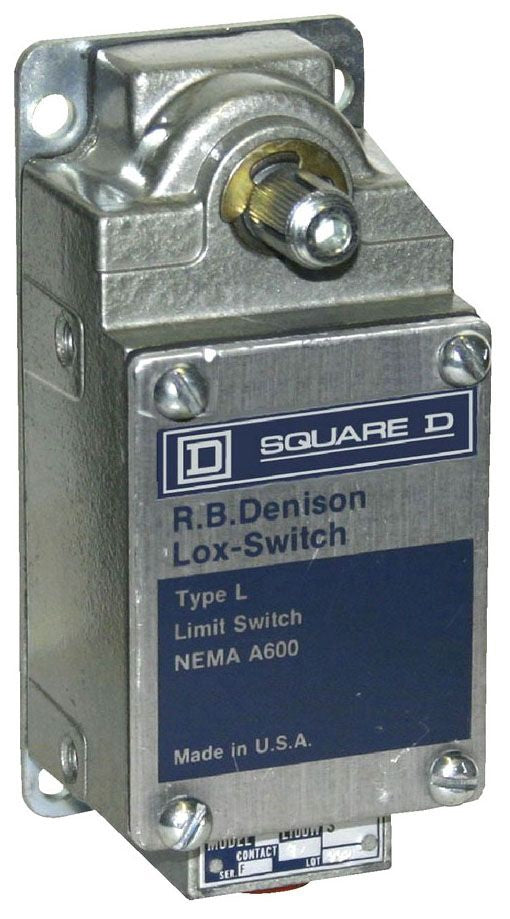

Square D Co. L100WDR2M4 is a limit switch designed for reliable performance in severe duty applications. This limit switch operates at six hundred volts and handles a maximum current of ten amps. It features a two normally open contact configuration, making it suitable for various industrial uses.

• 600 VAC 20 Ampere and 600 VDC 5 Ampere contact rating.
• NEMA 1/2/4/12/13, IP65, IP66, IP67 rated enclosure.
• -10 to 185 degrees Fahrenheit operating temperature range.

Product Highlights

This limit switch provides a spring return, snap-action operation for precise control. It includes a rotary lever actuator and a sturdy cast aluminum body. Designed for both durability and functionality, it meets various industry compliance standards.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Model: L100W

Technical Specifications

• Connection Type: 1/2 Inch NPT Conduit (Metric Thread)
• Operating Force: 190 Oz-Inch
• Total Travel: 80 Deg
• Pretravel: 17 Deg
• Differential Travel: 11 Deg
• Body Material: Cast Aluminum
• Approval: UL, CSA, CE
• Sub-Category: General/Heavy Duty Limit Switch
