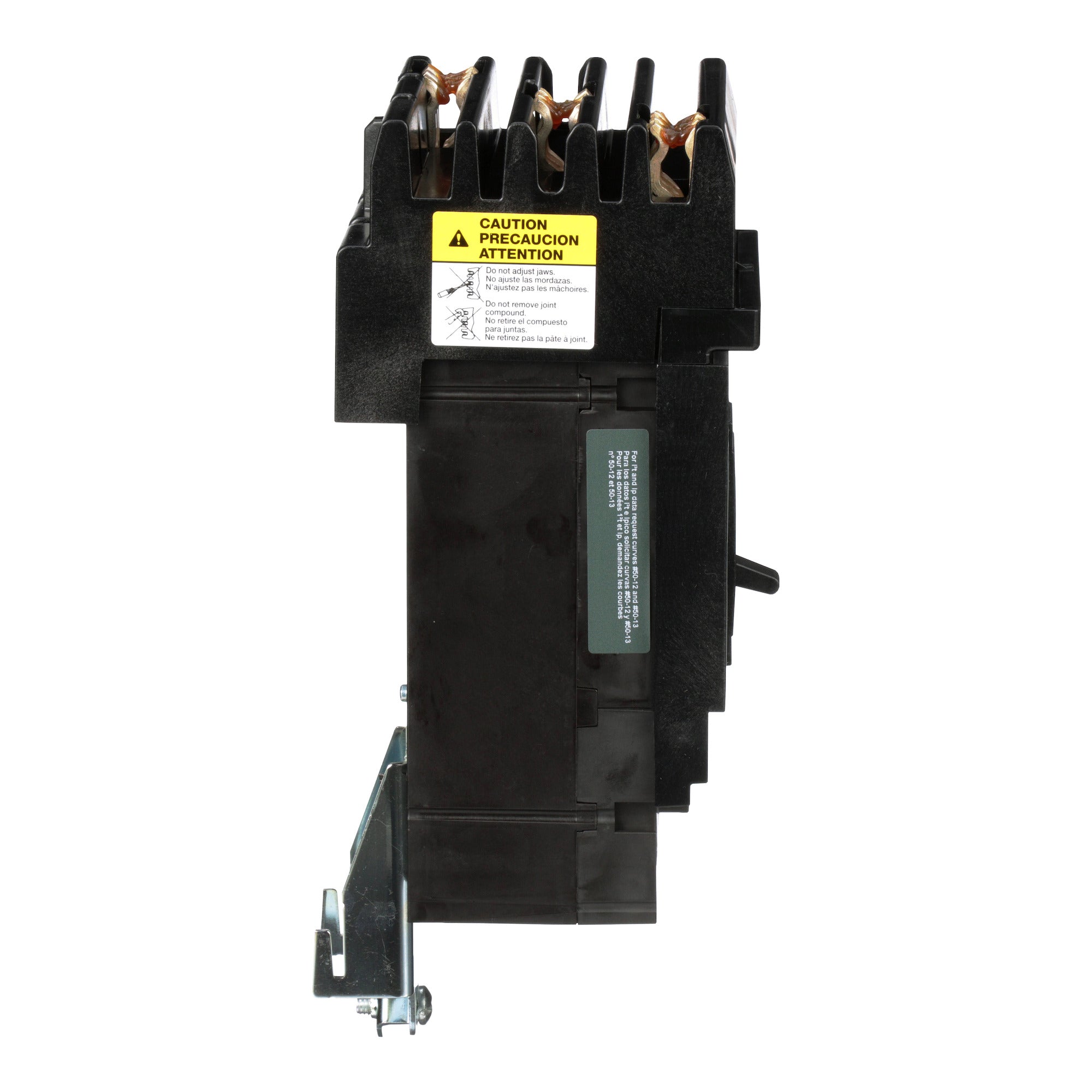

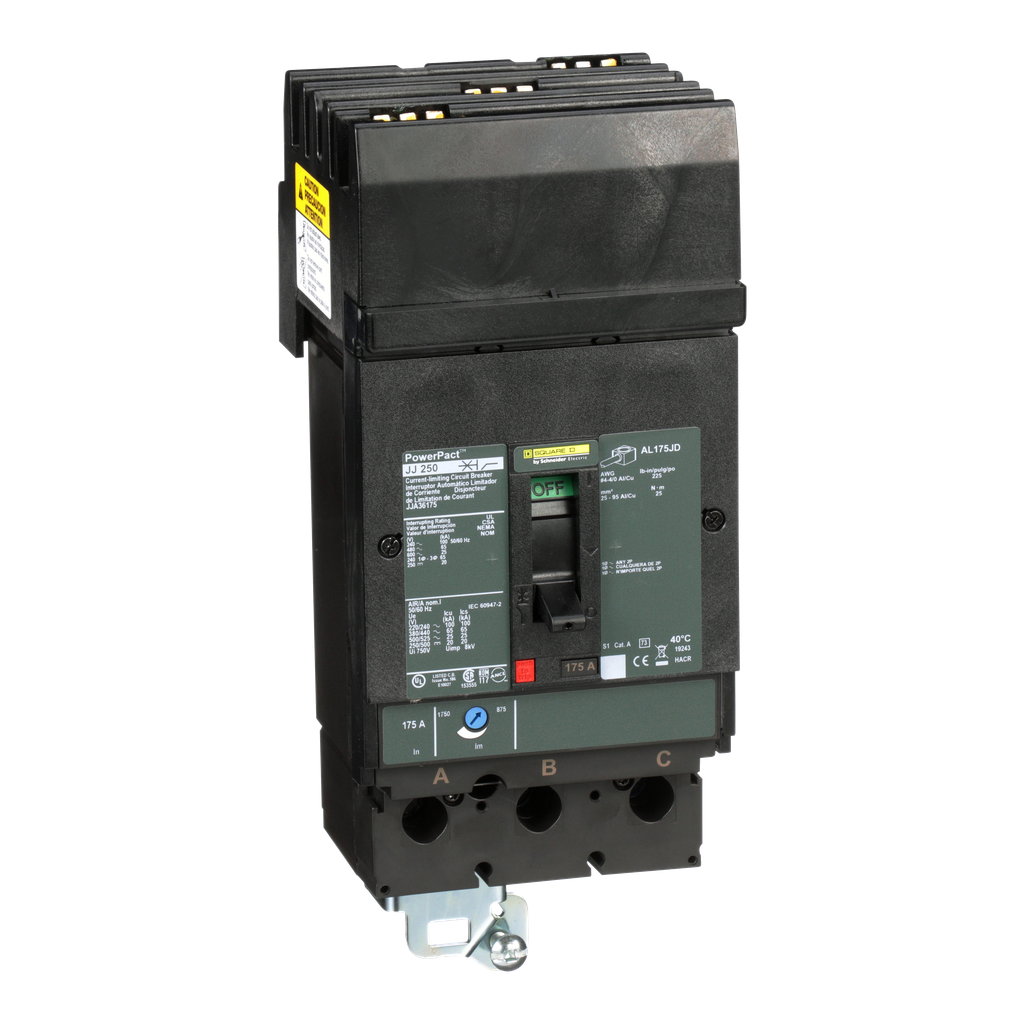

Square D JJA36175 600 Volt 175 Amp Molded Case Circuit Breaker

Product Description

The Square D JJA36175 is a molded case circuit breaker designed to protect electrical systems from overloads and short circuits. This unit features thermal magnetic protection, providing a breaking capacity of 25kA at 600VAC. The dual-break rotating contacts minimize peak current during faults. It includes a manual push-to-trip button and is compliant with multiple standards including UL, CSA, NOM, and IEC.

• Breaking Capacity: 25kA at 600VAC
• Continuous Current Rating: 80% with ABC phase connection
• Number of Poles: 3

Product Highlights

This circuit breaker is built for 3-pole configurations and is suitable for I-Line applications, featuring easy installation and removal. The JJA36175 is ideal for use in distribution applications, ensuring both overload and short circuit protection.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: JJA36175
• Voltage: 600 Volt
• Amperage: 175 Amp
• Height: 4-1/2 Inches
• Width: 4.13 Inches
• Depth: 3.39 Inches
• Frame: J-Frame
• Trip Type: Thermal-Magnetic
• Country of Origin: Mexico
• Warranty: 18 months
• Connection Type: I-Line
