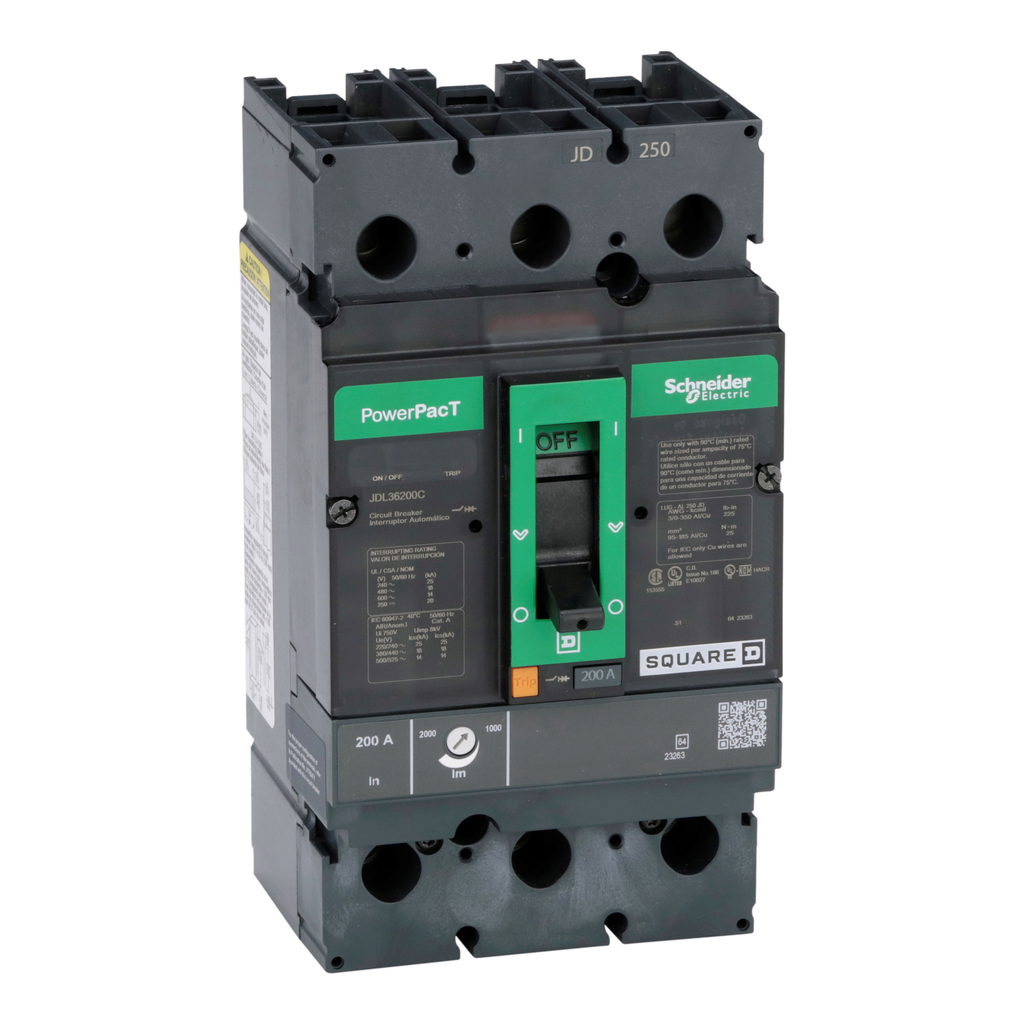

Square D JDL36200C 600 Volt 200 Amp Molded Case Circuit Breaker

Product Description

The Square D JDL36200C is a 600-volt, 200 amp molded case circuit breaker. It is part of the PowerPacT J-Frame series designed for protection against overloads and short circuits. This circuit breaker offers thermal magnetic trip protection, suitable for various applications in electrical systems.

• Provides overload and short circuit protection.
• Dual-break rotating contacts minimize peak current during faults.
• Complies with UL, CSA, and IEC standards.

Product Highlights

This circuit breaker features a breaking capacity of fourteen kA at 600 volts and has lugs on both the line and load sides. It is equipped with an integral push-to-trip button located on the cover, allowing for manual tripping.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Square-D / Schneider

Technical Specifications

• Voltage: 600 Volt
• Amperage: 200 Amp
• Depth: 86 mm
• Width: 104 mm
• Height: 191 mm
• Weight: 2.4 kg
• Number of Poles: 3 Pole
• Interrupt Rating: 14 kAIC
