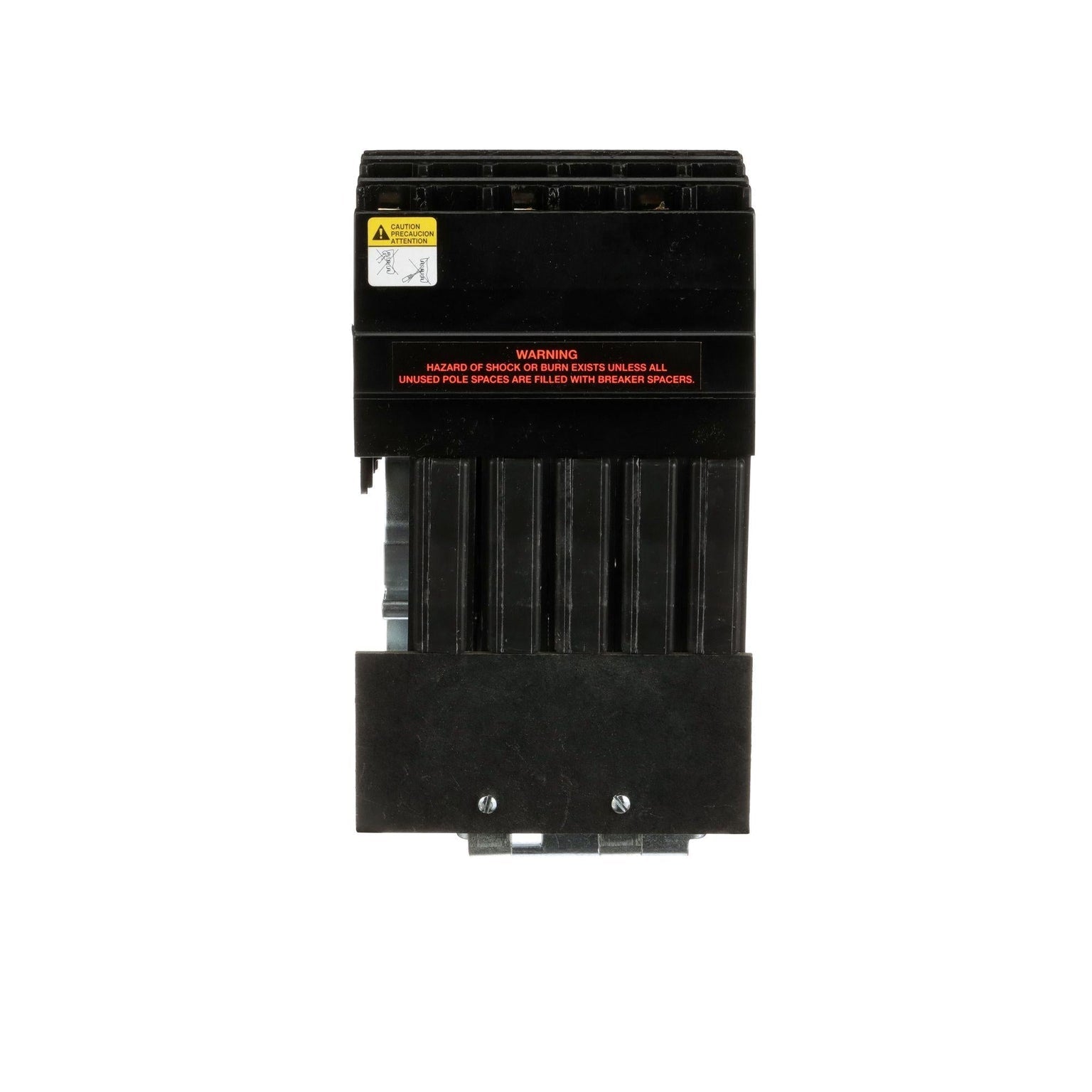

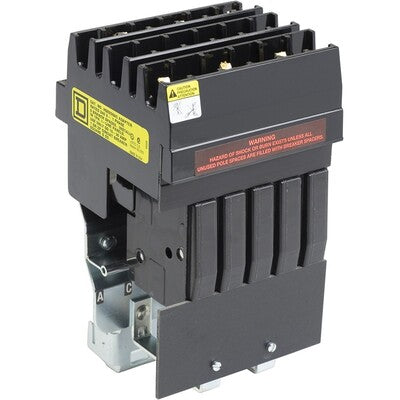

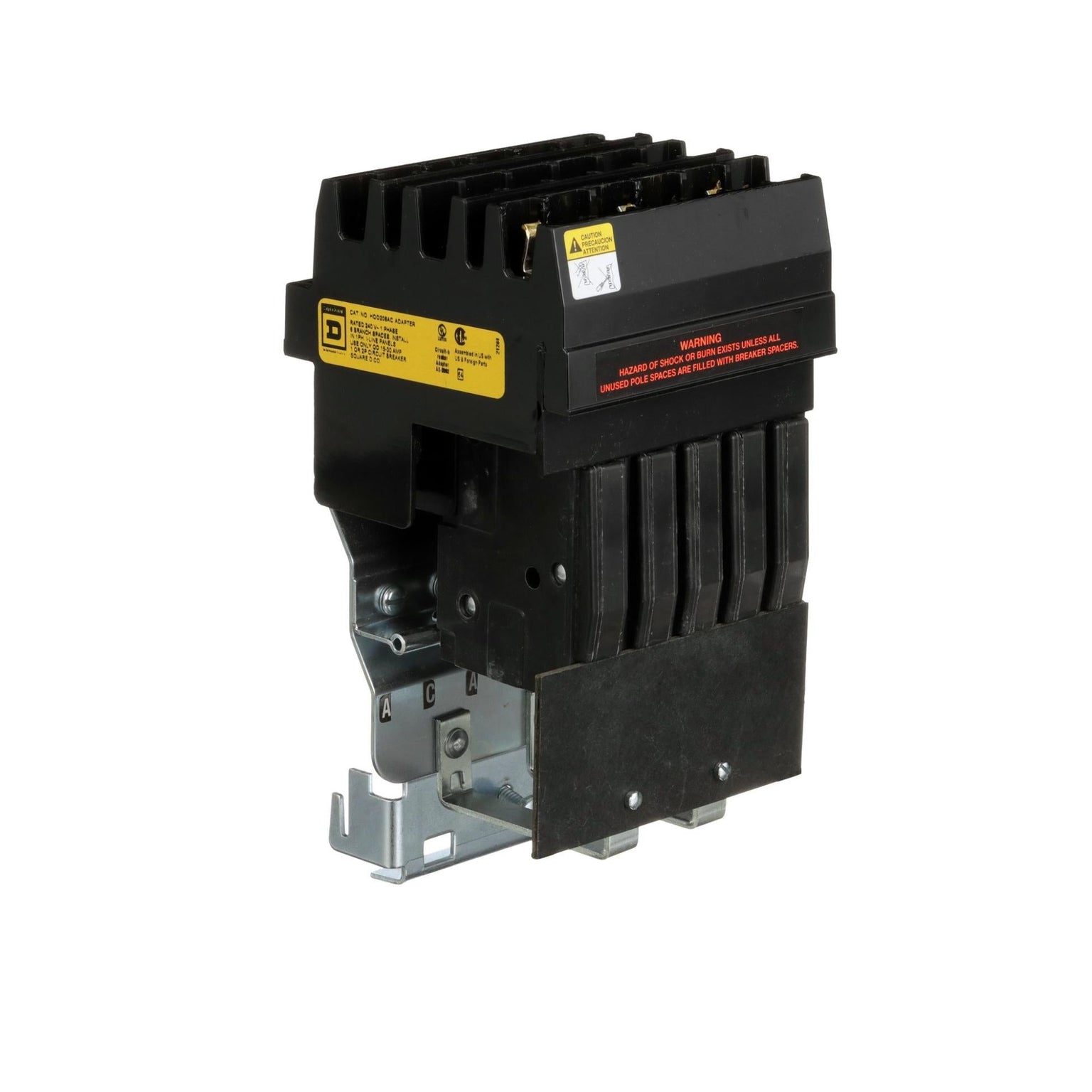

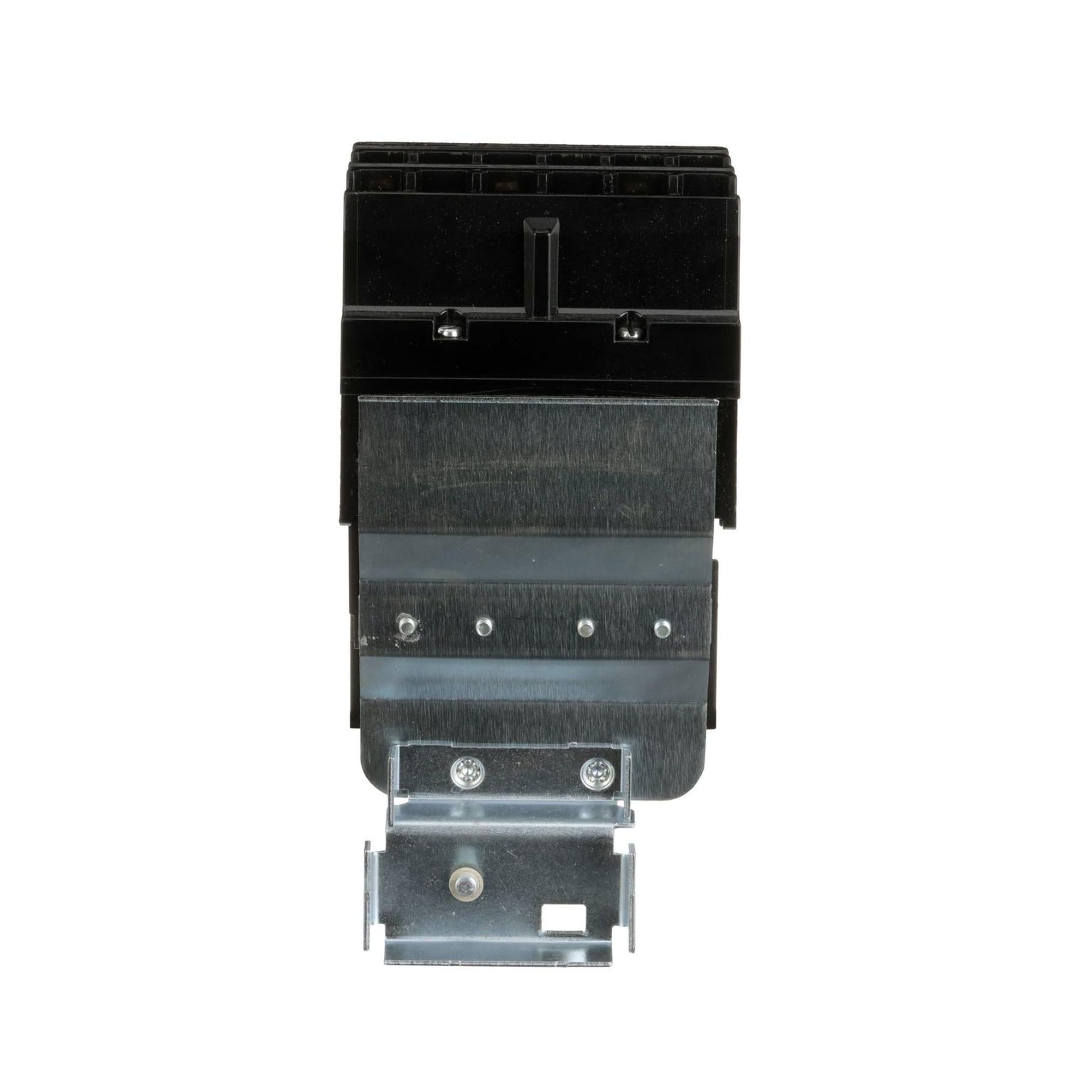

Square D HQO206AC Distribution Panel 30 Amp

Product Description

The Square D HQO206AC distribution panel is designed for I-Line power distribution panelboards, suitable for service entrance equipment or downstream distribution in large commercial or industrial facilities. This QO distribution panel mounts in HCM, HCP, HCP-SU, or HCR-U I-Line panelboards and accepts up to six 30A single pole QO circuit breakers. It has a 240 VAC maximum rating and provides 25 kA breaking capacity with an AC phase connection. The panel accepts 14 AWG or 12 AWG copper or aluminum wire.

• Designed for I-Line power distribution panelboards.
• Accepts up to six 30A single pole QO circuit breakers.
• Compatible with 14 AWG or 12 AWG copper or aluminum wire.

Product Highlights

The Square D HQO206AC is a 30 Amp distribution panel with a 240 VAC maximum rating and 25 kA breaking capacity.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: HQO206AC
• Country of Origin: USA

Technical Specifications

• Type: POWER DISTRIBUTION PANEL
• Brand: Square D
• Current: 30 Amp
• Voltage: 120/240 Volt
• Amperage: 30 Amp
• Wire Size: AWG 14...AWG 12 copper or aluminium
• Product UPC: 78590164959
• 12-Digit UPC: 785901649595
• Applications: QO
• TC Connection: AWG 14...AWG 12 COPPER OR ALUMINIUM
• Conductor Size: 14-12 AWG
• Number of Phases: 1 Phase
• Number of Spaces: 6
• Country of Origin: USA
• Line Rated Current: 30 A
• Circuit Breaker Type: QO
• Operating Temperature: 23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
• Short Circuit Current: 25 kA
• Catalog Number: HQO206AC
• Manufacturer: Schneider Electric
• Made in USA: Yes
• Phase: 1
• UPC: 785901649595
• GTIN: 00785901649595
• Main function: Load center
• Product series / family name: QO
• Functions: Power distribution panel - phase connection AC
• Type of network: Single-phase (1PH)
• Rated current: 30A
• Rated voltage (AC): 120Vac/240Vac
• Poles: 2 Pole(s)
• Short circuit breaking rating: 25kA
• Technical compatibility with: I-Line
• Manufacturer product status: Commercialized
• Category: Panels
