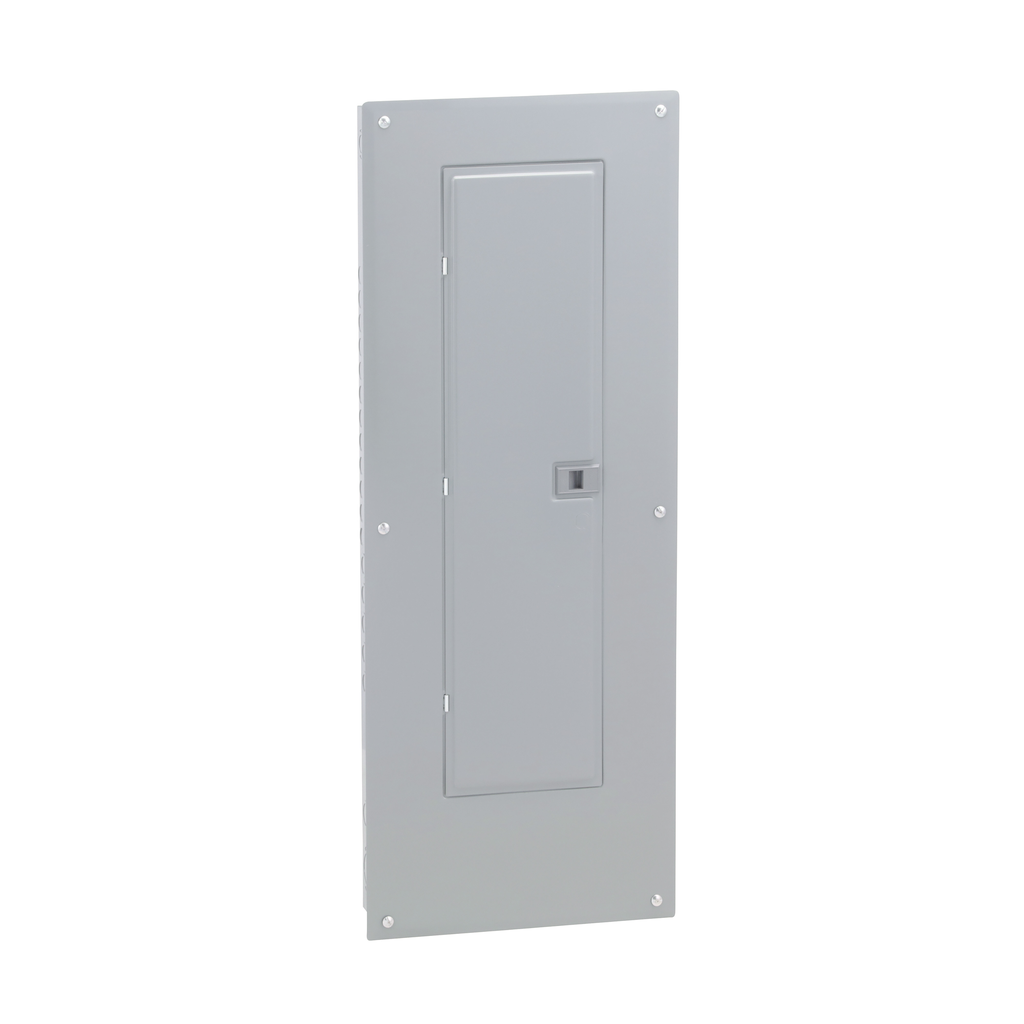

Square D HOM4080L225PQGC Load Center 225A 40 Spaces

Product Description

The Square D HOM4080L225PQGC is a load center designed for residential and industrial use. This unit provides essential electrical safety and protection. It supports up to 40 spaces and 80 circuits. It features a main lug configuration rated for 225 amperes at 120/240 volts. The structure is built for indoor installation with a NEMA 1 enclosure, capable of withstanding rain.

• Rated for 225A, 120/240V single phase
• Includes a grounding bar and Qwik grip assembly kit
• Supports wire sizes from 4 AWG to 250 kcmil

Product Highlights

This load center features a 10 kA breaking capacity, ensuring reliable operation and safety. It is suitable for various applications, making it an ideal choice for trade professionals.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• MPN: HOM4080L225PQGC
• Number of Spaces: 40
• Number of Circuits: 80
• Voltage: 120/240 Volt
• Current Rating: 225 Amp
• Enclosure Rating: NEMA 1
• Maximum Short Circuit Current Rating: 10 kA
• Cover Type: Combination flush/surface cover
• Country of Origin: USA
