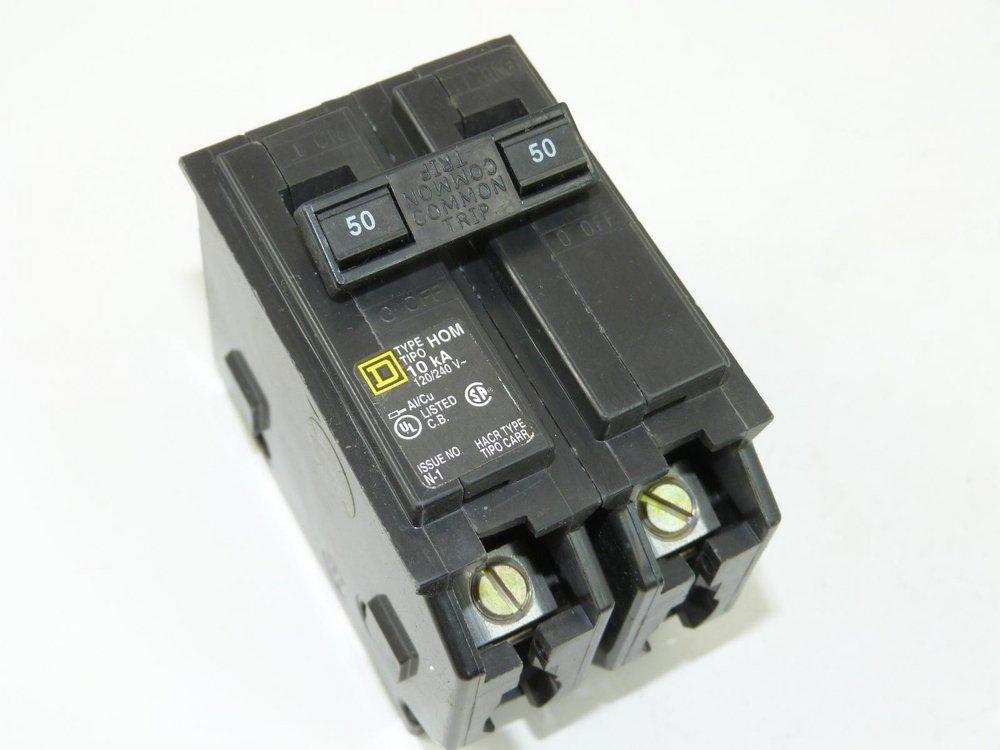

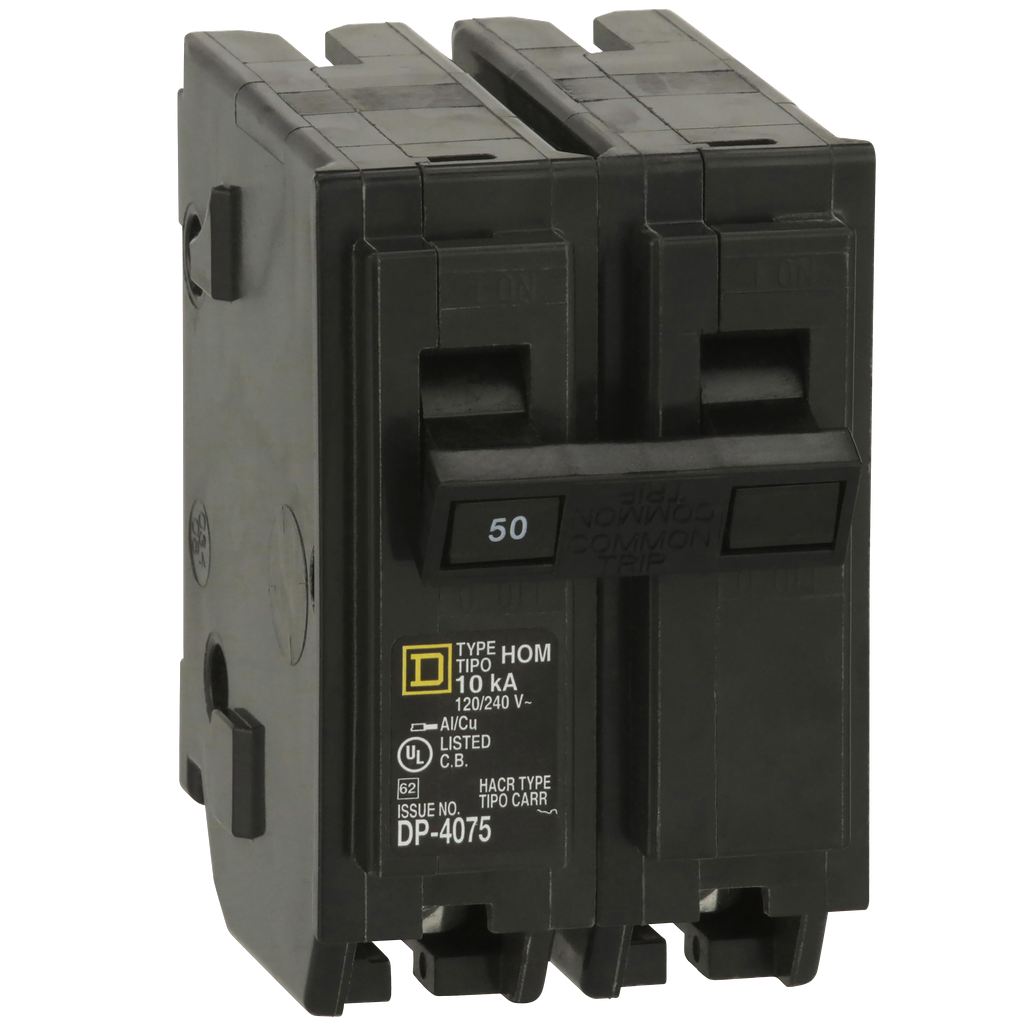

Square D HOM250 Miniature Circuit Breaker 50 Amp 2 Pole 120/240 Volt

Product Description

Square D HOM250 is a 50 amp miniature circuit breaker designed for use in residential applications. It operates at 120/240 volts and offers both overload and short-circuit protection for electrical systems. This breaker is compatible with Homeline load centers and features a plug-in mounting style. The unit is UL Listed and provides a breaking capacity of 10 kA, ensuring reliable circuit protection.

• Primary usage for overload and short-circuit protection
• Rated for 50 Amps at 120/240 Volts
• Compatible with Homeline series load centers

Product Highlights

Square D circuit breakers are well-regarded for their reliability and performance in the field. They are designed with installation convenience in mind, allowing for quick setup and optimal functionality.

Product Information

Standard Information

• Brand: Square D
• MPN: HOM250

Technical Specifications

• Voltage Rating: 120/240 Volt
• Current Rating: 50 Amp
• Number of Poles: 2 Pole
• Interrupt Rating: 10 kA
• Mounting Type: Plug-in
• Wire Size: Accepts AWG 8 to 2 (Copper/Aluminum)
• Height: 3.13 inches
• Width: 2.0 inches
• Depth: 2.98 inches
