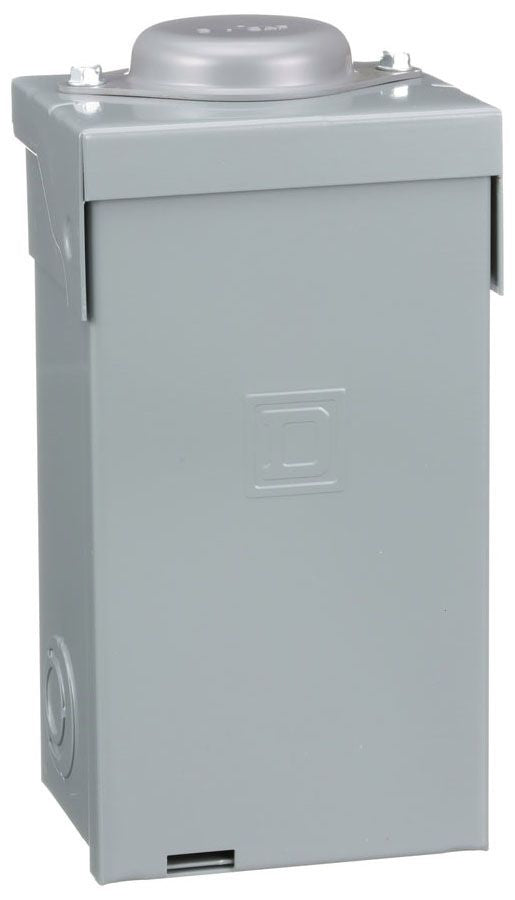

Square D HOM24L70RB Load Center Hom Mlo 240V 70A 1Ph 2Sp

Product Description

The Square D HOM24L70RB is a load center designed for efficient power distribution in residential and light commercial applications. This model operates on 240 volts with a 70 ampere rating. It has a fixed main lug type with a compact size of four point eighty-eight inches wide, four inches deep, and nine point thirty-eight inches high.

• UL Approved for safety and reliability.
• Designed for a maximum of four circuits and two spaces.
• Enclosure rated NEMA 3R for outdoor and rainproof applications.

Product Highlights

This load center features a robust construction suitable for both indoor and outdoor installations. Its UL approval guarantees compliance with strict safety standards, making it a reliable choice for electricians.

Product Information

Standard Information

• Manufacturer: Square D Co.
• UPC: 78590106117

Technical Specifications

• Interrupting Rating: 10 Kiloampere
• Neutral Type: Bonded
• Bus Material: Tin Plated Aluminum
• Feed Location: Top
• Main Wire Size: 12 to 3 AWG (Aluminum), 14 to 4 AWG (Copper)
• Enclosure Type: NEMA 3R, Outdoor/Rainproof
• Cover Type: Surface
• Catalog Number: HOM24L70RB
