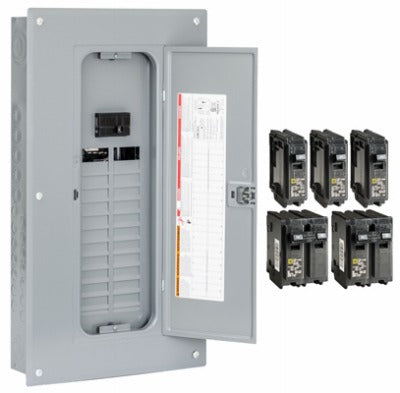

Square D HOM2448M100PCVP 100A 24 Space Load Center Pack

Product Description

The Square D HOM2448M100PCVP is a Homeline 100-amp indoor convertible main breaker load center value pack designed for residential electrical distribution. Rated at 100 amps with 24 spaces and 48 circuit capacity, it accepts Plug-On Neutral breakers and ships with a factory cover pre-installed. The panel includes a fully distributed neutral bar, allowing Homeline Plug-On Neutral combination arc fault circuit interrupter (CAFI) breakers to be installed in any available space. This load center is intended for installation by licensed electricians during new construction or service panel upgrades.

This load center is suited for indoor residential applications where a convertible main breaker configuration is required. The value pack includes 3 Homeline 20-amp single-pole breakers rated at 120 volts and 2 Homeline 30-amp double-pole breakers, providing a ready-to-install starting configuration. The convertible main breaker design gives installers flexibility to configure the panel as a main breaker or main lug unit depending on the installation layout.

Key Features

• 100-amp main breaker rating with 24 spaces and 48 maximum circuits
• Fully distributed neutral bar supports Plug-On Neutral CAFI breaker installation in any space
• Convertible main breaker design for flexible panel configuration
• Includes factory cover for a complete installation-ready package
• Value pack includes 3 single-pole 20-amp and 2 double-pole 30-amp Homeline breakers
• Rated for indoor use in residential load center applications

Compatibility

Designed for use with Homeline Plug-On Neutral circuit breakers. The fully distributed neutral bar allows Homeline Plug-On Neutral combination arc fault breakers to be installed on any circuit space within the panel.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Shut off the utility service before beginning any work inside the load center enclosure. Verify the service entrance conductor sizing matches the 100-amp main breaker rating before terminating conductors. Do not exceed the panel's 48-circuit maximum or install breakers not rated for Plug-On Neutral compatibility in this enclosure.
