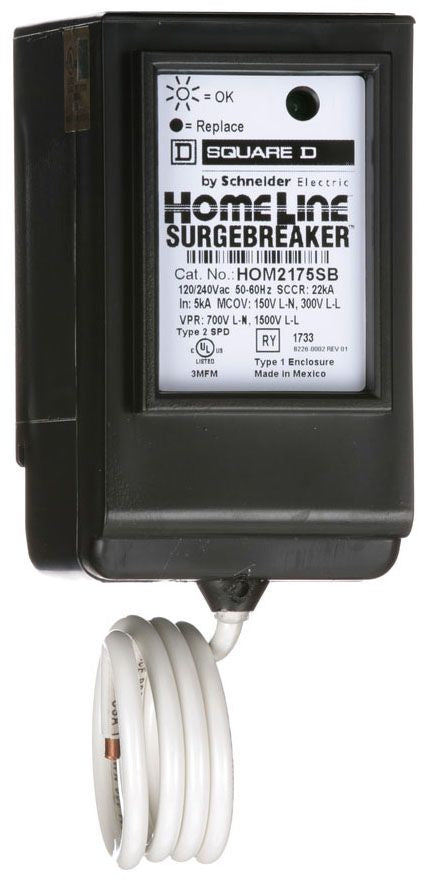

Square D HOM2175SB Surge Arrester

Product Description

Square D HOM2175SB is a load center secondary surge arrester designed to protect against voltage surges. This unit operates at a maximum voltage of one hundred seventy-five volts AC. It is suitable for residential applications.

• UL Listed for safety and compliance.
• Includes LED status indicator for operational awareness.
• Rated for twenty-two point five kiloamps surge current per phase.

Product Highlights

This surge arrester is ideal for residential use, offering reliable protection for electrical systems. It connects easily to load centers.

Product Information

Standard Information

• Brand: Square D Co.
• Manufacturer: Square D Co.

Technical Specifications

• Size: Two inches width x two point six inches depth x three point seven inches height
• Voltage Rating: One hundred fifty volts AC
• Circuit Configuration: One-phase
• Surge Current per Phase: Twenty-two point five kiloamps
• Approval: UL (Canada and US), UL 1449, CSA
• Application: Residential
• Catalog Number: HOM2175SB
• UPC: 78590121090
