Square D HOM2040M200PC Hom Indr 200A Mb

Product Description

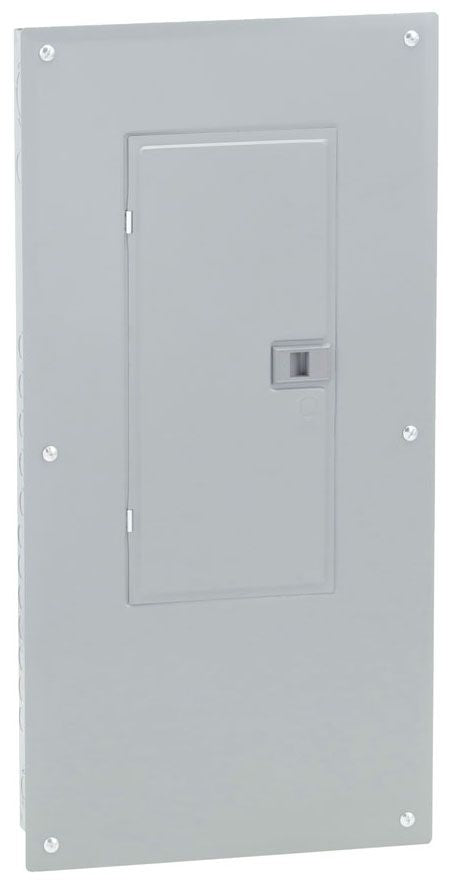

The Square D HOM2040M200PC is an indoor load center designed to provide reliable power distribution for residential and industrial applications. This 200-amp panel is suitable for single-phase installations. It features a convertible main breaker and allows for a total of forty circuits, with a maximum of twenty single-pole circuits.

• Includes a NEMA 1 enclosure suitable for indoor use.
• Rated for 120/240 VAC with a 22 kA interrupting rating.
• Accommodates wire sizes from four AWG to 250 KCMIL for copper or aluminum.

Product Highlights

The load center offers multiple configurations and is UL listed for safety assurance. Ideal for homes and businesses, the robust design enhances both electrical system protection and organization, ensuring easy installation and maintenance.

Product Information

Standard Information

• Manufacturer: Square D
• Brand: Square D Co.

Technical Specifications

• UPC: 78590197728
• Size: 14.25 inches W x 3.75 inches D x 29.86 inches H
• Type: Convertible Main/Main Breaker
• Approval: UL
• Voltage Rating: 120/240 VAC
• Current Rating: 200 Amps
• Maximum Number of Circuits: 40
• Maximum Number of Spaces: 20
• Enclosure Type: NEMA 1, Indoor
• Breaker Mounting: Plug-On
• Main Wire Size: 4 AWG to 250 KCMIL
• Interrupting Rating: 22 Kiloamperes
