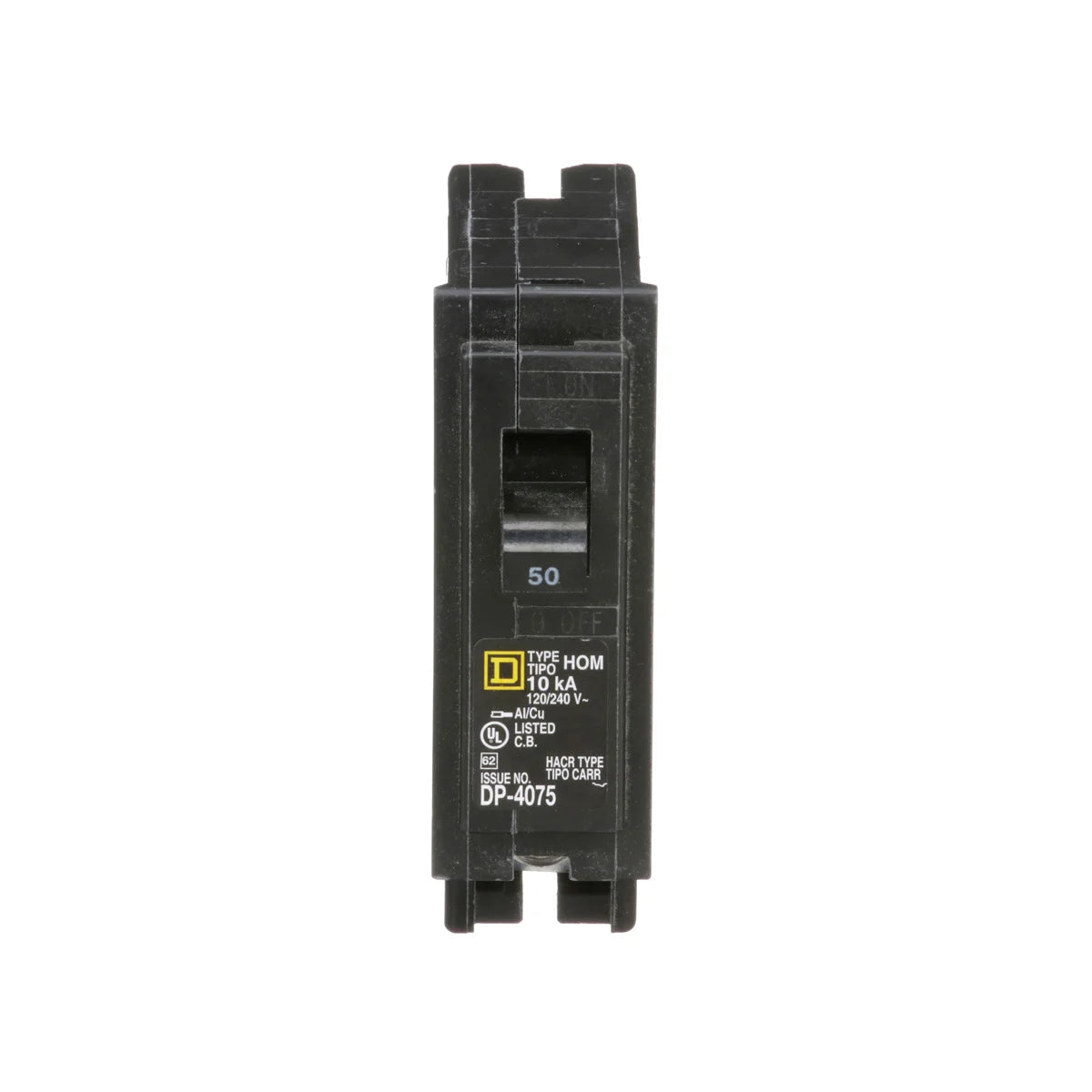

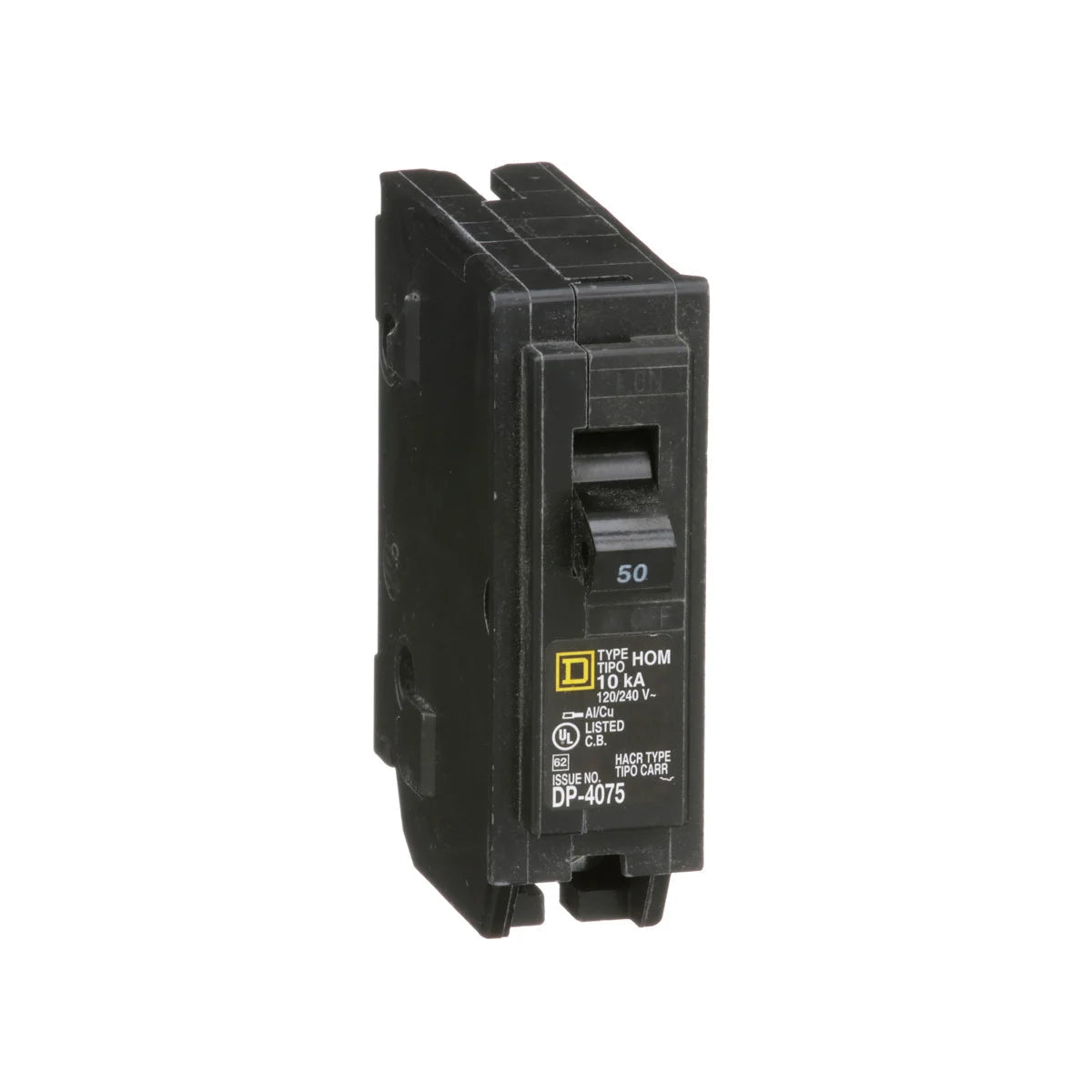

Square D HOM150 Miniature Circuit Breaker 50 Amp 120/240 Volt

Product Description

The Square D HOM150 is a miniature circuit breaker designed for overload and short-circuit protection. This unit is engineered for use in Homeline load centers, making it a compatible choice for electrical installations. It operates at 120/240 volts and has a current rating of fifty amps. The HOM150 features a HACR rating and is UL listed for safety and compliance.

• Rated for 50 amps at 120/240 volts
• Plug-in mounting type for easy installation
• 10 kA breaking capacity

Product Highlights

This circuit breaker is ideal for residential applications and is built to ensure reliable performance under various conditions.

Product Information

Standard Information

• Catalog Number: HOM150
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage Rating: 120/240 Volt
• Current Rating: 50 Amp
• Number of Poles: 1 Pole
• Mounting Type: Plug-in
• Wire Size: AWG 8 to AWG 2
• Height: 3.13 inches
• Width: 1.0 inch
• Depth: 2.98 inches
