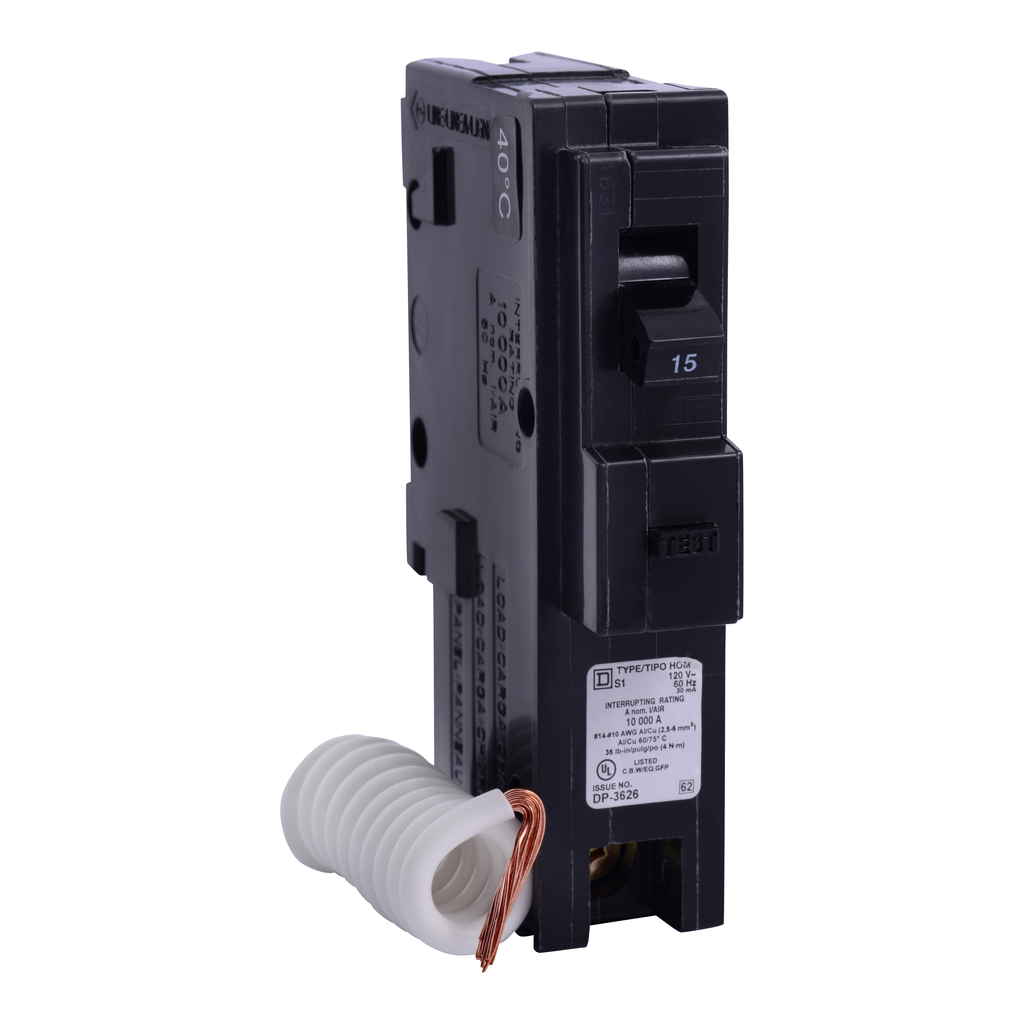

Square D HOM115EPD Mini Circuit Breaker 15A 120V

Product Description

The Square D HOM115EPD is a miniature circuit breaker designed for safe and effective protection in electrical circuits. This single-pole breaker is rated at fifteen amps and operates at one hundred twenty volts. It features a plug-in mounting style, making it compatible with Homeline load centers for easy installation. The HOM115EPD offers a ten kA interrupting capacity, ensuring reliable performance during fault conditions. This breaker provides protection for HACR rated applications and is equipped with ground fault protection that meets Class B standards, ensuring safety for connected devices.

• Standard protection with HACR rating.
• Clamp terminal accepts wire sizes from 14 AWG to 8 AWG.
• UL Listed for quality assurance.

Product Highlights

The HOM115EPD circuit breaker is built for durability and simplicity. It is ideal for residential and light commercial applications, ensuring that your electrical systems operate safely.

Product Information

Standard Information

• Catalog Number: HOM115EPD
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Miniature circuit-breaker
• Current Rating: 15 Amp
• Voltage Rating: 120 Volt
• Wire Size Capacity: 14 AWG to 8 AWG
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
• Ground Fault Protection: Class B 30 mA
• Operating Temperature: 40 Degrees C
