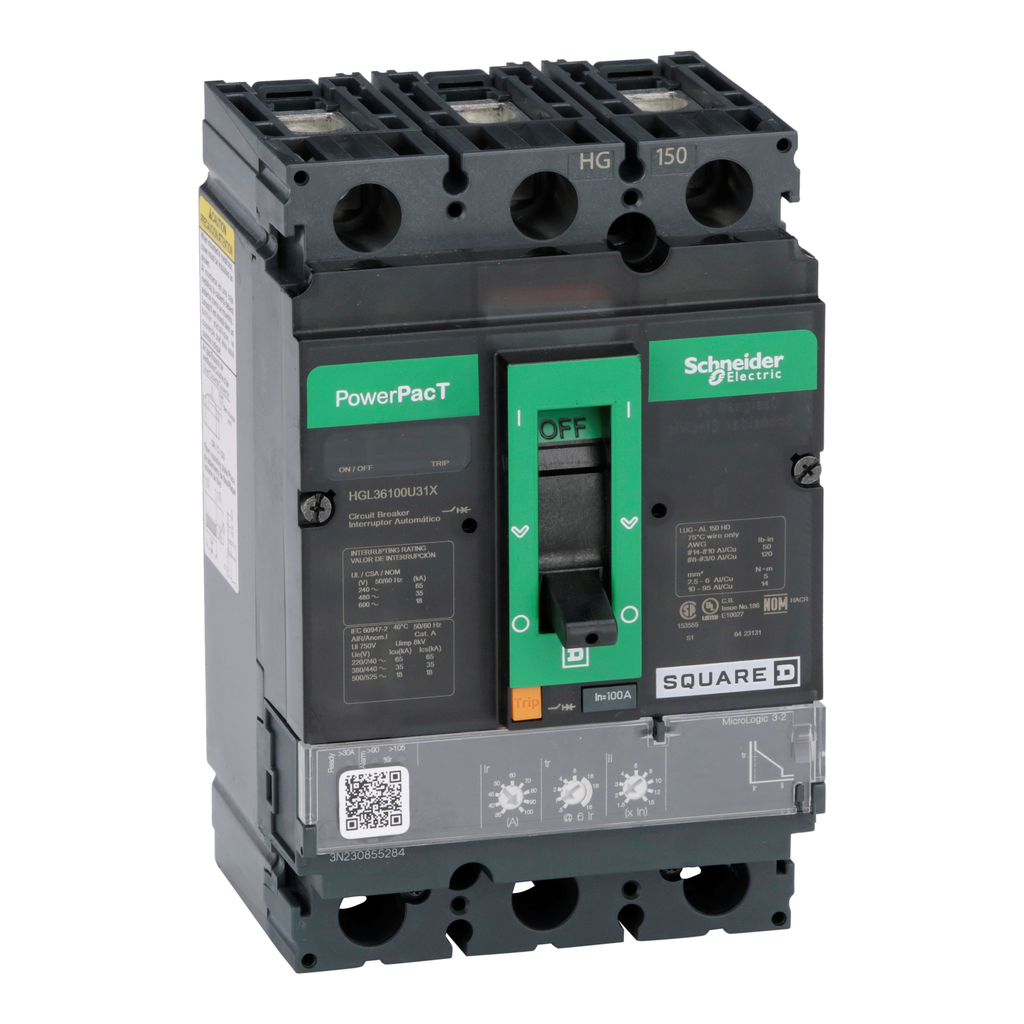

Square D HGL36100U31X Circuit Breaker P 100 Amp 3 Pole

Product Description

The Square D HGL36100U31X is a PowerPacT H-Frame circuit breaker designed to safeguard electrical systems from overloads and short circuits. It features a Micrologic Standard trip protection unit with a three point two trip unit and LI function, designed to handle a breaking capacity of eighteen kiloamps at six hundred volts AC. The breaker incorporates dual-break rotating contacts that limit peak current during faults.

This circuit breaker also includes an integral push-to-trip button to manually trip the device. The HGL36100U31X model is suitable for both unit mount and I-Line configurations, with lugs attached on the line and load sides. It has a continuous current rating of eighty percent, ensuring reliability in various applications.

• Three-pole configuration with a continuous rating of 100 amps
• Breaking capacity of 18kA at 600VAC
• Complies with UL, CSA, and IEC standards

Product Highlights

Engineered for effective protection in power distribution systems, this circuit breaker is ideal for use in various electrical applications.

Product Information

Standard Information

• Brand: Square D
• Type: Circuit breaker

Technical Specifications

• Voltage: 600 Volt
• Amperage: 100 Amp
• Number of Poles: 3 Pole
• Width: 4.1 inches
• Height: 6.4 inches
• Depth: 3.4 inches
• Weight: 2.2 kg
• Country of Origin: USA
