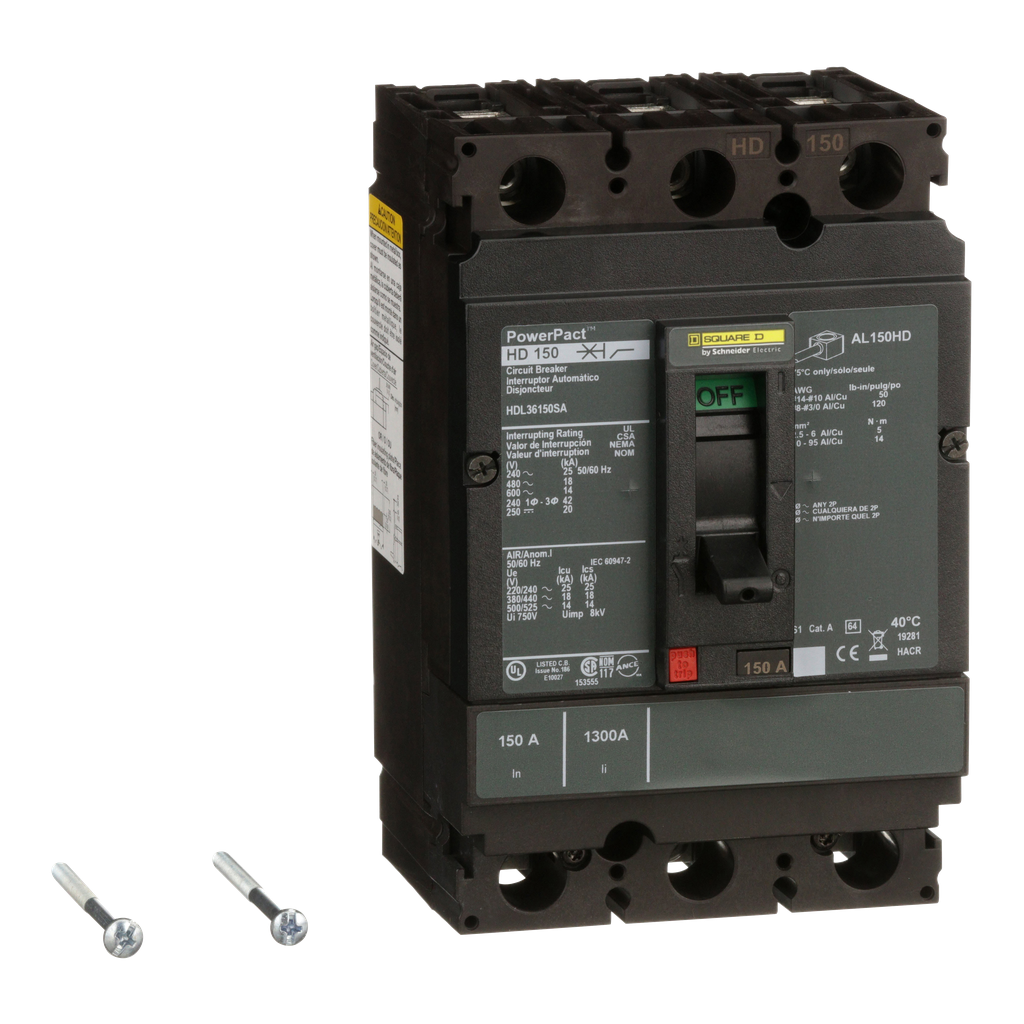

Square D HDL36150SA Circuit Breaker 150 Amp 600 Volt Thermal Magnetic 14kA

Product Description

The Square D HDL36150SA is a reliable circuit breaker designed to protect electrical systems from overloads and short circuits. This unit is a part of the PowerPacT H-Frame series and operates at 600 volts with a continuous current rating of 150 amps. It features thermal magnetic trip protection and is suitable for various applications in electrical distribution.

• Breaking capacity of 14kA at 600VAC
• Includes a factory-installed 120VAC shunt trip
• UL, CSA, and CE marked for compliance

Product Highlights

This circuit breaker is designed for commercial and industrial use. The unit has dual-break rotating contacts to minimize peak current during faults. It includes robust lugs for easy connections on both line and load sides, and it supports both unit mount and I-Line installations.

Product Information

Standard Information

• Brand: Square D
• MPN: HDL36150SA

Technical Specifications

• Voltage: 600 Volt
• Amperage: 150 Amp
• Number of Poles: 3 Pole
• Trip Type: Thermal-Magnetic
• Breaking Capacity: 14kA
• Dimensions: 6.4 inches (Length) x 4.1 inches (Width) x 6.4 inches (Height)
• Weight: 4.85 pounds
• Country of Origin: USA
