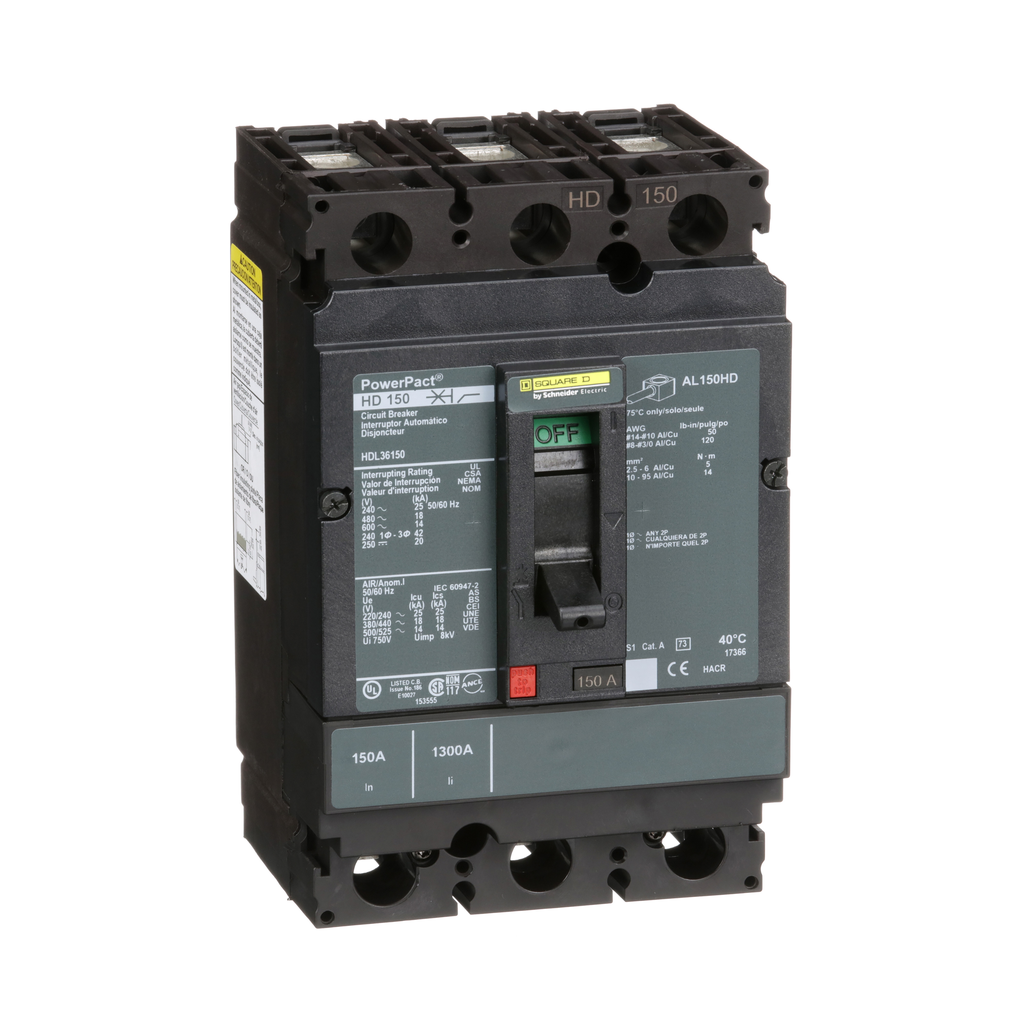

Square D HDL36150 600 Volt 150 Amp Molded Case Circuit Breaker

Product Description

The Square D HDL36150 is a molded case circuit breaker designed for electrical system protection. It has a current rating of 150 amps and operates at a voltage of 600 volts. This breaker is equipped with thermal-magnetic trip technology that helps safeguard against overloads and short circuits.

• Rated current of 150A
• 3 Pole configuration
• Breaking capacity of 14 kA at 600VAC

Product Highlights

This circuit breaker is suitable for use in a variety of applications that require reliable protection from electrical faults.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Type: Circuit breaker
• Voltage: 600 Volts
• Amperage: 150 Amps
• Depth: 3.39 inches
• Width: 4.09 inches
• Height: 6.42 inches
• Frame: H-Frame
• Certifications: UL, CSA, IEC
• Number of Poles: 3
• Trip Type: Thermal-Magnetic
• Warranty Length: 18 months
• Country of Origin: Mexico
• Interrupt Rating: 14 kAIC
