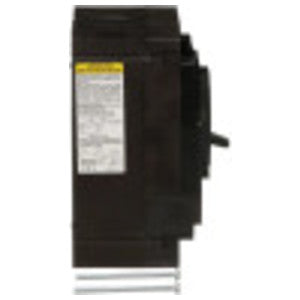

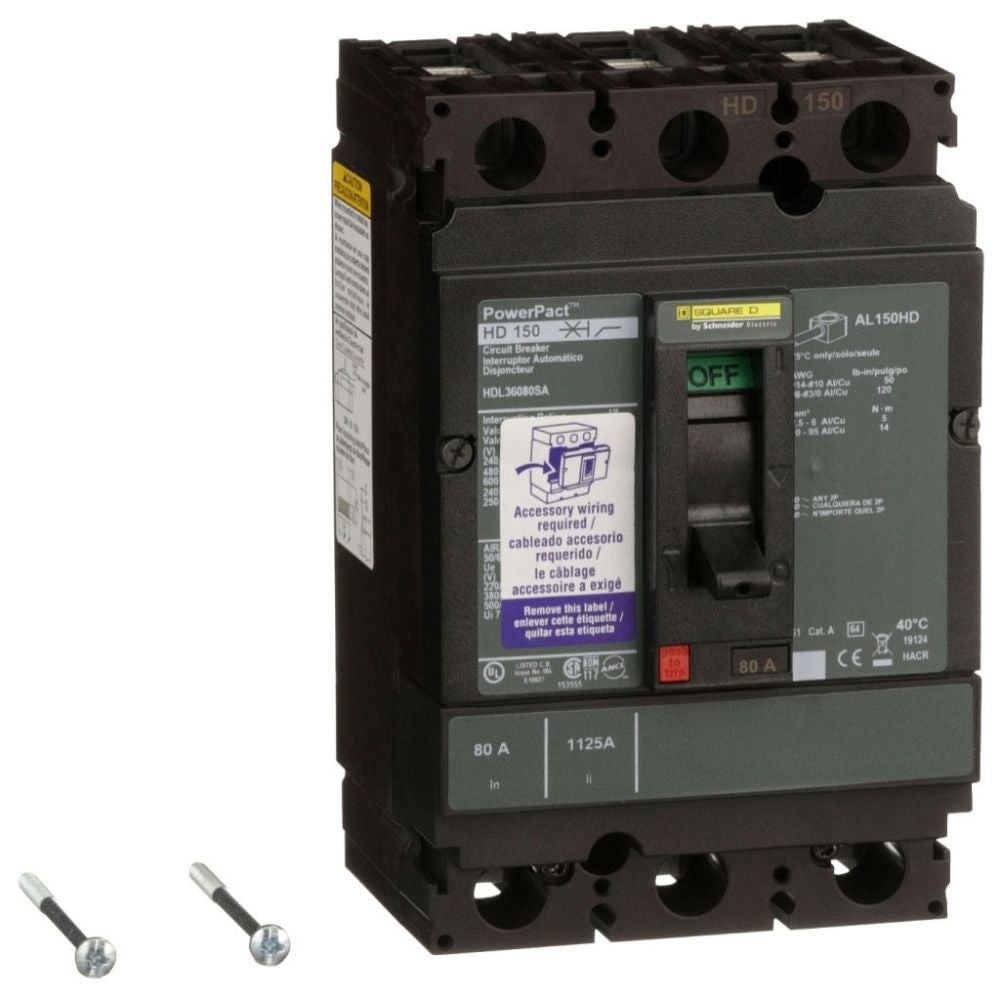

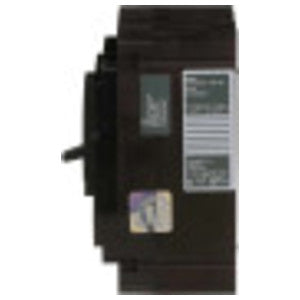

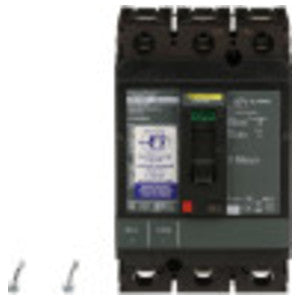

Square D HDL36080SA Molded Case Circuit Breaker 600V 80A

Product Description

The Square D HDL36080SA is a molded case circuit breaker rated for six hundred volts and eighty amperes. This circuit breaker protects electrical systems against damage from overloads and short circuits.

• Type: Thermal Magnetic, Current Limiting
• Poles: Three
• Interrupting Capacity: 14 Kiloampere at six hundred volts AC

Product Highlights

The HDL36080SA circuit breaker features a breaking capacity of fourteen kiloamperes at six hundred volts AC. It is designed for unit mounting and includes line and load lugs for easy installation. This device meets various safety approvals such as UL, CSA, and CE.

Product Information

Standard Information

• Brand: Square D Co.
• Manufacturer: Square D Co.

Technical Specifications

• Current Rating: 80 Ampere
• Voltage Rating: 240/480/600 VAC at 50/60 Hz, 250 VDC
• Size: 4.12 inches W x 4.36 inches D x 6.4 inches H
• Number of Poles: 3
• Interrupting Rating: 14 Kiloampere
• Approval: UL, CSA, CE
• Terminal Type: Line Lug, Load Lug
