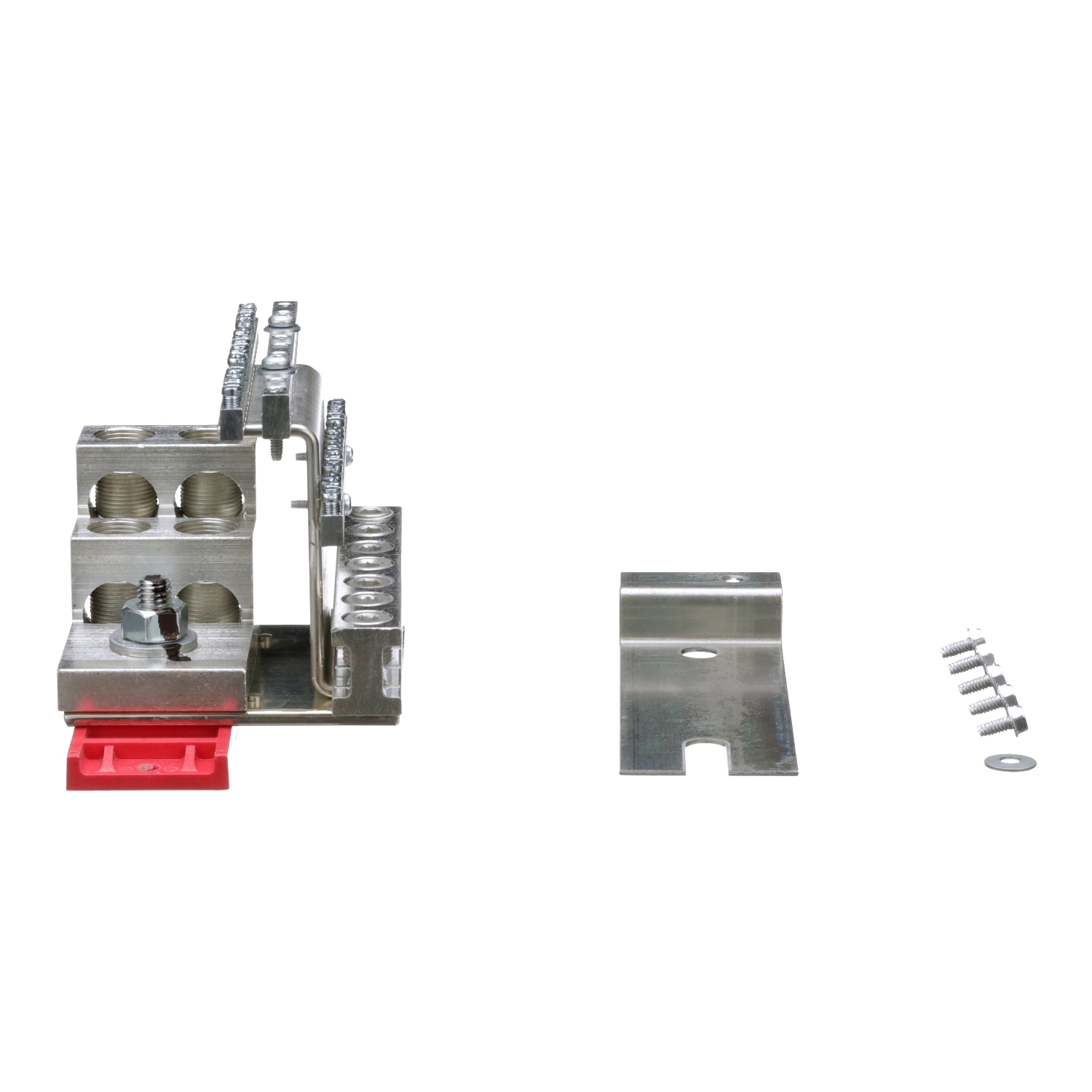

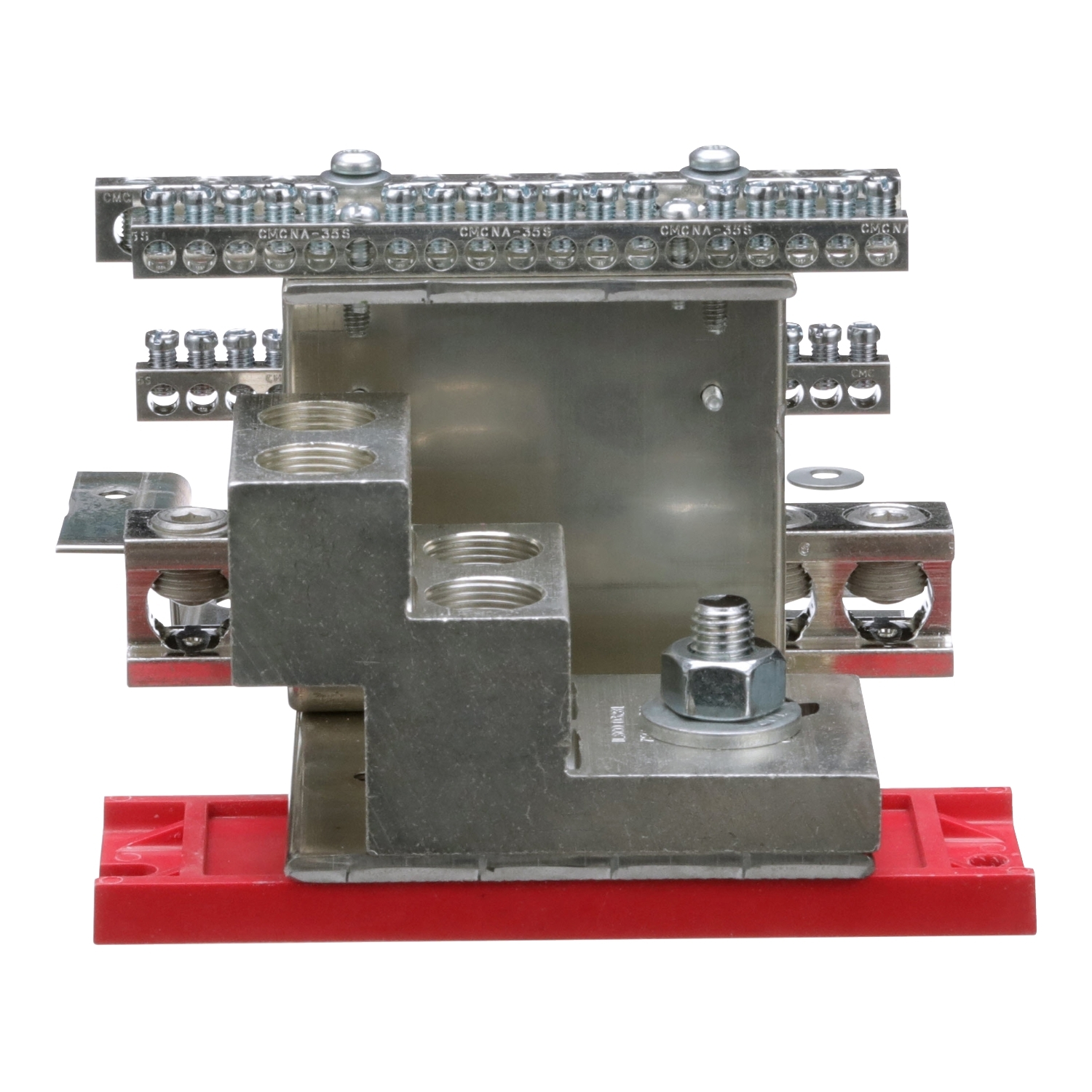

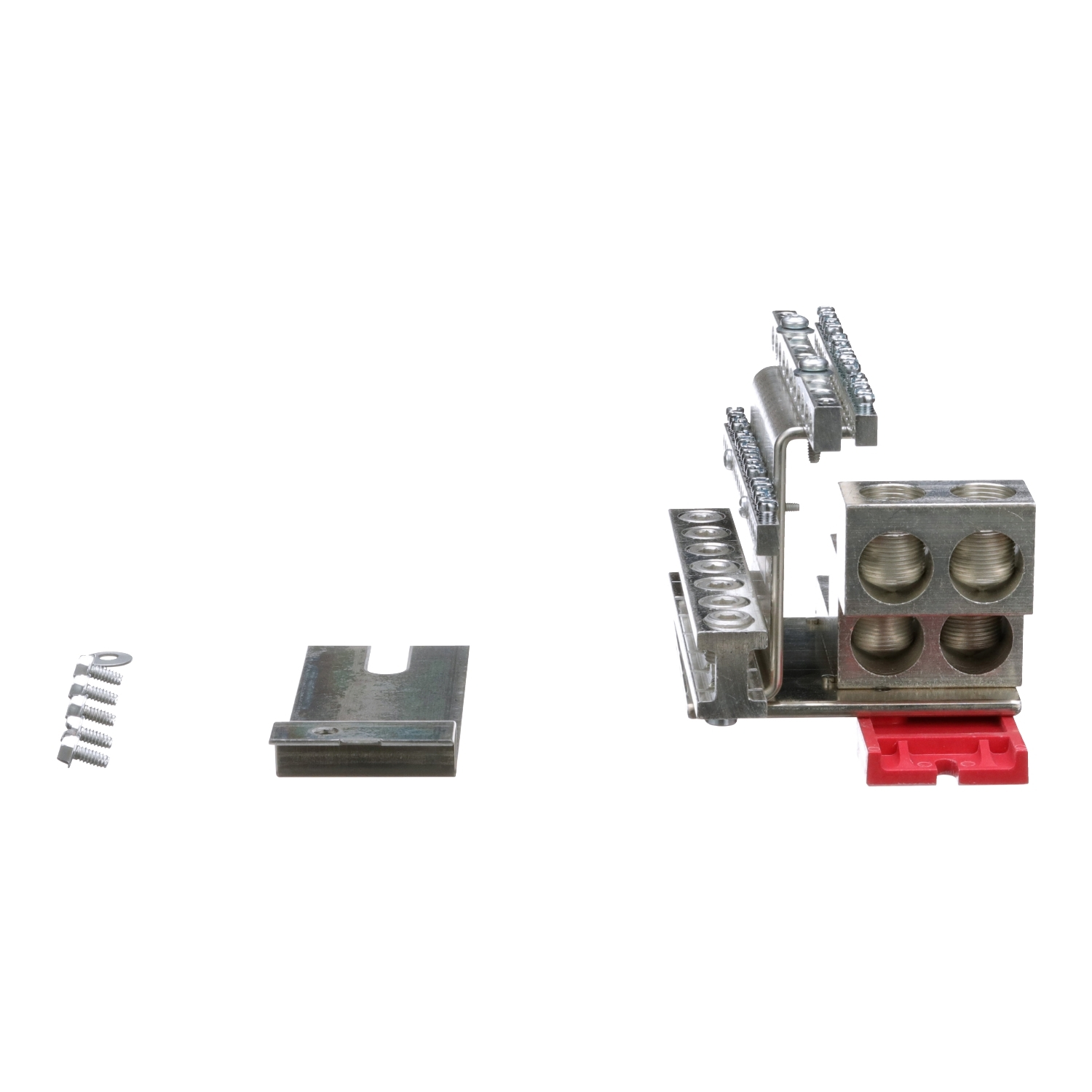

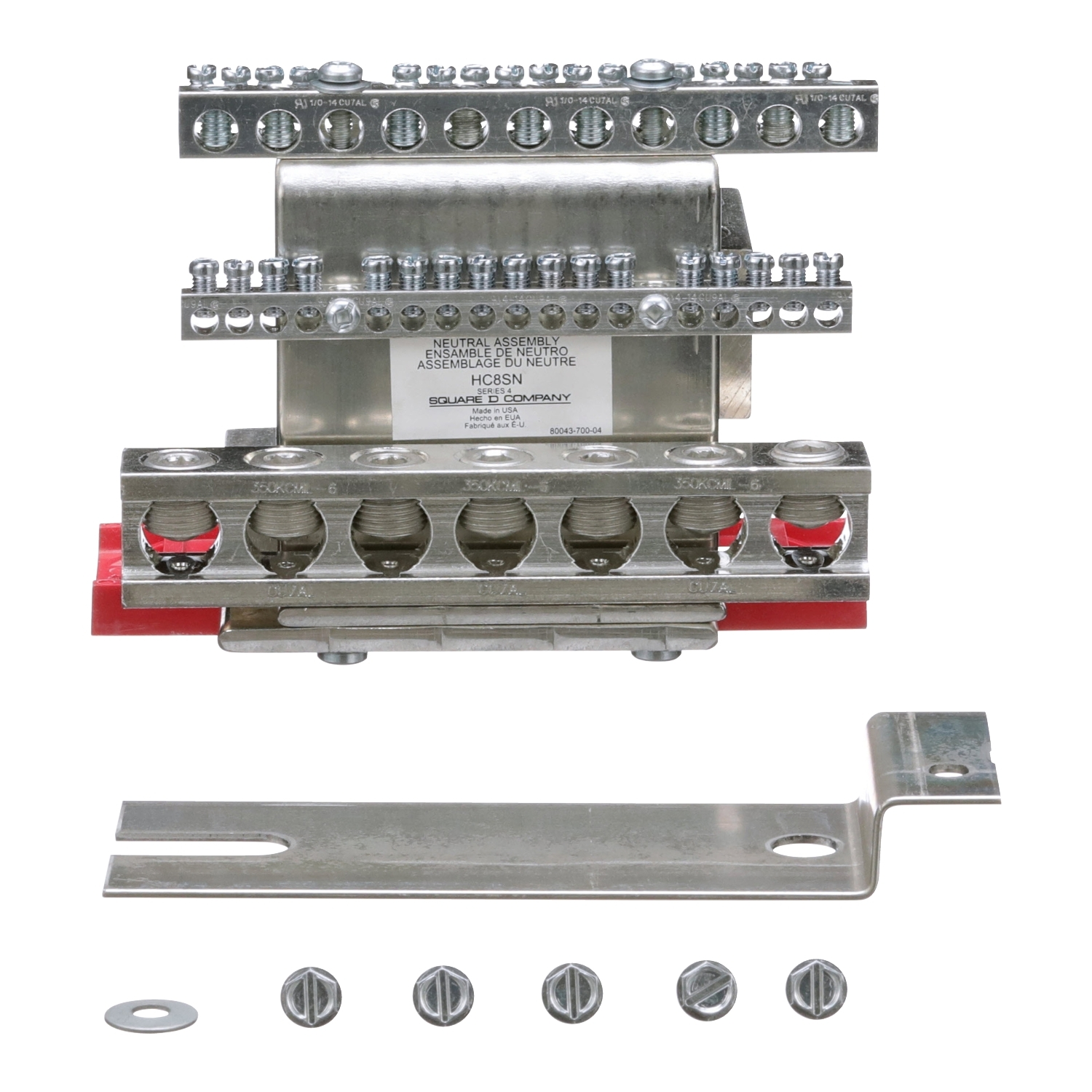

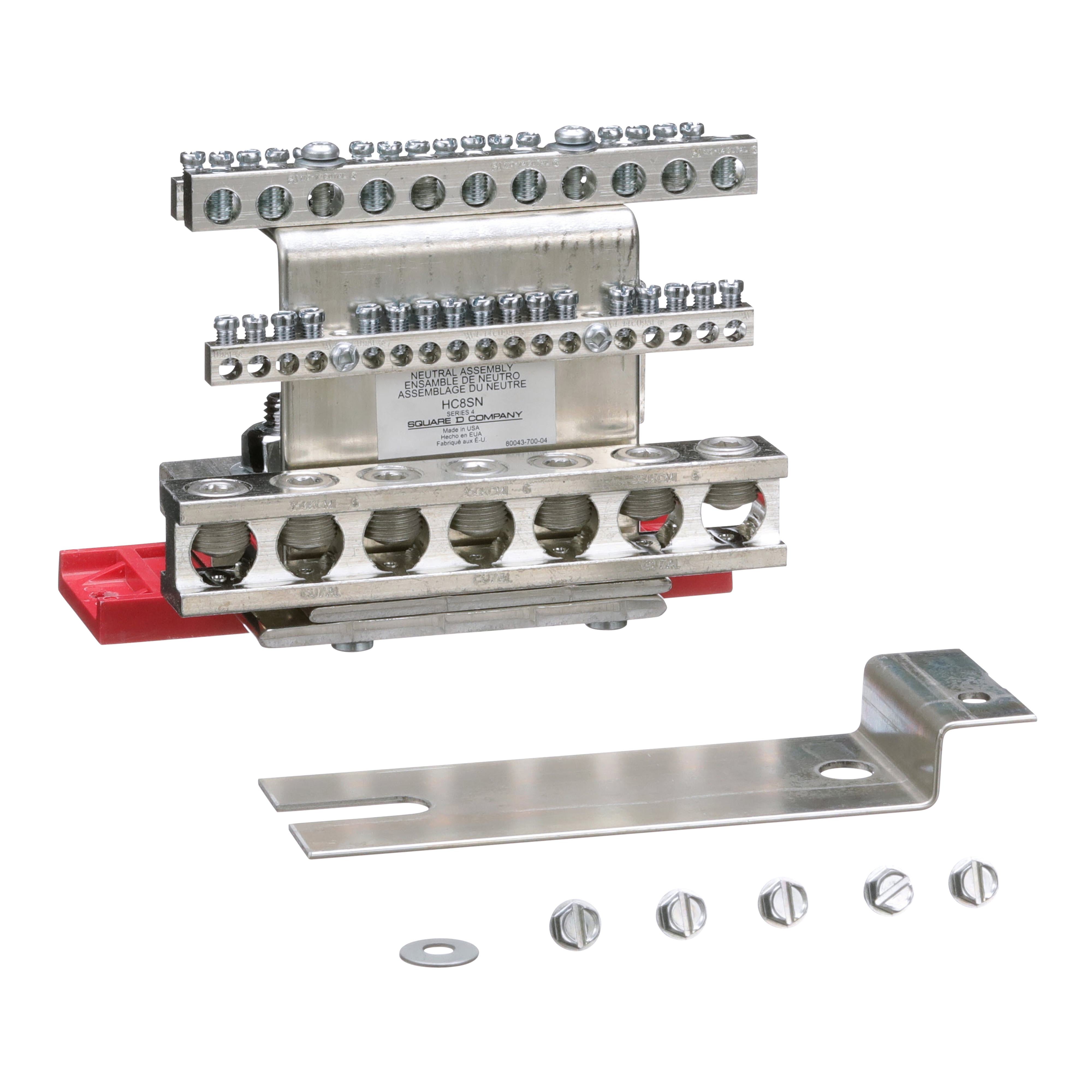

Product Description
The Square D HC8SN is an 800A panelboard solid neutral designed for use on AC or DC systems. This I-Line compatible electrical accessory is suitable for HCN & HCM distribution boards. It is UL & CSA certified. The solid neutral is made of aluminum.
- Electrical accessory
- Solid neutral
- I-Line compatible
Product Highlights
The Square D HC8SN panelboard solid neutral provides a reliable neutral connection for stable electrical system operation. It is UL & CSA certified.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: HC8SN
-
Country of Origin: United States
Technical Specifications
-
Type: Electrical accessory;Solid neutral
-
Brand: Square D
-
Voltage: 600//250 VAC//VDC
-
Amperage: 800 Amp
-
Material: Aluminum
-
Sub Brand: I-LINE
-
Cable Size: SEE TABLE
-
Net Weight: 1.94 kg
-
Applications: I-LINE PANELBOARDS
-
TC Connection: MECHANICAL LUGS
-
CA Prop65 Warning: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Country of Origin: USA
-
Line Rated Current: 800 A
-
Operating Temperature: PER UL
-
Catalog Number: HC8SN
-
Manufacturer: Schneider Electric
-
Made in USA: Yes
-
Current Rating: 800 Ampere
-
Lug Range: (4) #3/0 to 750 KCMIL (Copper/Aluminum)
-
Used On: I-Line Hcn/Hcm Series Panelboard Interior
-
Product Destination: HCN distribution board || HCM distribution board
-
Rohs Exemption Information: Yes
-
Packaging Made With Recycled Cardboard: Yes
-
Environmental Disclosure: ENVPEP1407017EN
-
Packaging Without Single Use Plastic: No
-
China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information.
-
Circularity Profile: N/A
-
Take-Back: No
-
Pvc Free: Yes
-
Eu Rohs Directive: Compliant with Exemptions
-
Amps: 800 A
-
Item: Panelboard Solid Neutral
-
Features: Mercury Free
-
Application: HCN distribution board || HCM distribution board
-
Product Type: Panelboard Solid Neutral
-
Accessory Type: Panelboard Solid Neutral
-
Frequency: 60 Hz
-
Phase: 3 Phase
-
Conductor Range: 3/0 AWG to 750 kcmil Al/Cu
-
Mounting: Surface Mount
-
Suitable For Use With: I-Line HCN, HCM Series Circuit Breaker Power Distribution Panelboard, I-Line™ HCN, HCM Series Circuit Breaker Power Distribution Panelboard
-
UNSPSC: 39121112
