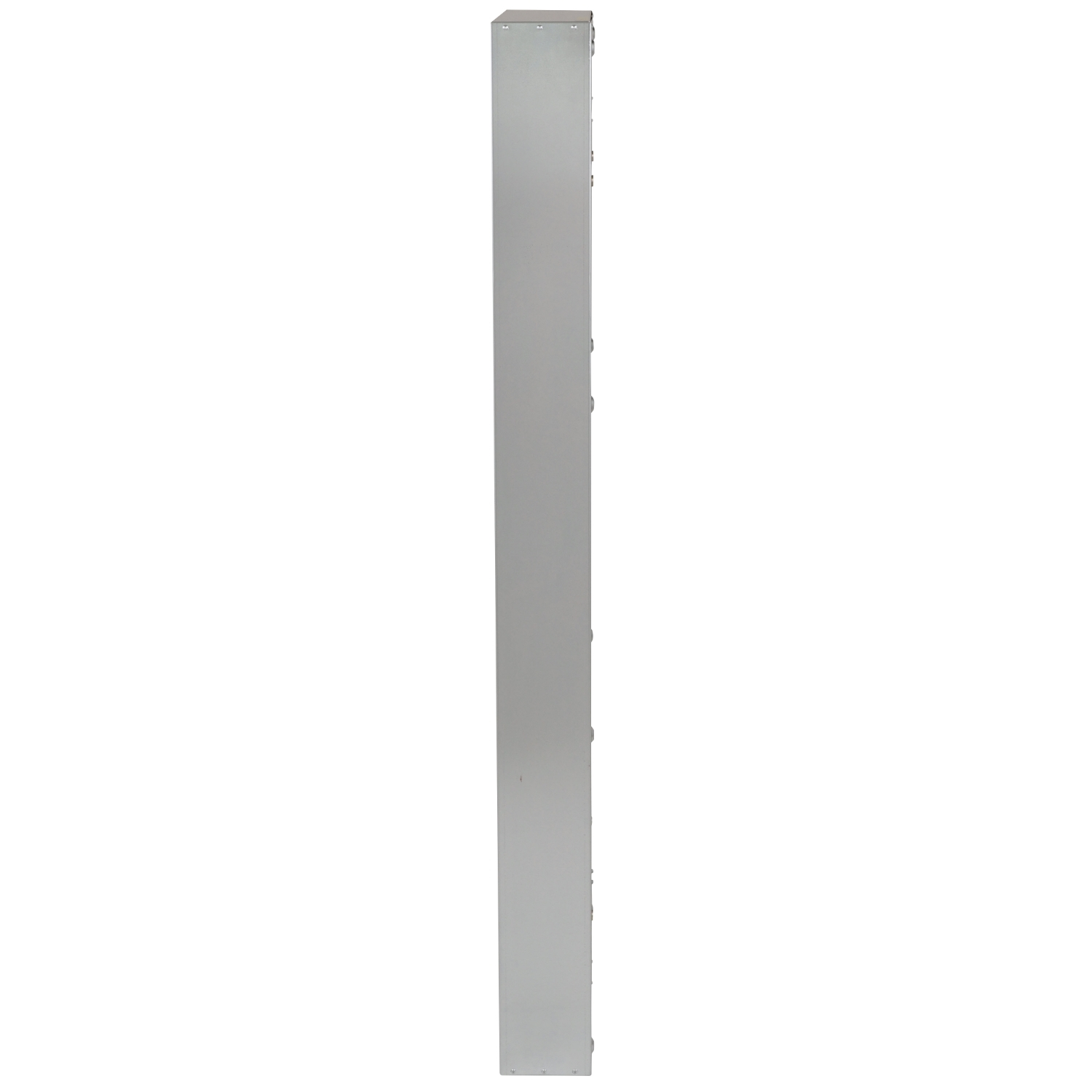

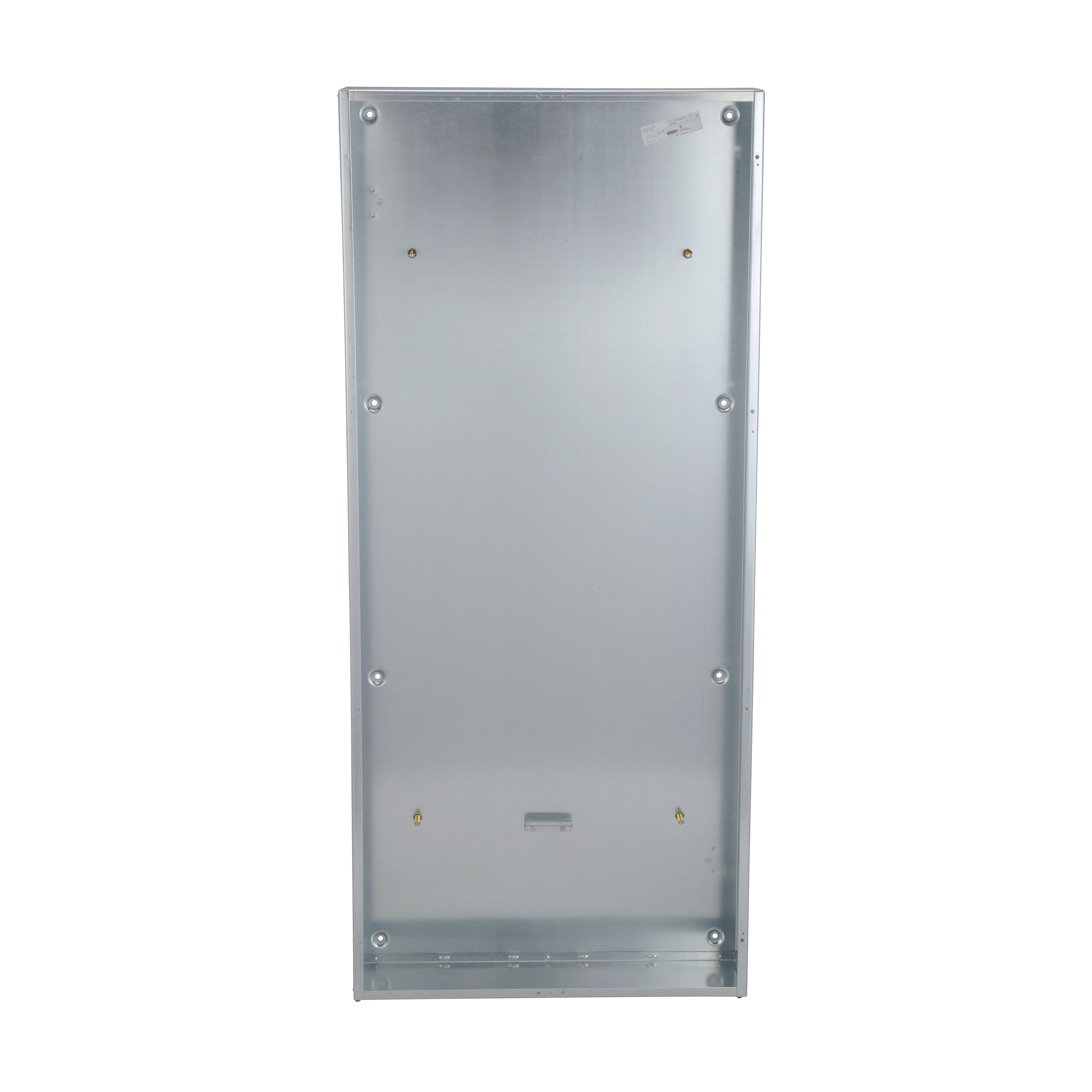

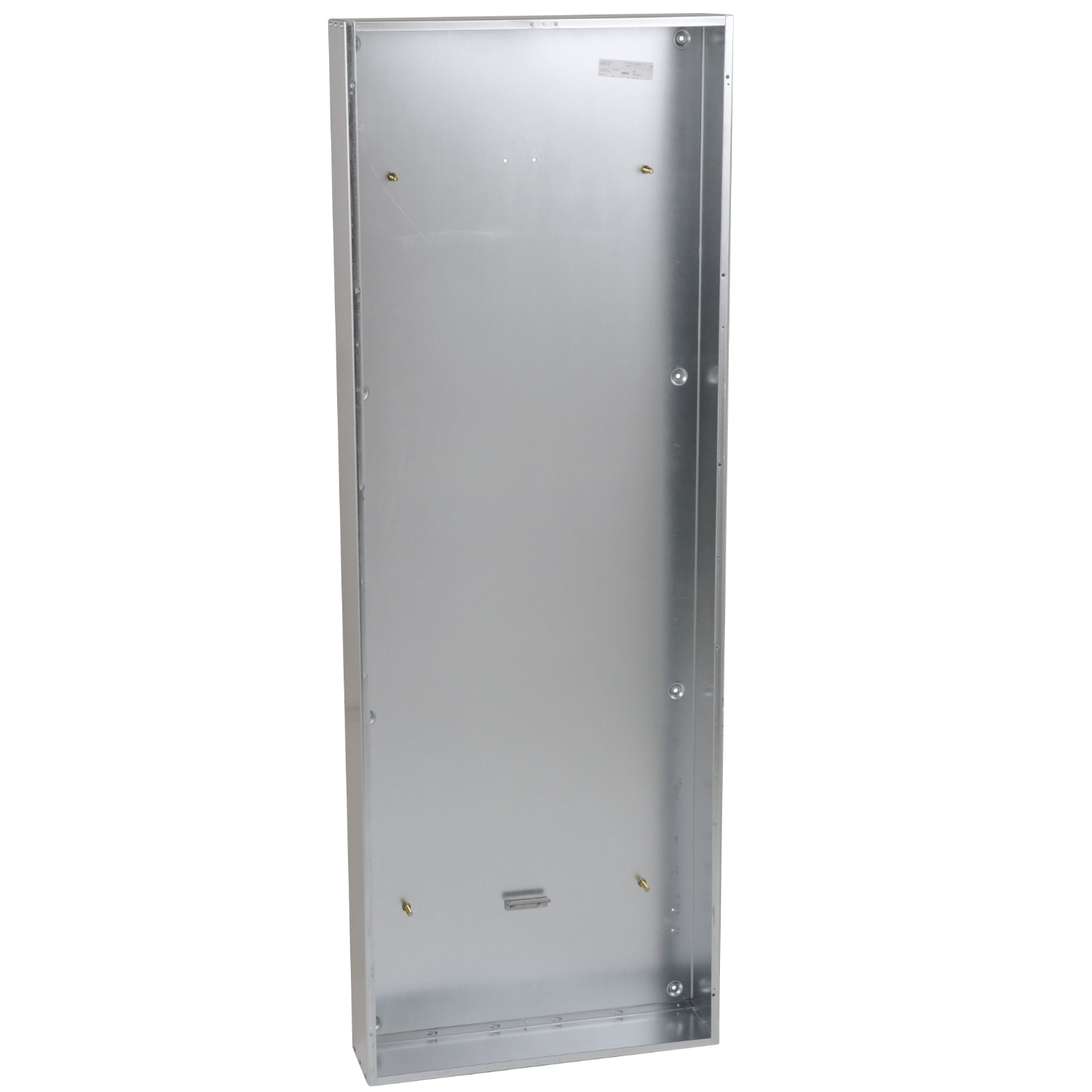

Square D HC3291B Panelboard Box 32 x 91 Inch

Product Description

The SQUARE D HC3291B panelboard box is designed for AC or DC systems. This HCM I-Line panelboard enclosure has a NEMA 1 degree of protection. It has current ratings of 225A, 400A & 800A. Dimensions for this enclosure are 2311 mm (H), 813 mm (W),210 mm (D). It is cULus Listed and comes with an 18 month warranty.

• Suitable for AC or DC systems
• cULus Listed
• NEMA 1 degree of protection

Product Highlights

Panelboard box for power distribution with NEMA 1 protection and an 18 month warranty.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: HC3291B
• Country of Origin: United States

Technical Specifications

• Catalog Number: HC3291B
• Brand: Square D
• Manufacturer: Square-D / Schneider
• Type: Enclosure
• Depth: 8-1/4 Inch
• Width: 813 mm
• Height: 91 Inch
• Amperage: 400 Amp
• Material: GALVANIZED
• Standard: UL || CSA
• Enclosure: NEMA 1
• Sub Brand: HCM
• Applications: Panelboard
• Line Rated Current: 225 A
• Operating Temperature: PER UL
• Country of Origin: United States
• Made in USA: Yes
• Panelboard Type: Panelboard Trim
• Interior Type: 800 Ampere HCM Series Main Lug Interior, 400 Ampere Main Circuit Breaker Interior
• Range Of Product: I-Line
• Product Or Component Type: enclosure
• Device Application: panelboard
• Device Short Name: HCM
• Nema Degree Of Protection: NEMA 1
• Enclosure Nominal Depth: 210 mm || 241 mm
• Enclosure Nominal Width: 813 mm
• Enclosure Nominal Height: 2311 mm
• Rohs Exemption Information: Yes
• Packaging Made With Recycled Cardboard: Yes
• Environmental Disclosure: ENVPEP1407017EN
• Packaging Without Single Use Plastic: No
• Pvc Free: Yes
• Eu Rohs Directive: Compliant with Exemptions
• Rated Current: 400A
• Primary brand: Square D by Schneider Electric
• Main function: Panelboard
• Product series / family name: I-Line
• Sub-range name: HCM
• Functions: Panelboard enclosure - type 1
• Degree of protection: NEMA 1
• Enclosure NEMA Rating: NEMA 1
• Features: Mercury Free
• Application: panelboard
• UNSPSC Code: 31260000
• Manufacturer Part Number: HC3291B
