Product Description

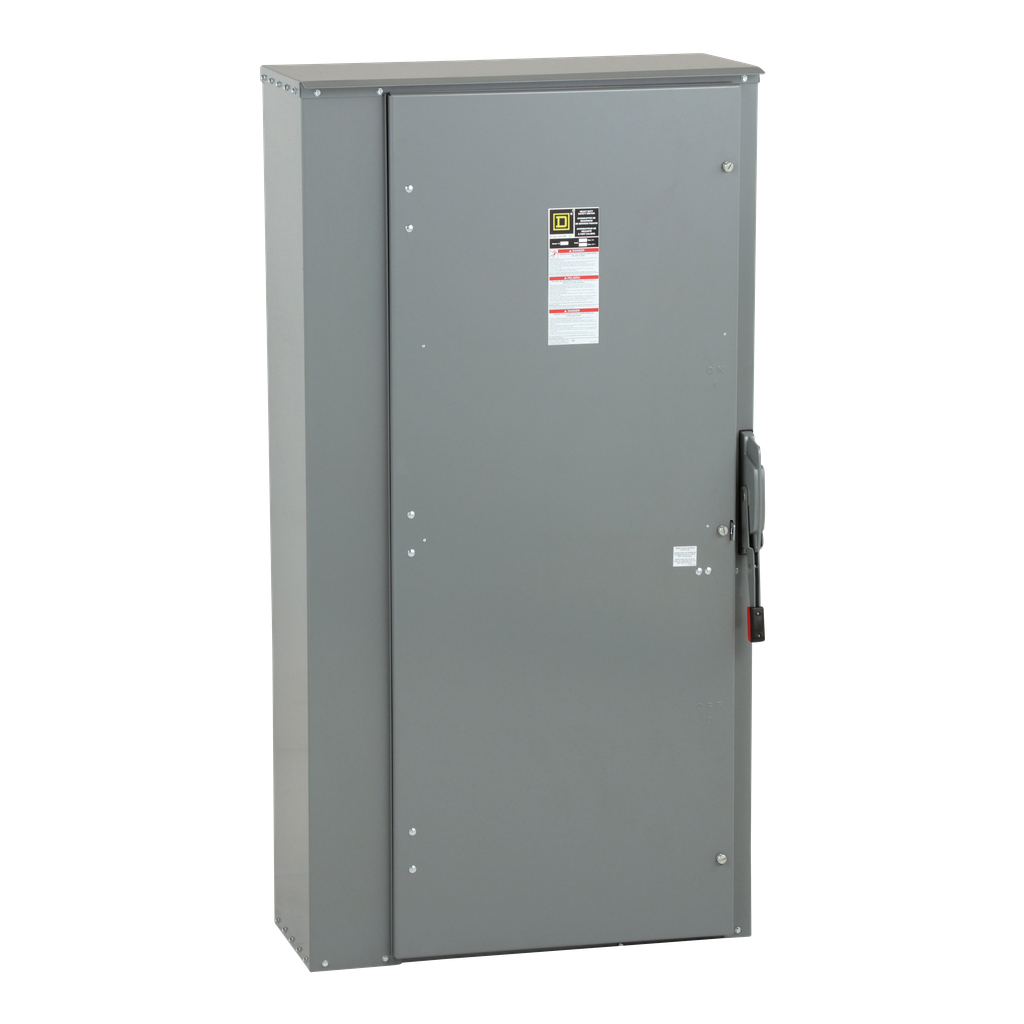

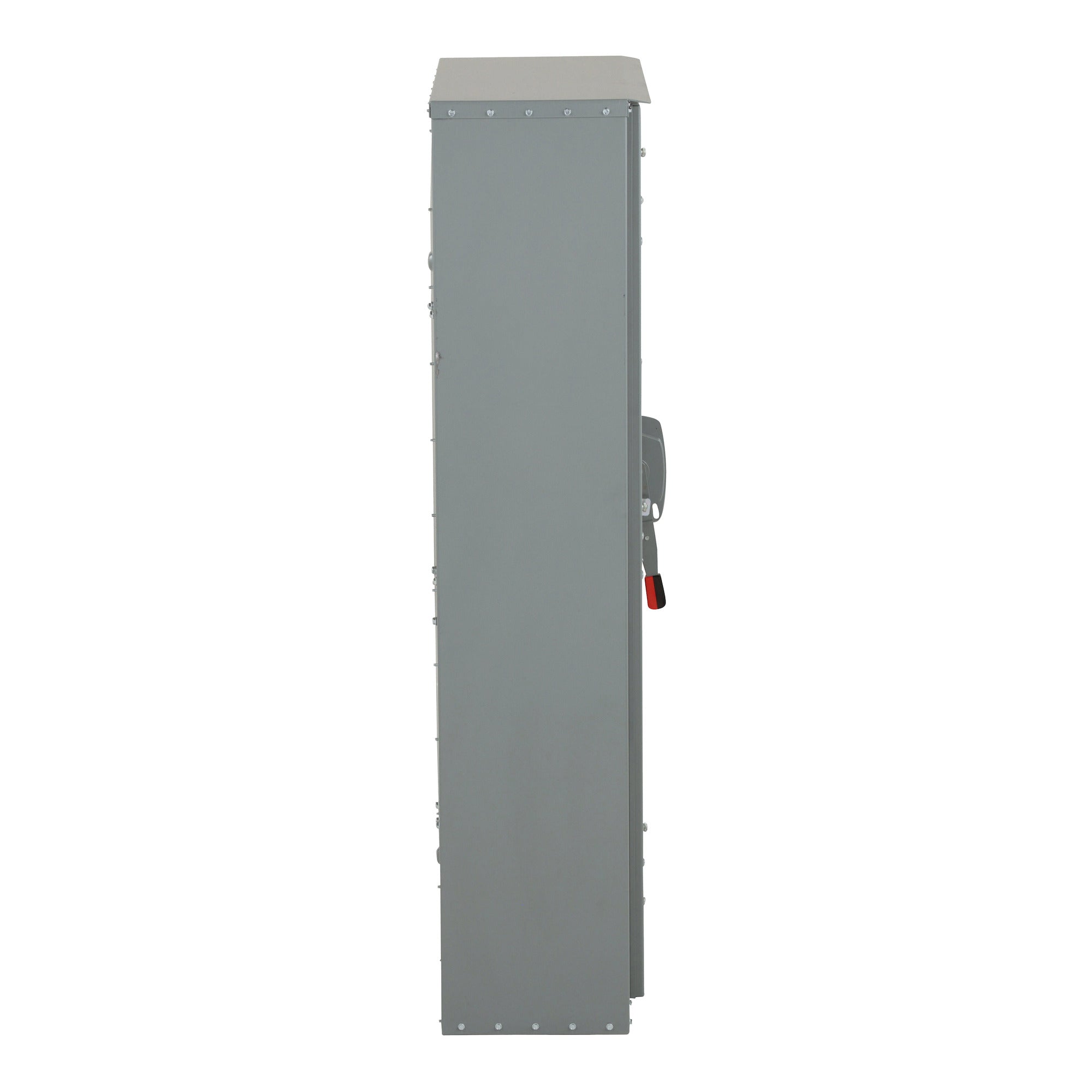

The Square D H368R is a heavy-duty safety switch designed for reliable performance in demanding electrical applications. This fusible safety switch is rated for 600 volts and can handle a current of 1200 amps. It features a three-pole design suitable for three-phase systems.
- Fusible design for enhanced protection
- Rated for up to 1200 amps
- NEMA 3R enclosure for outdoor/indoor use
Product Highlights
This safety switch is ideal for heavy-duty applications where reliability and safety are critical. Its fusible disconnect feature provides a level of protection against overloads and short circuits.
Product Information
Standard Information
-
Catalog Number: H368R
-
Brand: Square D
Technical Specifications
-
Current Rating: 1200 Amp
-
Voltage Rating: 600 VAC / DC
-
Number of Poles: 3
-
Dimensions: 17.75 in (Depth) x 36.62 in (Width) x 69.13 in (Height)
-
Weight: 373.02 lb
-
Fuse Type: Class L
-
NEMA Rating: 3R
-
Mounting Type: Surface
-
Country of Origin: United States
-
Warranty: 18 Months
