Square D H361NRB Switch Fusible Hd 600v 30a 3p Neutral

Product Description

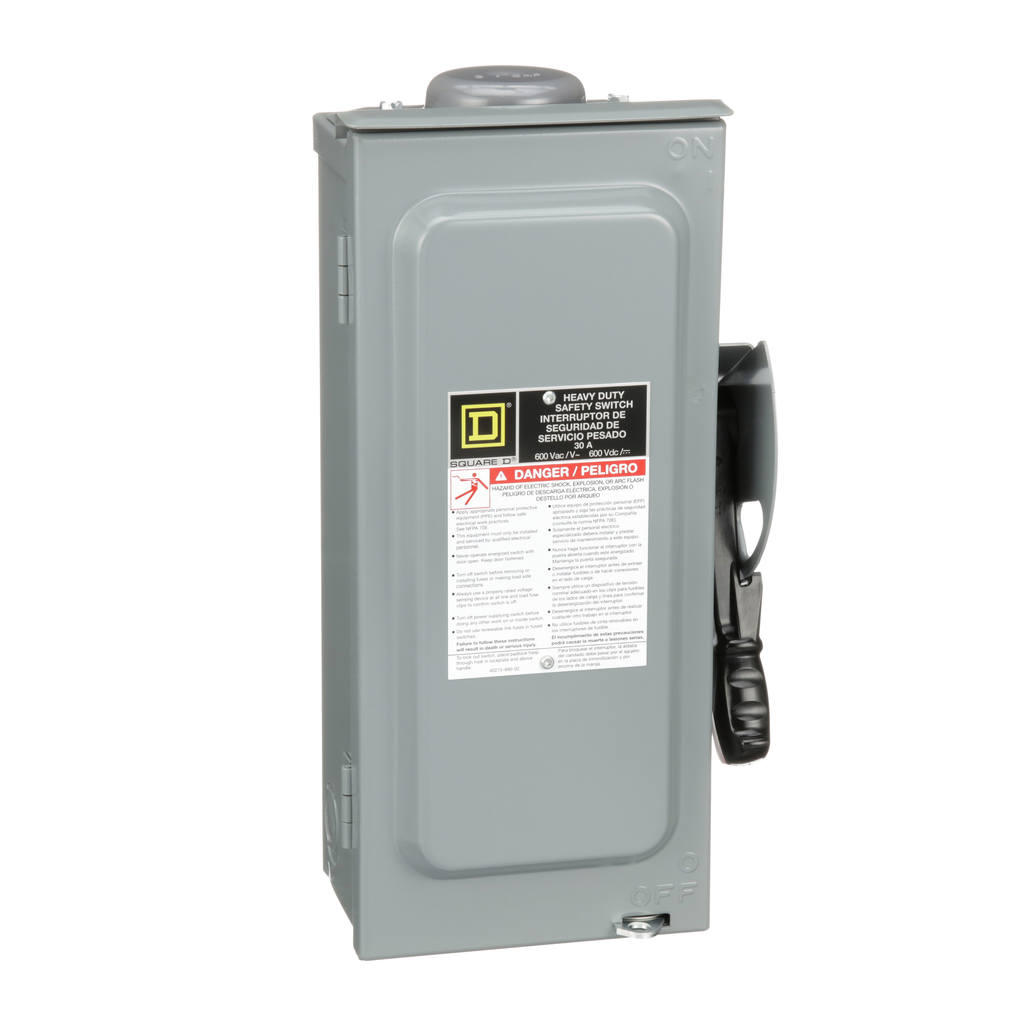

The Square D by Schneider Electric H361NRB is a heavy-duty safety switch rated for 600 volts and 30 amps. This fusible switch is designed for robust performance in demanding environments. It meets and exceeds NEMA KS-1 and UL98 standards with greater mechanical endurance. The quick-make, quick-break operating mechanism enhances safety features.

• UL listed with a NEMA 3R rating
• Accepts H, J, K, L, R fuse types
• Short circuit current rated from 10 kA to 200 kA

Product Highlights

This robust switch is perfect for heavy-duty applications, primarily in industrial and commercial settings. The factory-installed neutral makes installation easier.

Product Information

Standard Information

• Brand: Square D
• MPN: H361NRB

Technical Specifications

• Type: Single Throw Safety Switch, Fusible Disconnect
• Enclosure Material: Galvannealed Steel
• Amperage: 30 Amp
• Voltage: 600 Volt
• Weight: 8.82 lb
• Dimensions: 14.88 inches (Height), 4.86 inches (Depth), 7.55 inches (Width)
• Number of Poles: 3 Pole
• Ingress Protection Rating: NEMA 3R
