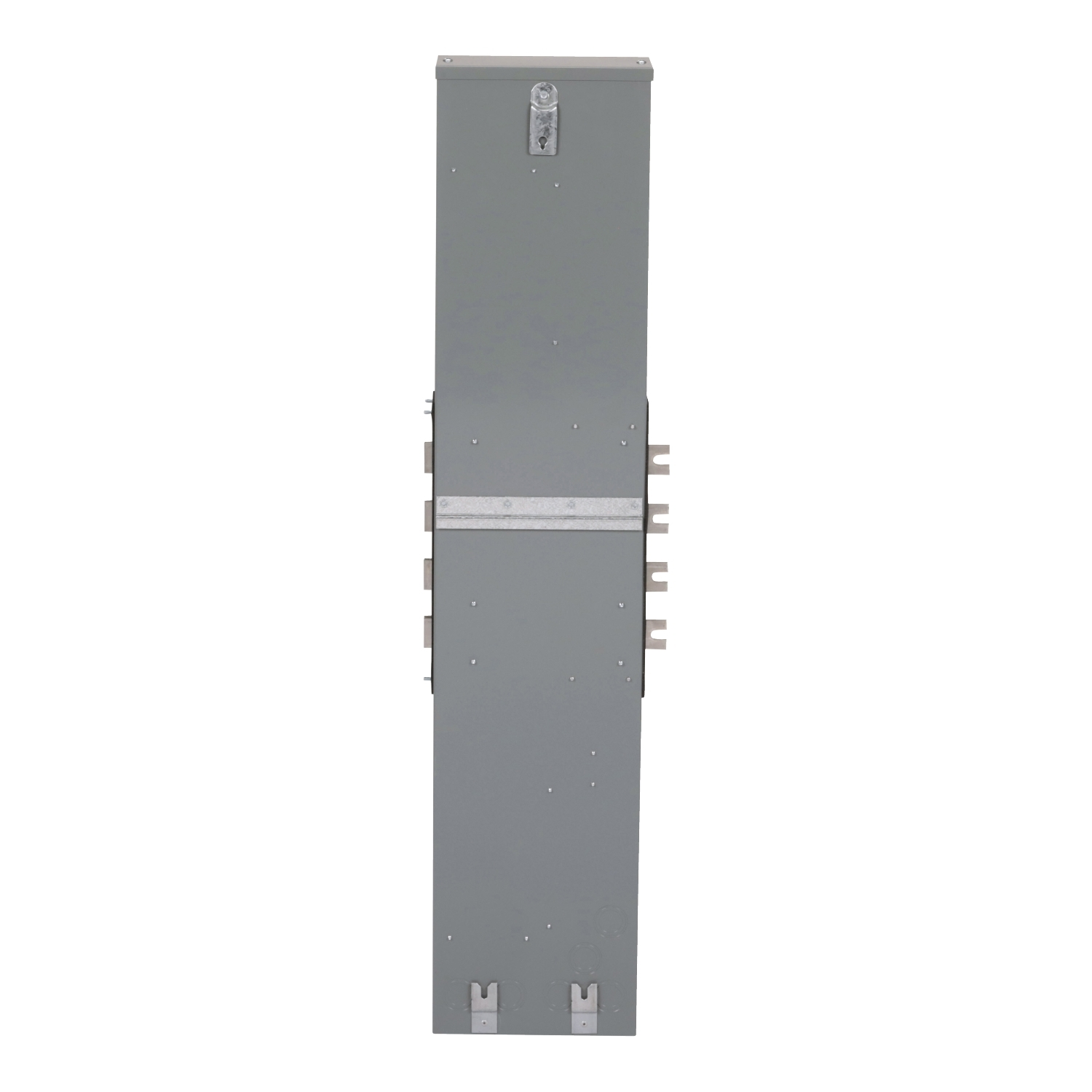

Square D EZM315125 meter center branch unit 125 amp

Product Description

The Square D EZM315125 meter center branch unit is an industry choice for multi-unit construction needs. EZM branch units come with meter sockets and provisions for mounting tenant circuit breakers. This ringed branch unit is rated for 125A and includes 5 five jaw sockets. The system voltage is 208Y/120 VAC and includes a 800 A aluminum busbar. Compliant with UL standards and NEMA 3R enclosure rating.

• Rated for 125A
• Includes 5 five jaw sockets
• Compliant with UL standards and NEMA 3R enclosure

Product Highlights

The Square D EZM315125 meter center branch unit is ideal for residential and commercial applications.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: EZM315125
• Country of Origin: Mexico

Technical Specifications

• Type: Ringed;Meter Center Branch Unit
• Brand: Square D
• Current: 125 Amp
• Voltage: 120 Volt
• Amperage: 125 Amp,800 Amp
• Material: Aluminium: Busbar
• Enclosure: 3R
• NEMA Size: 3R
• Sub Brand: METER-PAK
• Bus Rating: 800 A
• Mounting Type: Surface
• Certifications: UL
• Number of Jaws: 5 without jaw release
• Enclosure Rating: 3R
• Number of Phases: 1,3 Phase
• Enclosure Material: Steel
• Line Rated Current: 125 A
• Manufacturer: Schneider Electric
• Catalog Number: EZM315125
• Country of Origin: Mexico
• Made in USA: No
• Bypass Type: No Bypass
• Phase: 3
• Special Features: Aluminium: busbar
• Standard: UL Listed
• UPC: 785901402138
• GTIN: 00785901402138
• Item Type: Meter Center Branch Unit;Ringed
• Range Of Product: Meter-Pak
• Number Of Meter Sockets: 5
• Bus Rated Current: 800 A
• Product Or Component Type: Meter Center Branch Unit
• Meter Socket Type: ringed
• [Ue] Rated Operational Voltage: 208Y/120 V AC
• Nema Degree Of Protection: NEMA 3R
• Wiring Configuration: 4-wire
• Maximum Amperage: 800A Bus / 125A Each Gang
• Model: EZM315125
• Number of Outlets: 5
• Application: Metering
• Suitable For: Exterior, Wall
• [Ith] Conventional Free Air Thermal Current: 125 A
• Sockets: 5
• Poles: 3
• Amps: 125
• Volts AC: 120/240
• IP/NEMA Rating: NEMA 3R
