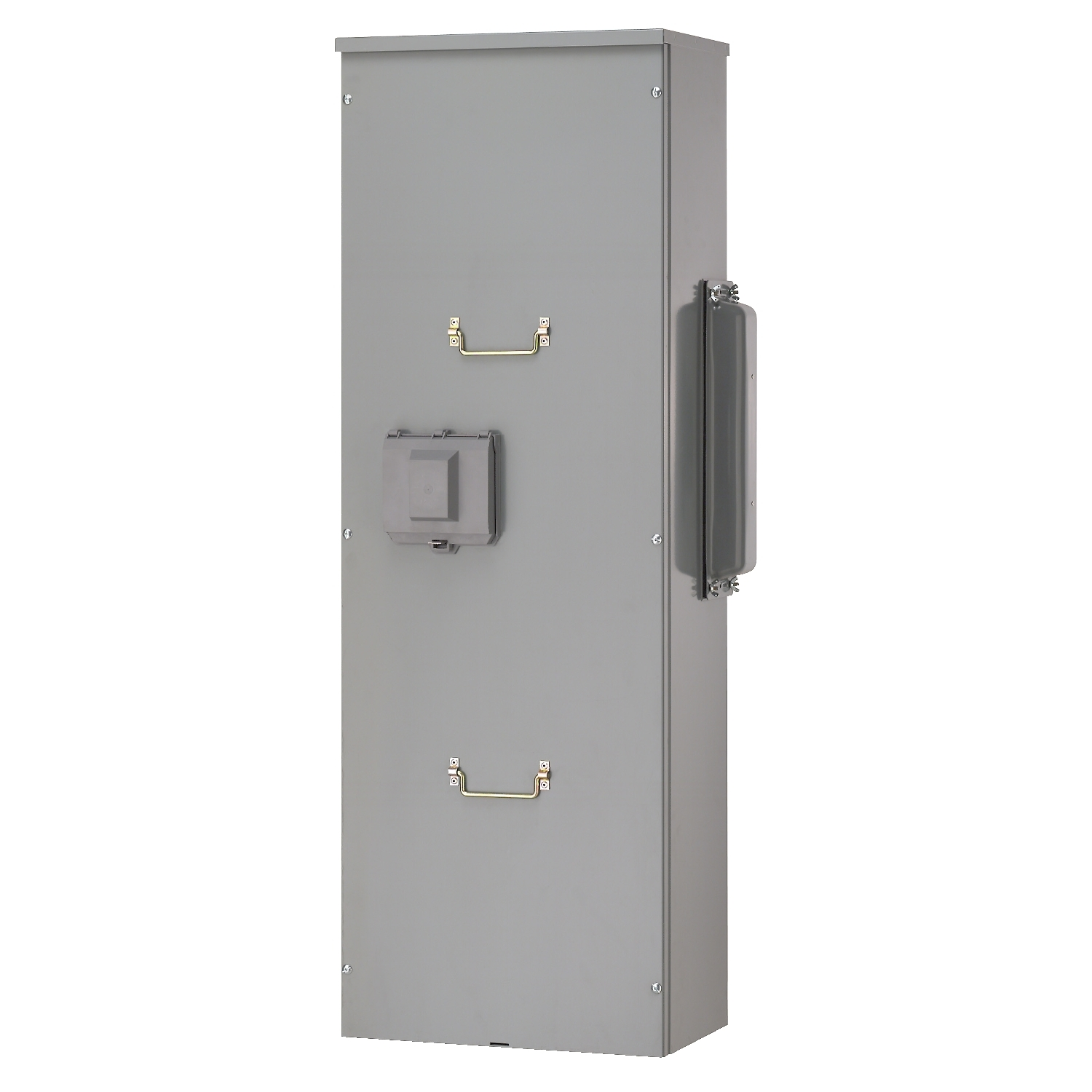

Square D EZM1800CB EZM Meter-Pak 800 Amp 1-Phase

Product Description

The Square D EZM1800CB EZ Meter-Pak meter center provides reliable multi-metering equipment for residential and commercial construction. It accepts 120/240VAC incoming service from overhead or underground feeds. The unit is rated for 800A and has a short circuit current rating of 65kA. The enclosure is painted steel and NEMA 3R rated.

• Main circuit breaker
• Aluminum busbar
• Suitable for use as service equipment with required grounding and bonding

Product Highlights

The Square D EZM1800CB meter center offers a compact footprint for easy installation and complies with UL standards.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: EZM1800CB
• Country of Origin: Mexico

Technical Specifications

• Type: METER CENTER MAIN UNIT
• Brand: Square D
• Depth: 11-1/2 Inch
• Width: 18.66 in
• Height: 53.97 Inch
• Voltage: 120/240 Volt
• Amperage: 800 Amp
• Material: Aluminium: Busbar
• Enclosure: NEMA 3R
• Sub Brand: EZ METER-PAK
• Cable Entry: OH-UG
• Mounting Type: Surface
• Certifications: UL
• Number of Phases: 1 Phase
• Country of Origin: Mexico
• Enclosure Material: Steel
• Catalog Number: EZM1800CB
• Manufacturer: Schneider Electric
• Made in USA: No
• Phase: 1
• Special Features: Main Circuit Breaker;Aluminium: busbar
• UPC: 785901304654
• GTIN: 00785901304654
• Item Type: Meter center main unit
• Circuit Configuration: 1-Phase 3-Wire
• Current Rating: 800 Ampere
• Voltage Rating: 120/240 VAC
• Interrupting Rating: 65000 Ampere (Symmetrical)
• Wire Size: (3) 3/0 AWG to 500 KCMIL (Aluminum/Copper, Line)
• Enclosure Type: NEMA 3R, Indoor/Rainproof
• Feed Location: Overhead/Underground
• Size: 18.66 Inch W x 11.5 Inch D x 53.97 Inch H
• Approval: UL
• Busbar Material: Aluminum
• Includes: Aluminum Horizontal Cross Bus Bar
• Range Of Product: EZ meter-pak
• Main Type: Main Circuit Breaker
• Product Or Component Type: meter center main unit
• Service Feed Location: OH || UG
• [Ue] Rated Operational Voltage: 120/240 V AC
• Bus Rated Current: 800 A
• Main Rated Current: 800 A
• Electrical Connection: lugs 1 AWG 6...300 kcmil aluminium/copper) ground || lugs 3 AWG 3/0...500 kcmil aluminium/copper) line || lugs 3 AWG 3/0...500 kcmil aluminium/copper) neutral
• Wiring Configuration: 3-wire
• Product Certifications: UL Listed
• Nema Degree Of Protection: NEMA 3R
• Amperage Rating: 800 A
• Dimensions: 53.97 in H x 18.66 in W x 11.5 in D
• Manufacturer Name: Schneider Electric
• Series: EZM
• Current Type: AC
• Maximum Amperage: 800 A
• Model: EZM1800CB
• MPN: EZM1800CB
