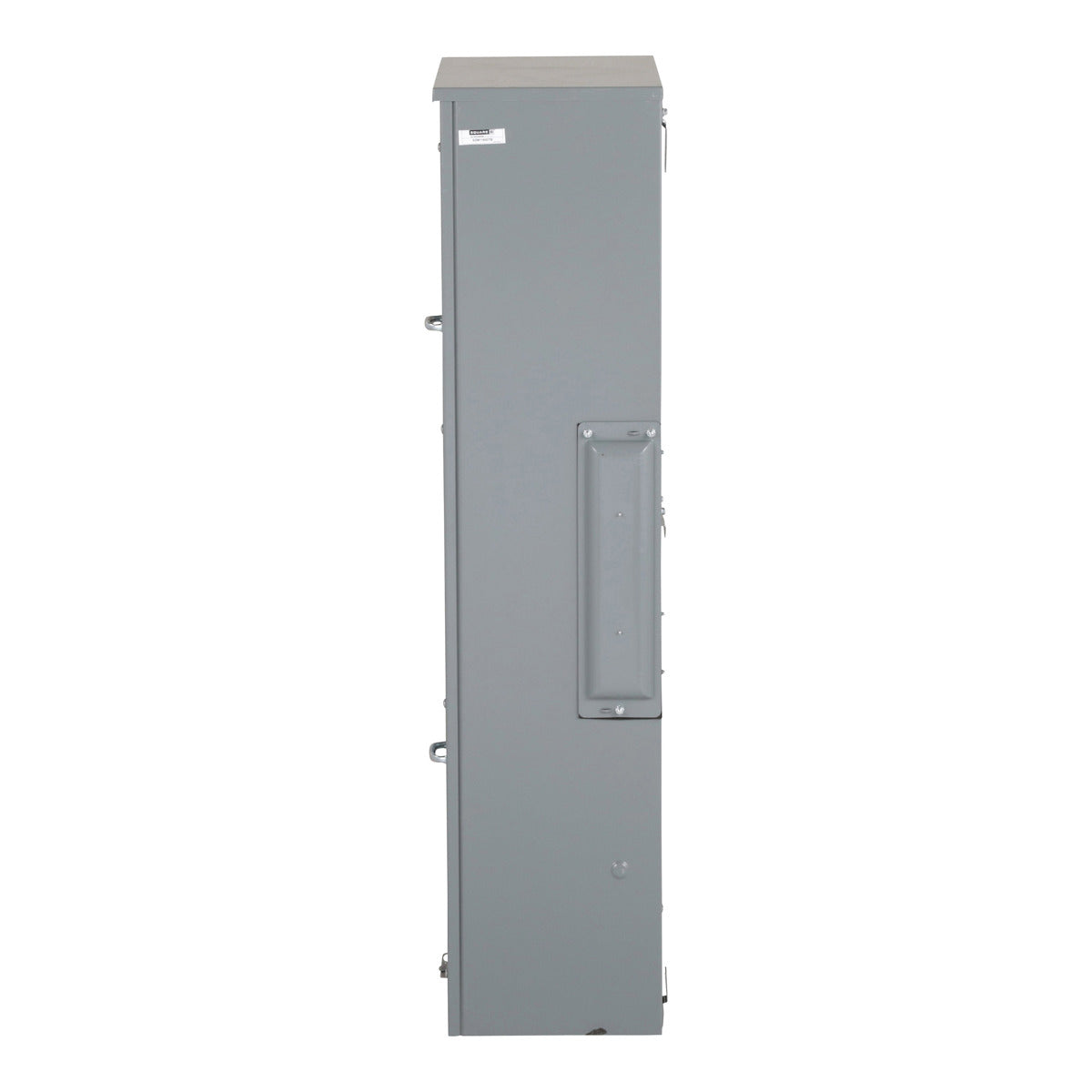

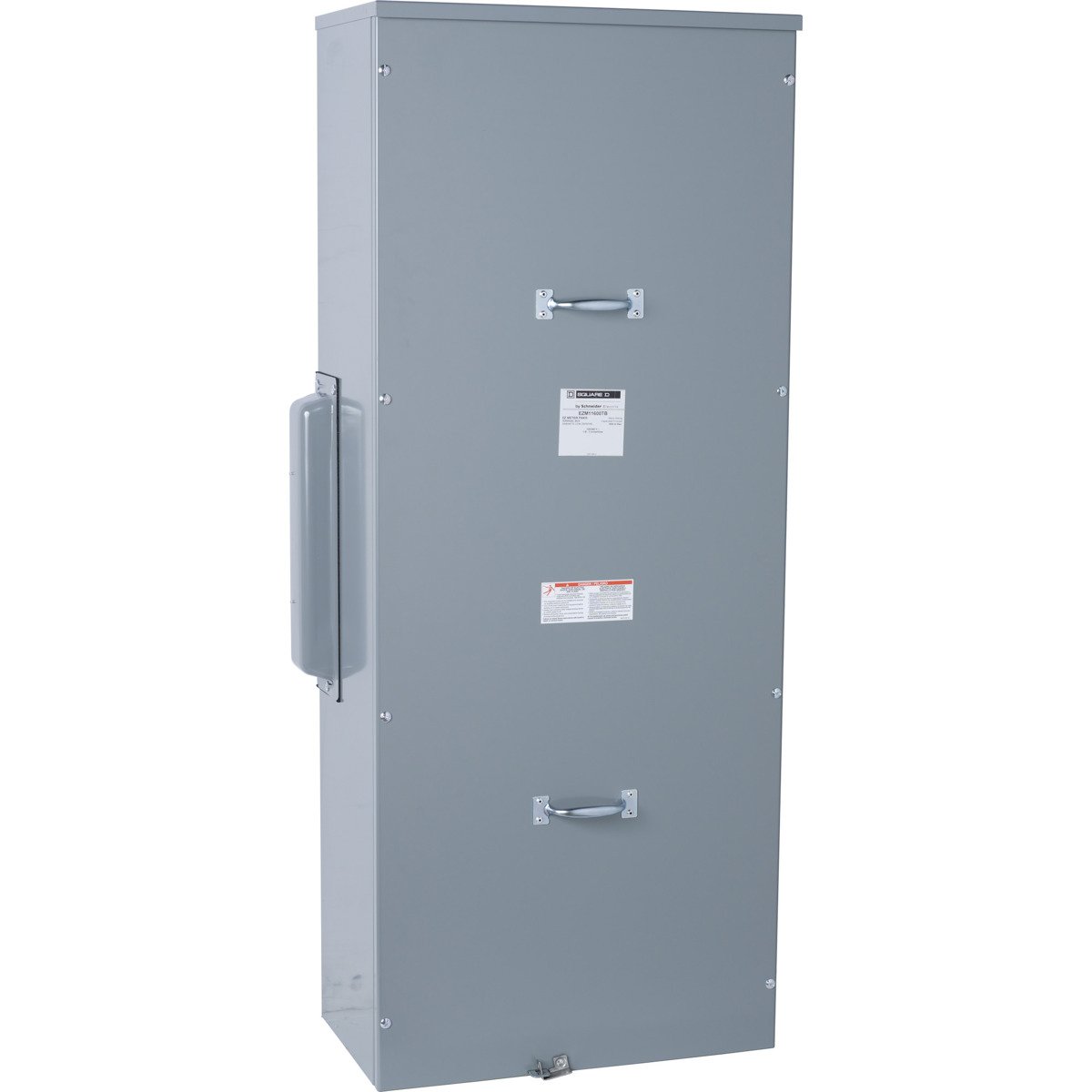

Square D EZM11600TB Main Lugs Unit, EZ M 1600 A

SCHNEIDER ELECTRIC
Brand: SCHNEIDER ELECTRIC
SKU: EZM11600TB
Availability: Out Of Stock
$2,183.86
$2,183.86
LTL Delivery

This product weighs 140 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Square D EZM11600TB main lug terminal box device is designed for overhead or underground feed applications. This meter center main unit has a current rating of 1600 A and a bus bar rating of 800 A. It is available as service equipment for 1 phase, 3 wires applications. Visi-Tite nut eliminates time-consuming torque readings.

  • Main lug terminal box device
  • Overhead or underground feed
  • Current rating of 1600 A

Product Highlights

The EZM11600TB provides solutions for multi-unit construction needs with a compact footprint for easy installation.

Product Information

Standard Information

  • Brand: SQUARE D
  • Manufacturer Part Number: EZM11600TB
  • Country of Origin: Mexico
Technical Specifications
Type
Meter center main unit
Brand
Square D
Depth
13 Inch
Width
22.33 in
Height
51.58 Inch
Voltage
120/240 Volt
Amperage
1.6k Amp
Material
Aluminium/copper: Busbar
Enclosure
3R
NEMA Size
3R
Sub Brand
METER-PAK
Cable Entry
OH/UG
Mounting Type
Surface
Certifications
UL
Number of Phases
1 Phase
Enclosure Material
Steel
Catalog Number
EZM11600TB
Manufacturer
Schneider Electric
Country of Origin
Mexico
Made in USA
No
Special Features
Main Lugs;Aluminium/copper: busbar
UPC
785901304876
GTIN
00785901304876
Item Type
Meter center main unit
Amperage Rating
1600 A
Feed Type
Overhead/Underground
Operating Temperature
NEMA 3R
Terminal Type
Lug
Voltage Rating
120/240 VAC
Wire Size
(1) Cable #6 AWG to 300 kcmil Ground/(6) Cables #3/0 AWG to 600 kcmil Line/(6) Cables #3/0 AWG to 600 kcmil Neutral
Component
Meter Stack
Maximum Voltage
120/240 VAC
