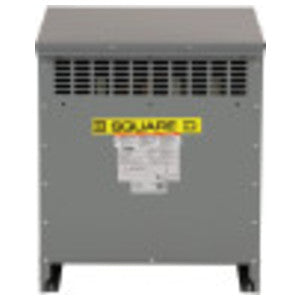

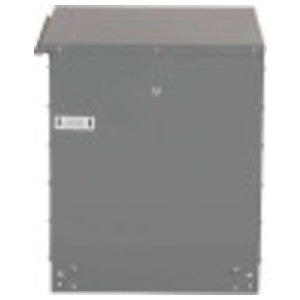

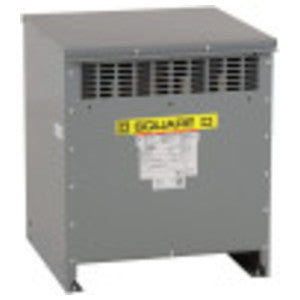

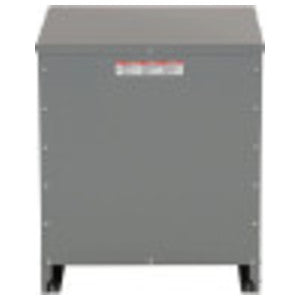

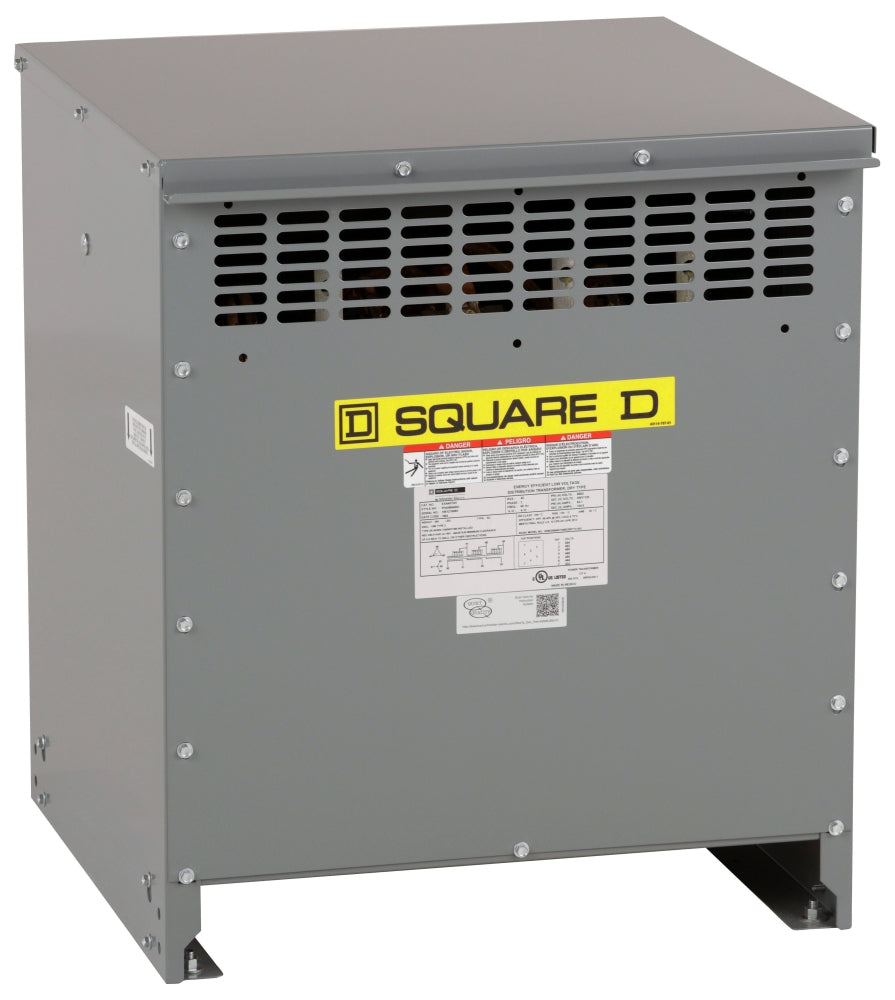

Square D EXN45T3H Transformer Dry Type 45kVA 480 Delta 208Y/120

Product Description

Square D EXN45T3H Transformer Dry Type is designed for efficient energy distribution in a variety of settings. This transformer has a power rating of 45 kilovolt-amperes and features a primary voltage of 480 volts AC Delta with a secondary voltage of 208Y/120 volts. Its robust and compact design makes it suitable for different installations.

• 45 kVA power rating
• 480V Delta primary voltage
• Designed for indoor installation, field convertible for outdoor use

Product Highlights

The EXN45T3H transformer complies with DOE energy conservation standards and ensures reliable performance in various conditions.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Sub-Category: Dry Type Energy Efficient Transformer
• Frequency Rating: 60 Hertz

Technical Specifications

• Width: 25.51 inches
• Depth: 25.94 inches
• Height: 29.33 inches
• Weight: 369.01 pounds
• Temperature Rise: 150 degrees Celsius
• Insulation Type: Aluminum winding
• Sound Level: 39 Decibel
• Insulation Standard: NEMA ST-20, Reach, RoHS
