Description

Product Description

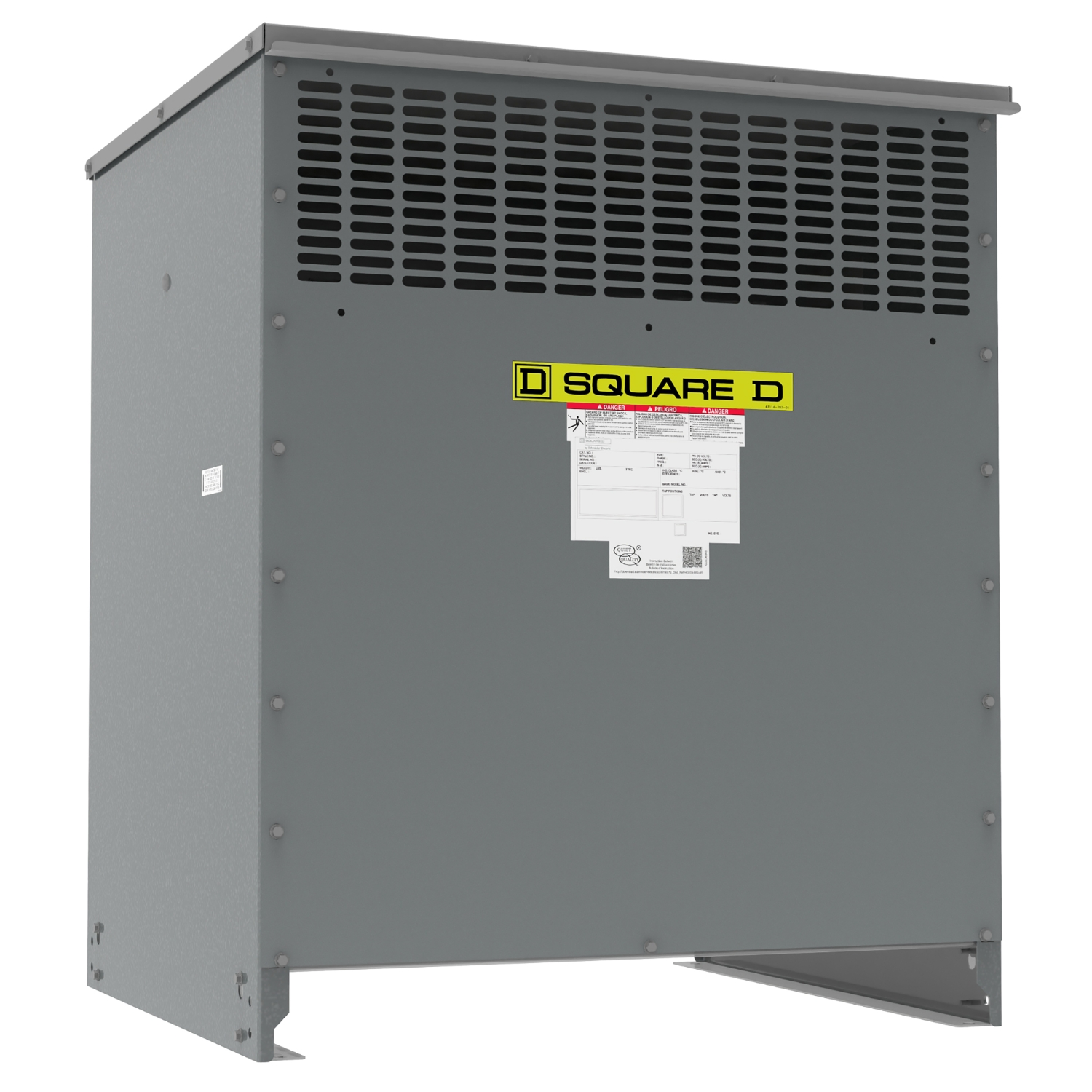

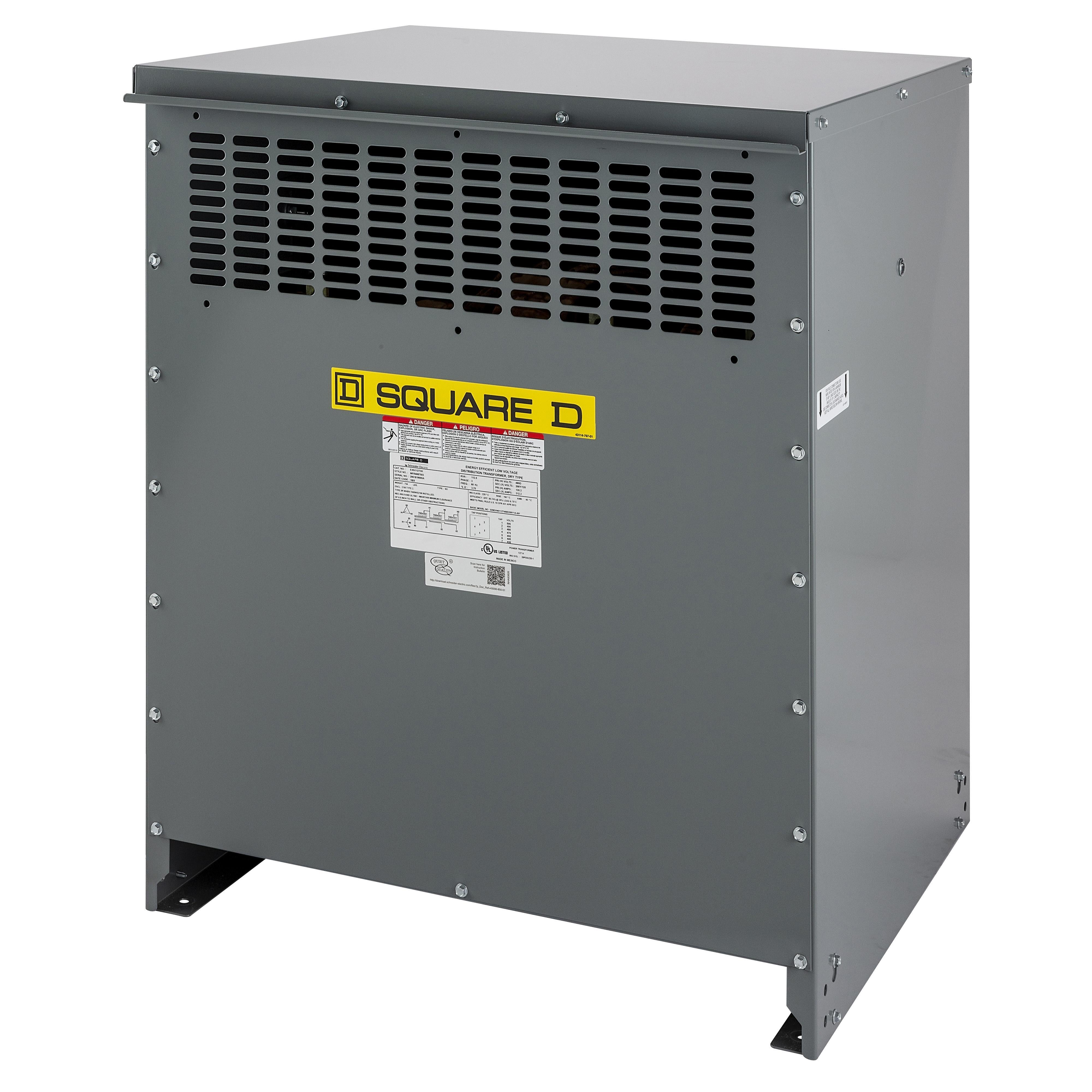

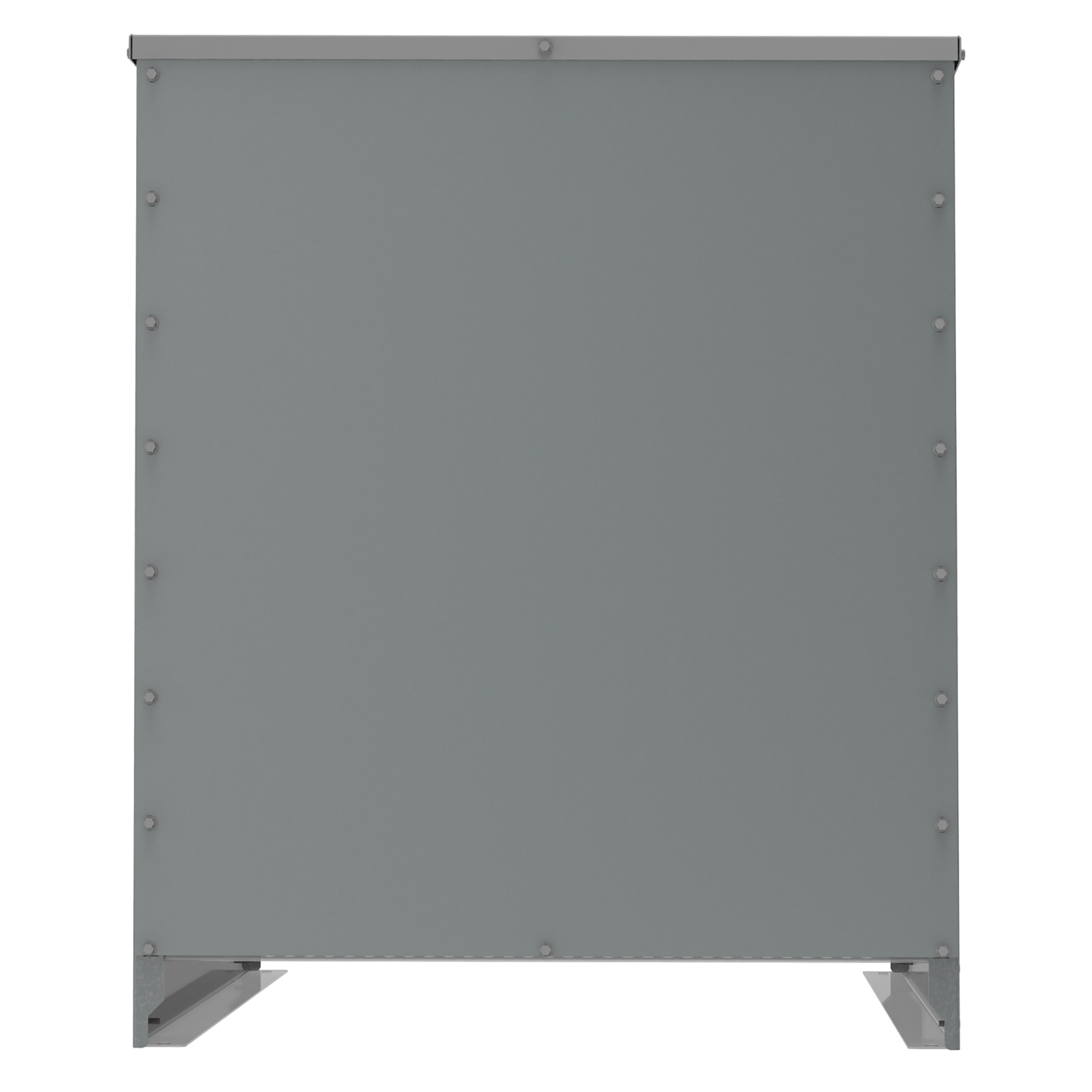

The Square D EXN150T3H is a three-phase low voltage dry type distribution transformer that complies with DOE energy conservation standards and NRCan minimum energy efficiency levels. This 150kVA transformer features a 480V primary and 208Y/120V secondary with aluminum windings and a 220 insulation system designed for a 150 degree C temperature rise.

  • Complies with DOE energy conservation standards and Natural Resources Canada (NRCan) minimum energy efficiency levels.
  • Terminals accommodate wire ranges sized for 125% of the secondary nameplate current and 250% of the primary nameplate current.
  • Shipped as Type 2 for indoor installation, field convertible to Type 3R via weathershield for outdoor installation.

Product Highlights

This Square D transformer is air-cooled, floor mounted, and designed to function with other Square D equipment. It has a low sound level, and its inrush is coordinated to meet identified breaker trip curves.

Product Information

Standard Information

  • Brand: SQUARE D
  • Manufacturer Part Number: EXN150T3H
  • Country of Origin: Mexico
Technical Specifications
Brand
Square D
Manufacturer
Schneider Electric
MPN
EXN150T3H
Number of Phases
3 Phase
Power Rating
150 Kilovolt Amp
Primary Voltage
480 V
Secondary Voltage
208Y/120 V
Material
Aluminum
Enclosure
NEMA 2/3R
Mounting
Floor
Standard
CSA C22.2 No 47,NEMA ST-20,UL 1561
Efficiency
98.89 % At 35 % Load Factor , 75.0 C
Temperature Rise
150 °C
Frequency Rating
60 Hertz
Winding Type
Aluminum
Insulation Temperature
220 Deg C
Applicable Standard
NEMA ST-20, Reach, RoHS
Country of Origin
Mexico
Taps
(2) 2.5 Percent FCAN x (4) 2.5 Percent FCBN
Sound Level
44 Decibel
Rated Operational Power In Va
150 kVA
Type Of Cooling
natural convection
Degree Of Protection
UL type 2 || UL type 3R, with 7400WS22M
Number Of Tap-Offs
2 2.5 % FCAN || 4 2.5 % FCBN
X/R Ratio
1.47
Noise Level
47 dB || 3 dB NEMA ST-20
Mounting Support
floor || floor, with 7400FMB || ceiling, with 7400CMB22M
Inrush Current
2714 A
[Uimp] Rated Impulse Withstand Voltage
10 kV
[Ipk] Rated Peak Withstand Current
13.43 kA
Percentage Impedance Voltage
3.10 %
Percentage Reactance
2.48 %
Number Of Mounting Holes
4 Ø: 13 mm
Tap Loss
301 no load (core loss) || 2909 load loss (coil loss)
Primary Operational Current
180.42-180.42 A 416.36 A 150 kVA
Electrical Connection
4 Hole Nema Pad primary 11.1 mm || 4 Hole Nema Pad secondary 11.1 mm || 6 Hole Nema Pad sec - XO 11.1 mm
Number of Taps
(2) 2.5% FCAN/(4) 2.5% FCBN
Enclosure Type
NEMA 2/3R/ST-20
Insulation
Class 220
Maximum Amperage Rating
180.42 A, 416.36 A, 150 kVA Operational/13.43 kA Let Through Current
Mounting type
Ceiling/Floor
Range Of Product
Square D
Product Or Component Type
transformer
Transformer Type
energy efficient
Device Application
low voltage electrical distribution
Device Short Name
DOE 2016
Phase
3 phase
Made in USA
Yes
