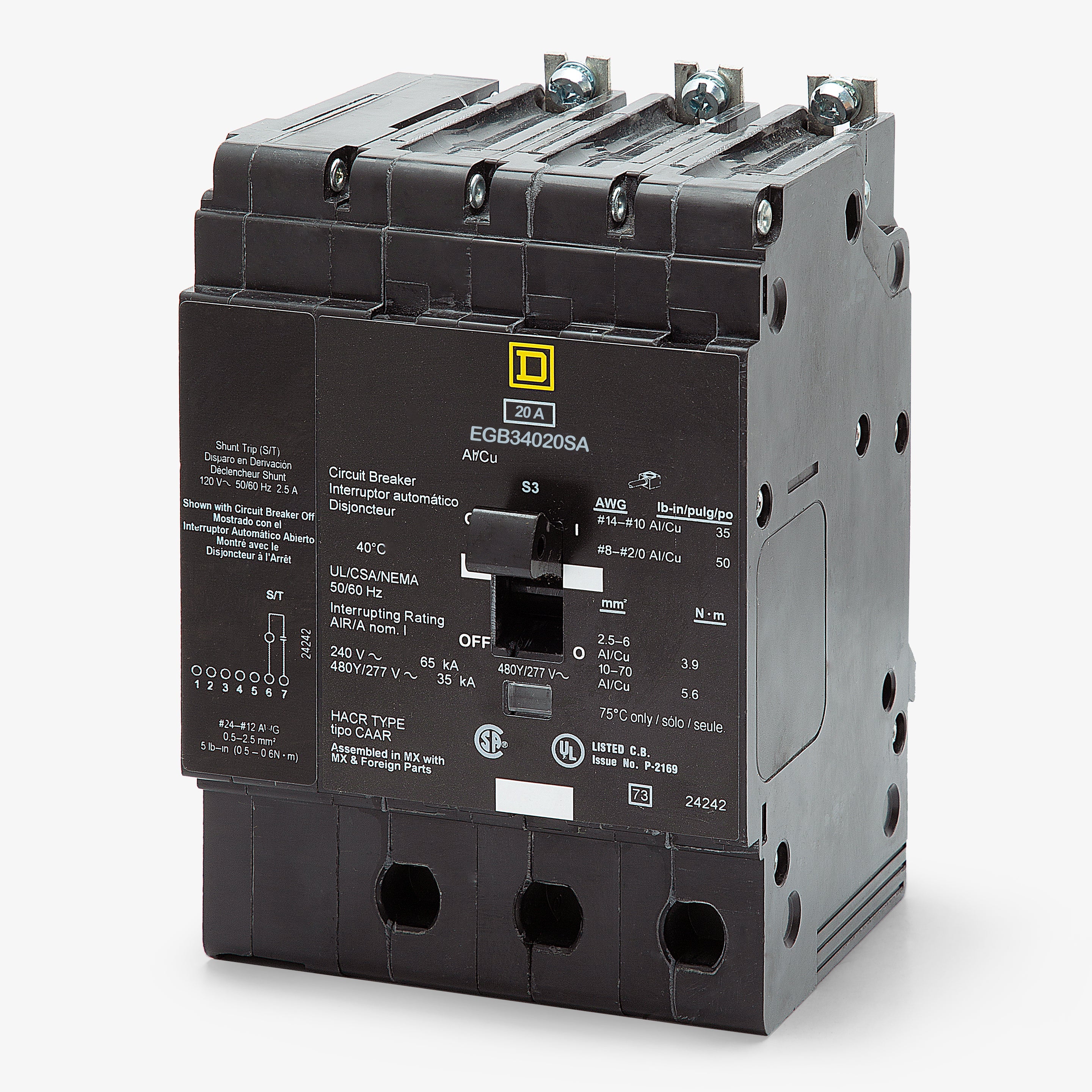

Square D EGB34020SA Miniature Circuit Breaker 20 Amp

Product Description

The Square D EGB34020SA is a miniature circuit breaker designed for Square D NF Panelboards. This 3-pole breaker provides overload and short circuit protection with a thermal-magnetic trip unit and signal indicator. Operating at 480Y/277 VAC, it has a 20 Amp current rating and a 65 kA max interrupt rating at 120 VAC. It is calibrated for 40 degrees C and includes a shunt trip.

• E-Frame Breaker for Lighting Panelboard applications
• Provides superior overload and short circuit protection
• Includes a thermal-magnetic trip unit and signal indicator

Product Highlights

The EGB34020SA is UL Listed as High Intensity Discharge and HACR rated. Mounting bolts are used to hold these breakers in place.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: EGB34020SA
• Country of Origin: Mexico

Technical Specifications

• Type: MINIATURE CIRCUIT-BREAKER
• Brand: Square D
• Depth: 4.05 Inch
• Frame: E-FRAME
• Width: 3.92 in
• Height: 5.66 Inch
• Length: 4.05 Inch
• Voltage: 277 Volt
• Amperage: 20 Amp
• Sub Brand: EGB
• Trip Type: THERMAL-MAGNETIC
• Net Weight: 4 lb
• Trip Range: 875-875 A
• Applications: HACR RATED-HID RATED,NF PANELBOARD
• Mounting Type: Bolt-On

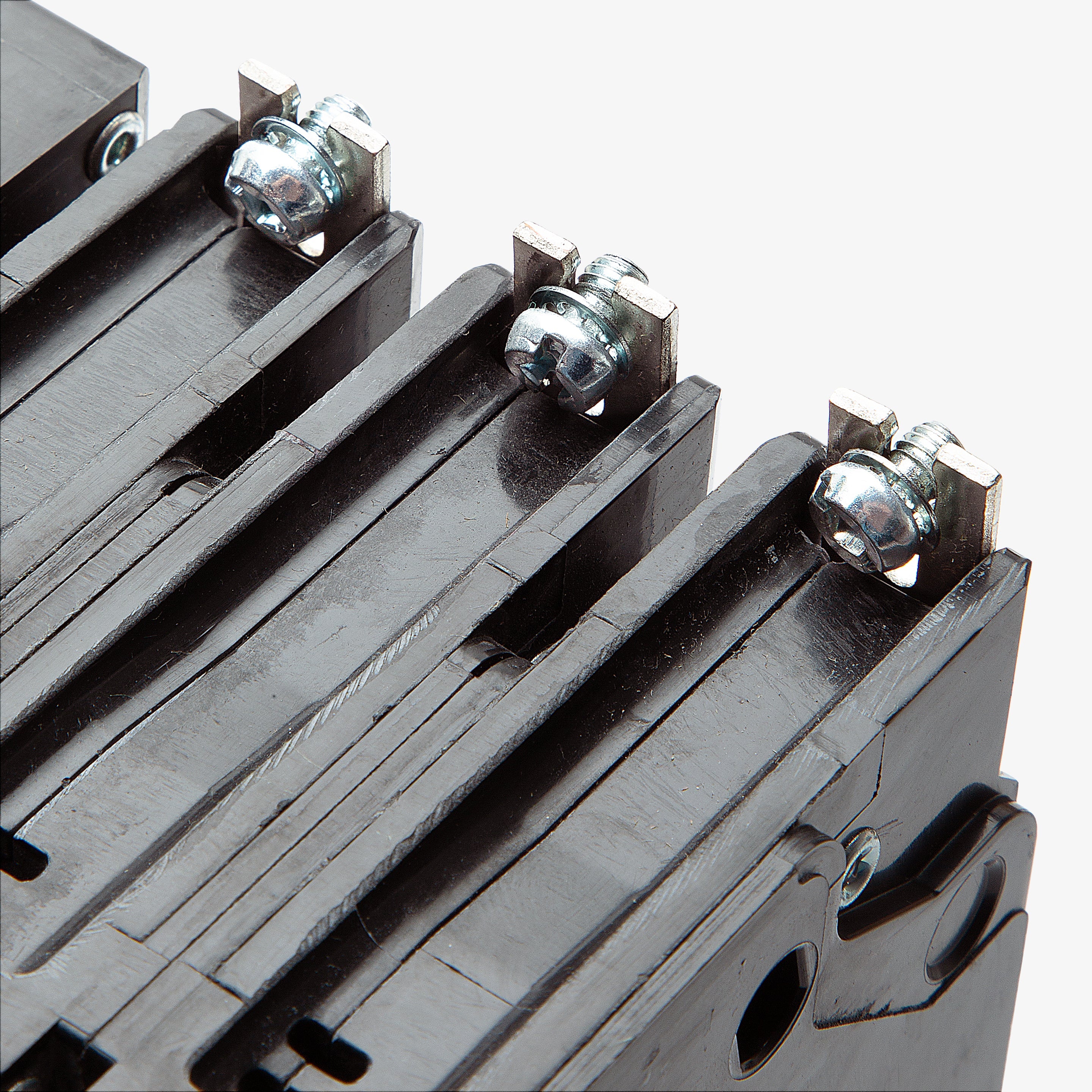

• TC Connection: AWG 12...AWG 6 ALUMINIUM-AWG 14...AWG 6 COPPER,LUGS ALUMINIUM
• Certifications: CULus
• Number of Poles: 3 Pole
• Interrupt Rating: 35, 65 kAIC
• Line Rated Current: 20 A
• Operating Temperature: 40 Adegrees C
• Voltage Rating: 120/240/277 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA)
• Current Rating: 20 Ampere
• Trip Setting: 270 to 875 Ampere
• Installation: Bolt-On
• Application: Lighting
• Used On: Class 515 NF Series Panelboard
• Approval: UL, CSA, NOM 117
• Frame Type: E
• Tripping Method: Thermal Magnetic
• Terminal Wire Size: 12 to 6 AWG (Aluminum), 14 to 6 AWG (Copper)
• Series: EGB
• Part Number: EGB34020SA
• Poles: 3
• Phase: 3
• AIC Rating: 65kA @ 120VAC, 65kA @ 240VAC, 35kA @ 480Y/277VAC
• Mounting Style: Bolt-On
• Terminal Type: Lugs
• For Use With: Square D NF Panelboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 14-6 AWG (Cu), 12-6 AWG (Al)
• Max Wire: 6 AWG
• Min Wire: 14 AWG (Cu), 12 AWG (Al)
• Available Options: Auxiliary Switch, Alarm Switch, Padlock Attachment
• Accessories: Shunt Trip (Factory Installed), Load Side Lugs Included
• Standards: CSA C22.2 No. 5, NEMA AB 1, NFPA 70, UL 489
• Temp Rating: 40C
• Construction Features: HACR Rated, HID Rated, Visual Trip Indicator
• Alternate Catalog Number: EGB34020SA
• ARRA Compliant: N
• Buy American Compliant: N
• Catalog Number: EGB34020SA
• Connection: AWG 12...AWG 6 ALUMINIUM-AWG 14...AWG 6 COPPER,LUGS ALUMINIUM
• EU RoHS Indicator: Y
• Material: Thermoset Composite Resin
• Number Of Poles: 3
• Temperature Rating: 104 °F
• UNSPSC: 39121603
• Amperage Rating: 20 A
• Dimensions: 5.8 in H x 2.94 in W x 4.05 in D
