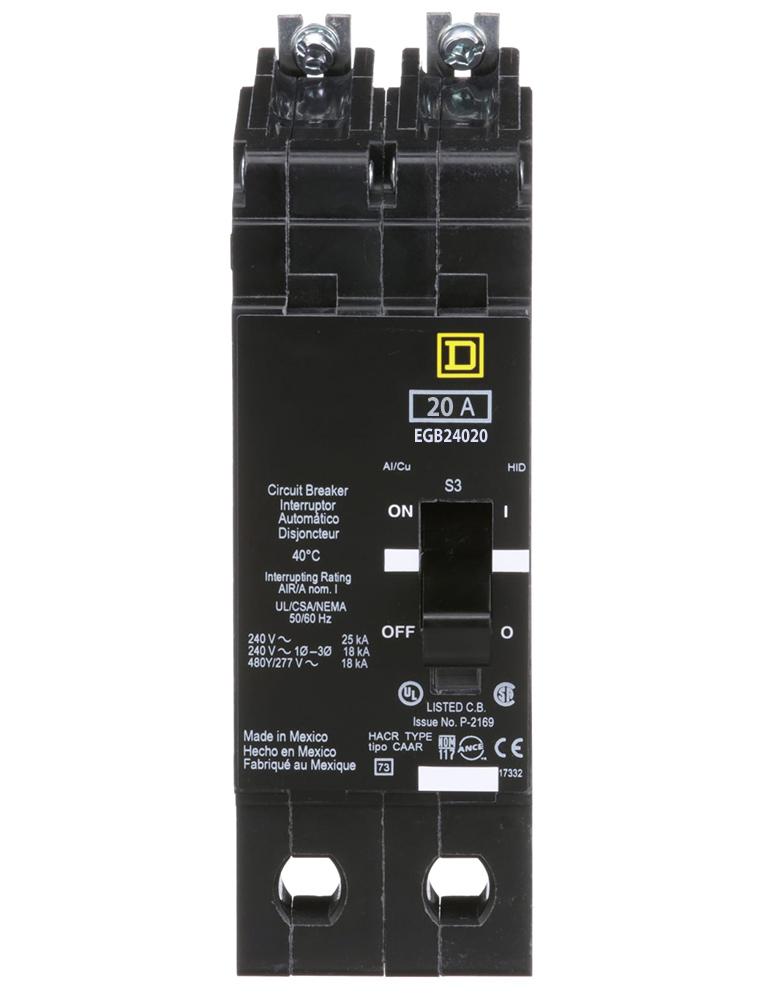

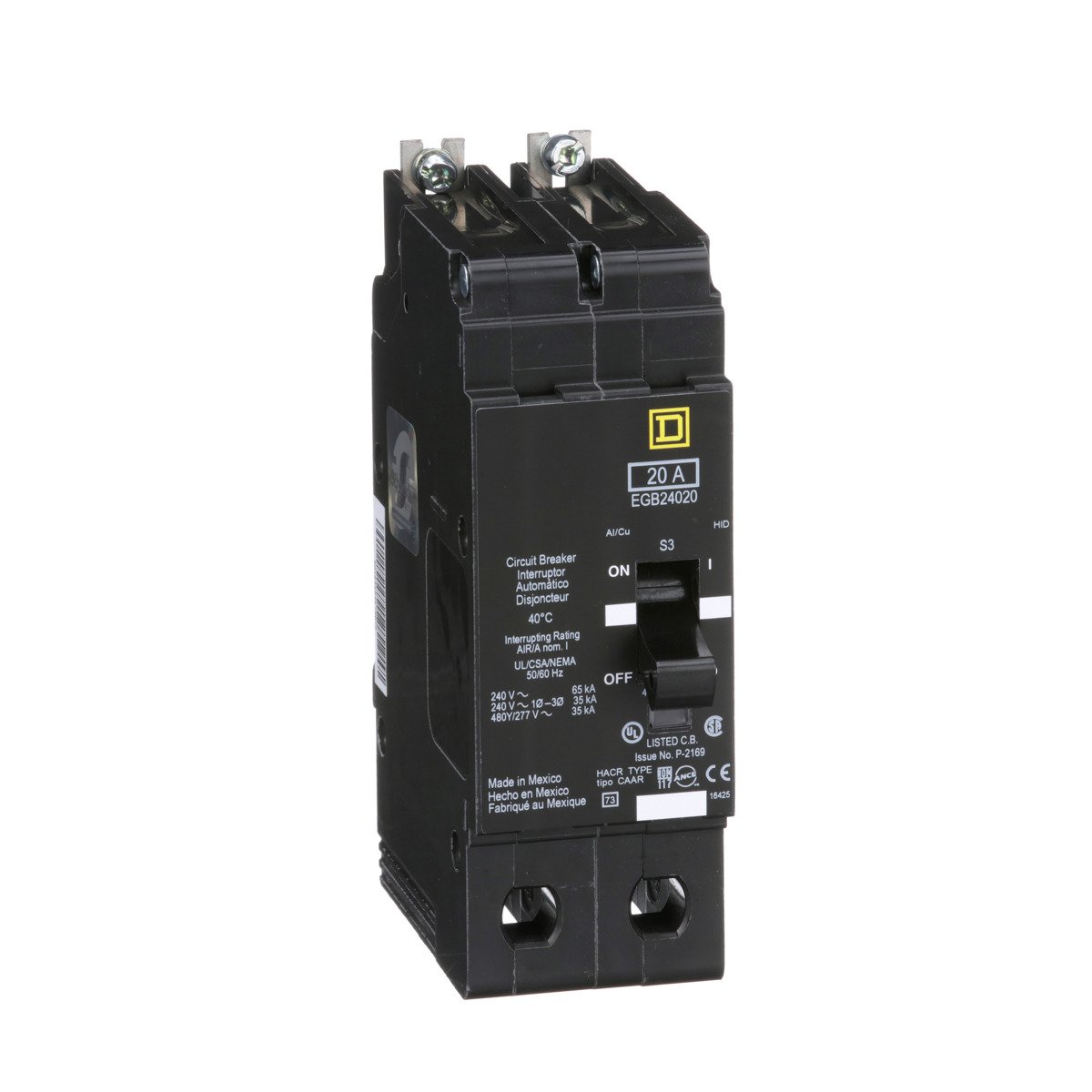

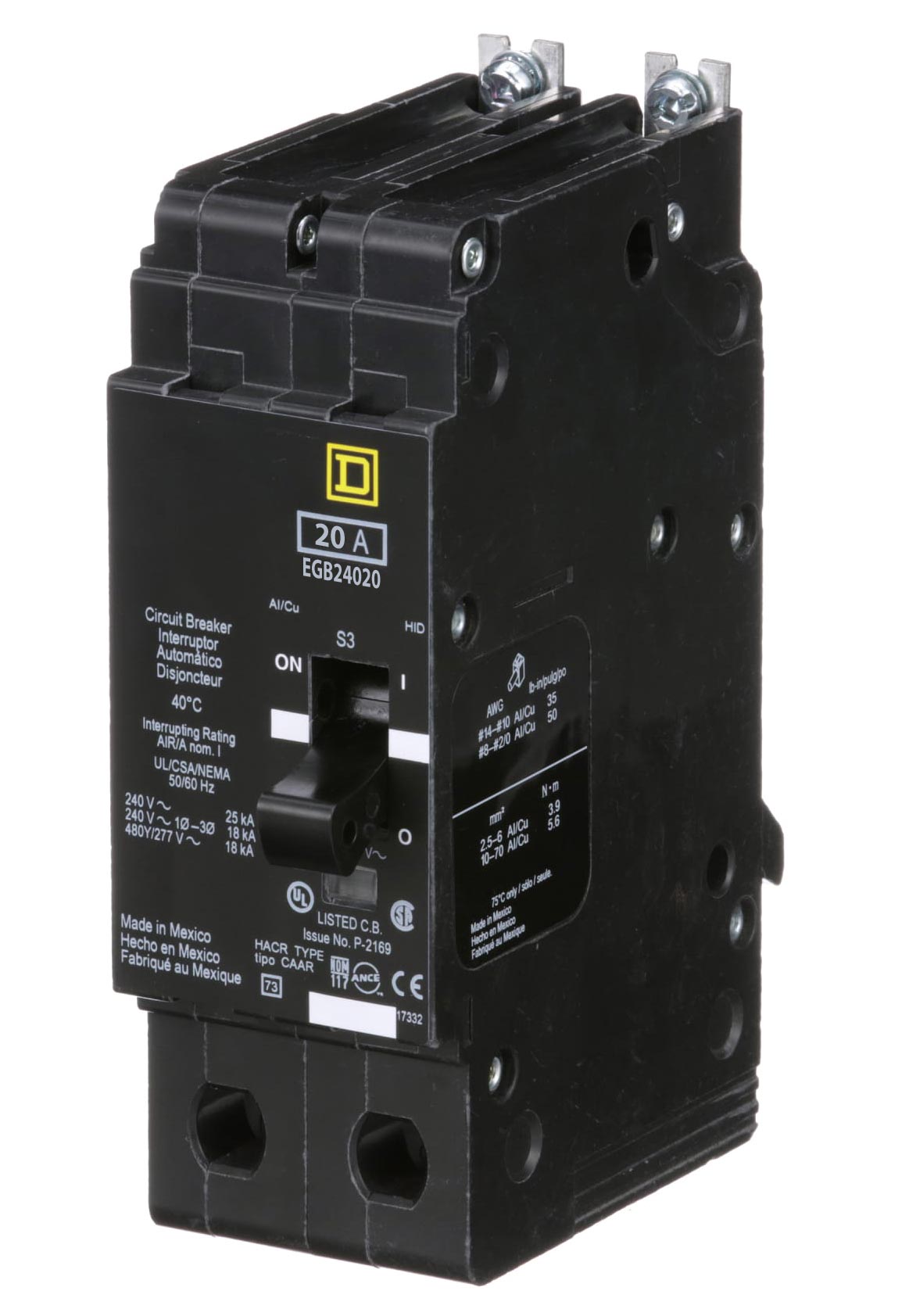

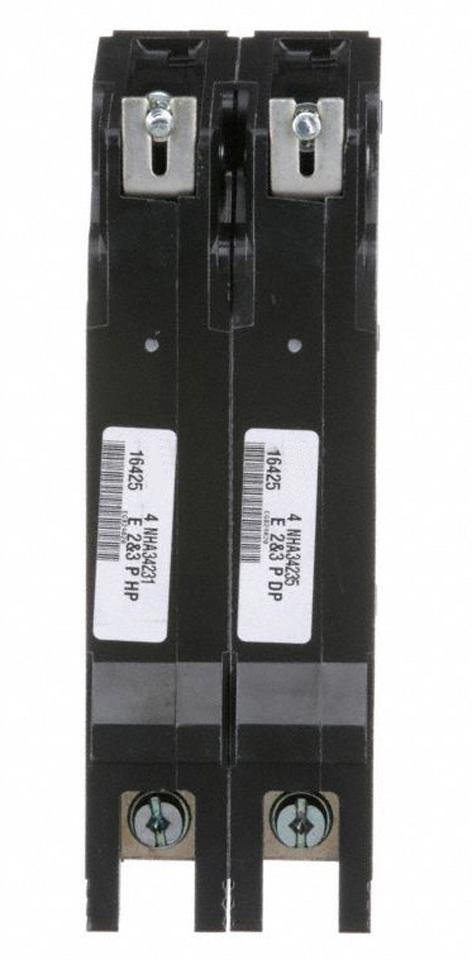

Square D EGB24020 miniature circuit breaker 20 amp

Product Description

The SQUARE D EGB24020 is an E-Frame breaker for lighting panelboards. This 20 Amp, 2-pole miniature circuit breaker offers overload and short circuit protection. It features a thermal-magnetic trip unit and a signal indicator. The breaker is HACR and HID rated and calibrated for 40 degrees C. It is UL Listed as High Intensity Discharge.

• E-Frame Breaker for Lighting Panelboards
• Superior overload and short circuit protection
• Thermal-magnetic trip unit
• Signal indicator for trip indication

Product Highlights

The SQUARE D EGB24020 provides reliable circuit protection with thermal-magnetic tripping and clear trip indication.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: EGB24020
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Depth: 4.05 Inch
• Frame: E-FRAME
• Width: 1.96 in
• Height: 5.66 Inch
• Length: 4.05 Inch
• Voltage: 480Y/277VAC
• Amperage: 20A
• Sub Brand: EGB
• Trip Type: Thermal-magnetic
• Trip Range: 875 A
• Module Type: E-Frame
• Product UPC: 78590131111
• 12-Digit UPC: 785901311119
• Applications: HACR rated;HID rated
• Mounting Type: Bolt-On
• TC Connection: LUGS #12 TO #6 AWG(AL) - #14 TO #6 AWG(CU)
• Certifications: CULus
• Number of Poles: 2 Pole
• Interrupt Rating: 35 kAIC
• Number of Spaces: 2
• Line Rated Current: 20 A
• Catalog Number: EGB24020
• Manufacturer: Schneider Electric
• UPC: 785901311119
• GTIN: 00785901311119
• Voltage Rating: 120/240/277 VAC at 50/60 Hz, 480 VAC Star/277 VAC at 50/60 Hz (UL/CSA)
• Current Rating: 20 Ampere
• Installation: Bolt-On
• Application: Lighting
• Used On: Class 515 NF Series Panelboard
• Approval: UL, CSA, NOM 117
• Tripping Method: Thermal Magnetic
• Terminal Wire Size: 12 to 6 AWG (Aluminum), 14 to 6 AWG (Copper)
• Poles: 2
• Interrupting Rating: 65kA max
• Mounting: Bolt On
• HACR Rated: Yes
• HID Rated: Yes
• Calibration Temperature: 40 degrees C
• UL Listed: High Intensity Discharge
• Hold Current: 270A
• Trip Current: 875A
• Part Number: EGB24020
• Family: EGB Series
• Pole: 2
• Amp: 20
• Volt: 480
• Phase: 1
• Category: Molded Case / 2-Pole
• Connection: Bolt-On
• Functions: LI - Long-Time and Instantaneous
• Protection: Thermal Magnetic
• AIC Ratings: 35kA@480V | 35kA@277V | 65kA@240V | 65kA@120V
• Dimensions (HxWxD): 5.66" x 1.96" x 4.05"
• Protection Type: Short-Circuit / Overload
• Trip Unit Rating: 875 Amp
• Maximum Operating Voltage: 480Y/277 V AC
• Mounting Mode: Bolt-On
• Product Destination: Square D NF Panelboard
• Electrical Connection: Aluminum Lugs
• Holding Current: 270 Amp
• Local Signaling: Trip Indicator
• Circuit Breaker Application: HID-Rated / HACR-Rated
• AWG Gauge: AWG 12...AWG 6 Aluminum | AWG 14...AWG 6 Copper
