Square D EDB14025 Miniature Circuit Breaker 277 Volt 25 Amp E-Frame

Product Description

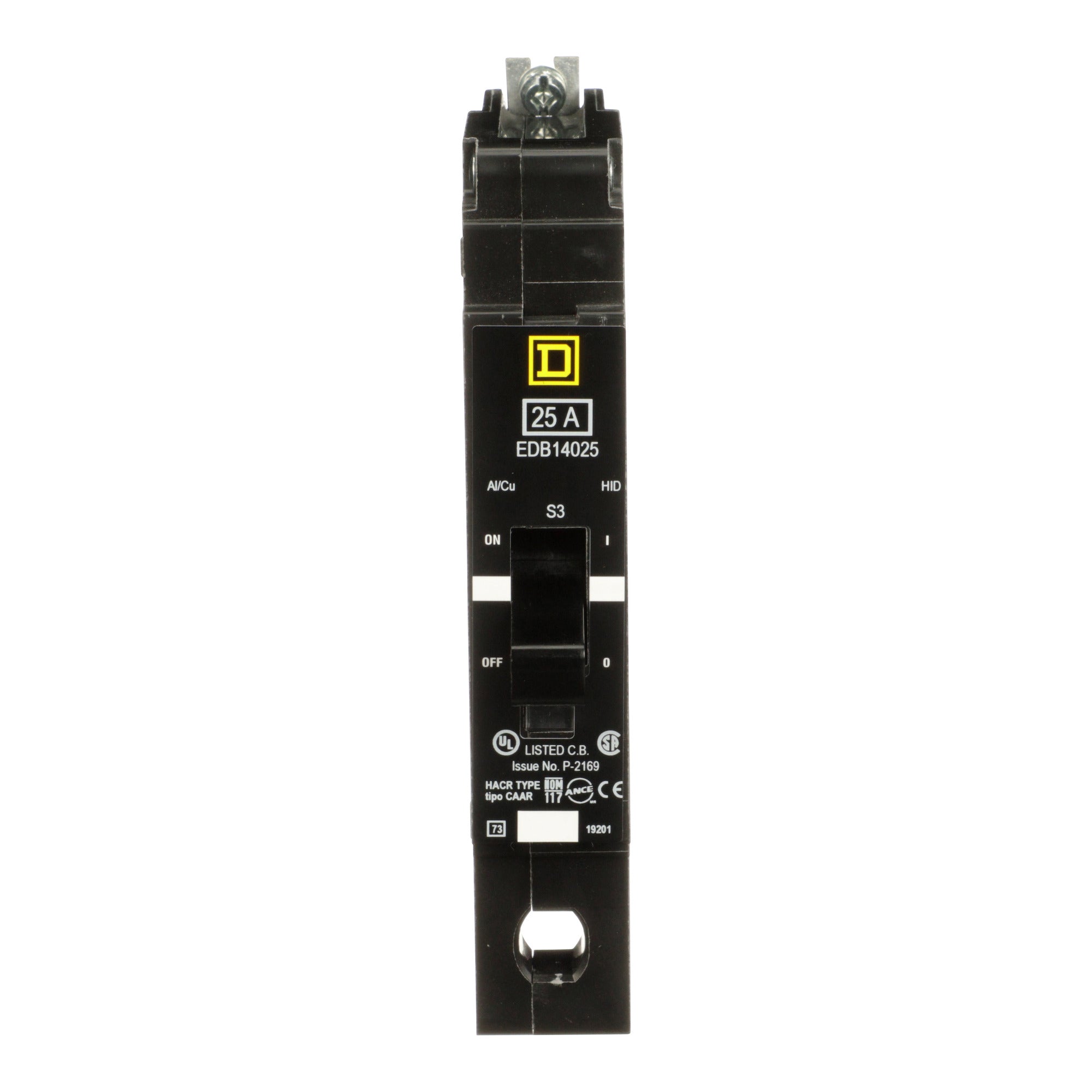

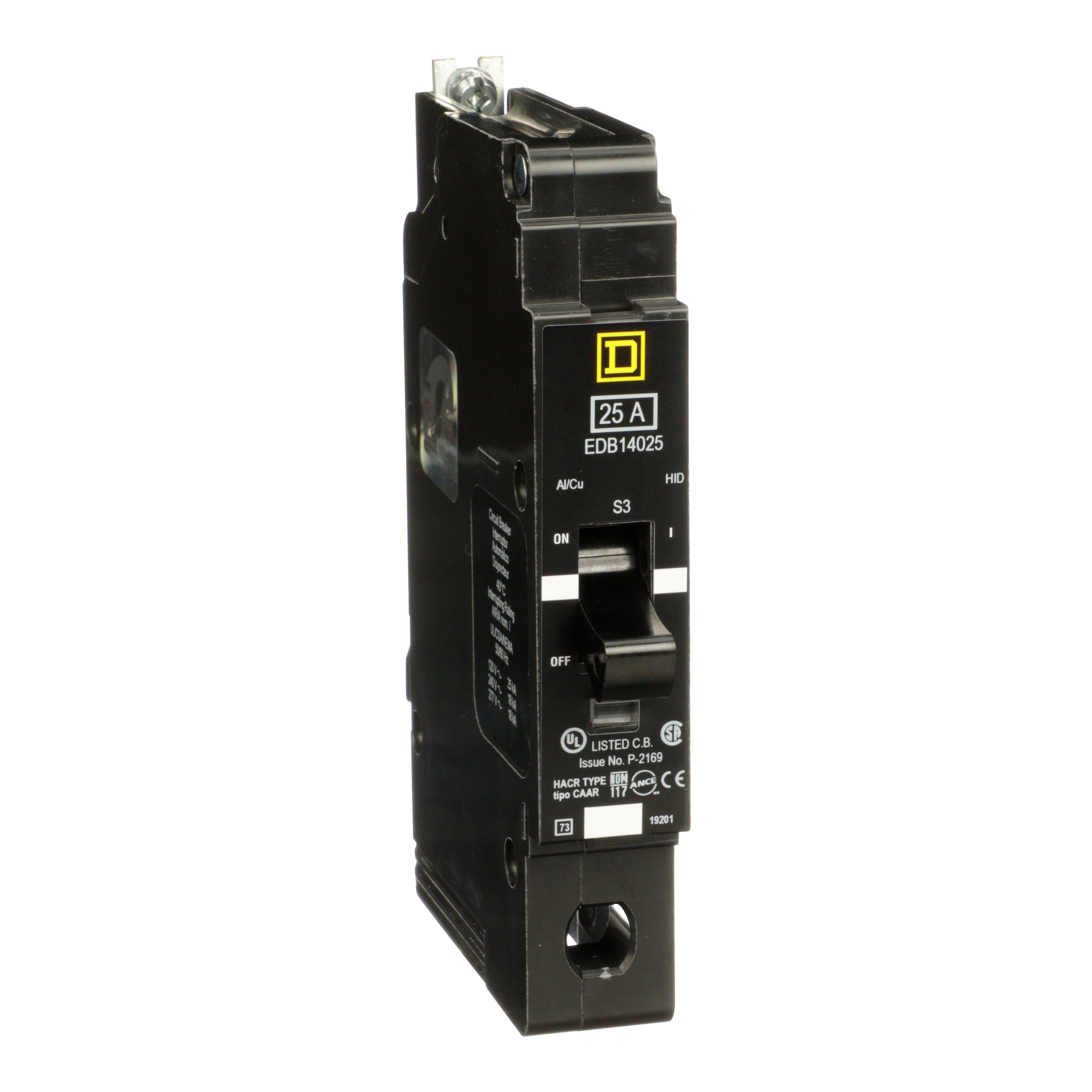

This Square D EDB14025 is a miniature circuit breaker designed for use in NF panelboards. It operates at a maximum voltage of 277 VAC and provides overload and short circuit protection. The breaker has a thermal-magnetic trip unit and a signal indicator for trip status.

• Single pole, 25 A rating.
• Maximum interrupt rating of 25 kA at 120 VAC.
• Compatible with HACR and HID applications.

Product Highlights

This breaker is designed with a hold current of 270 A and a trip current of 875 A, ensuring reliable performance. It mounts easily with bolts, and the electrical connections can accept a range of wire gauges.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: EDB14025
• Voltage: 277 VAC
• Amperage: 25 A
• Number of Poles: 1
• Height: 5.66 inches
• Width: 0.98 inches
• Depth: 4.05 inches
• Weight: 2 lb
• Trip Type: Thermal-magnetic
• Breaking Capacity: 18 kA
• Country of Origin: Mexico
• Electrical Connection: Lugs for AWG 12 to 6 aluminum and AWG 14 to 6 copper
• Warranty Length: 18 months
