Square D DU324 Safety Switch Not-Fusible 200A 240V 3P NEMA1

Product Description

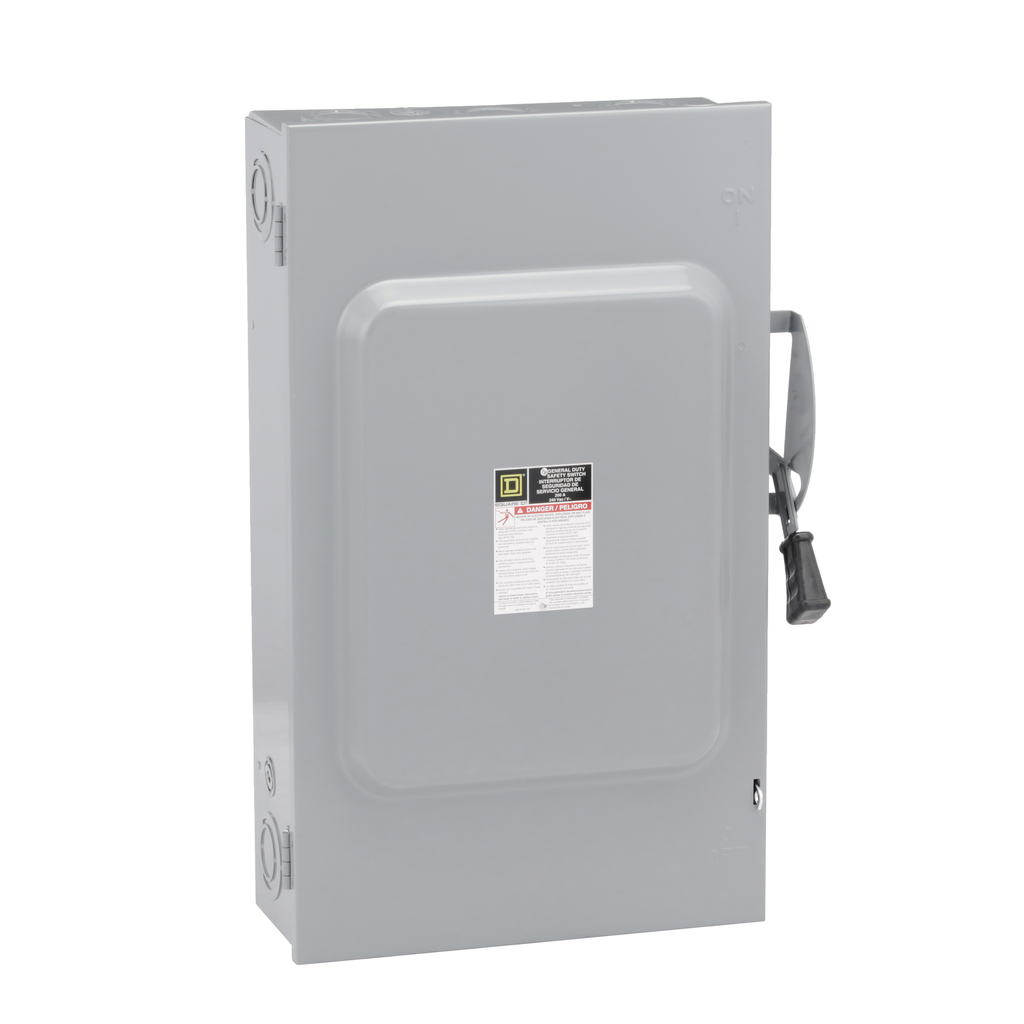

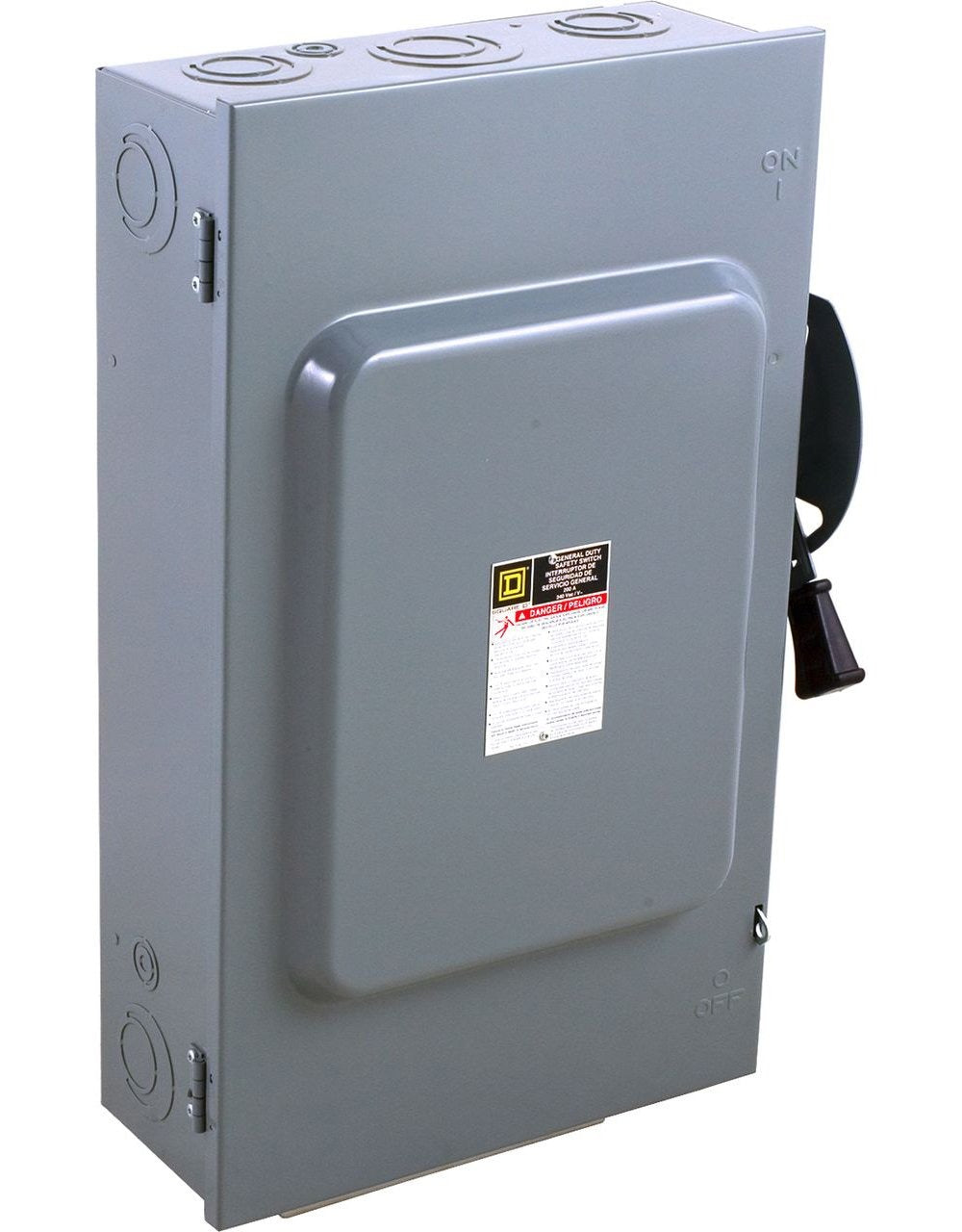

The Square D DU324 safety switch is a non-fusible disconnect switch rated for two hundred amps and suitable for three-phase applications. This switch operates at a voltage of two hundred forty AC volts and is designed for residential and commercial use. The compact size of twenty-nine inches in height, nineteen inches in width, and eight-point twenty-five inches in depth ensures easy installation in tight spaces.

• Non-fusible disconnect switch for safety and control
• UL Listed with a short circuit rating of one hundred kA
• Surface mounted with lugs accommodating wire sizes from AWG six to two hundred fifty kcmil

Product Highlights

Ideal for light and appliance loads, this safety switch ensures durable performance while meeting or exceeding NEMA standards.

Product Information

Standard Information

• Catalog Number: DU324
• Brand: Square D

Technical Specifications

• Rated Current: 200 A
• Voltage: 240 V AC
• Number of Poles: 3
• Mounting Type: Surface
• Height: 29 in
• Width: 19 in
• Depth: 8.25 in
• Enclosure Rating: NEMA 1
