Product Description

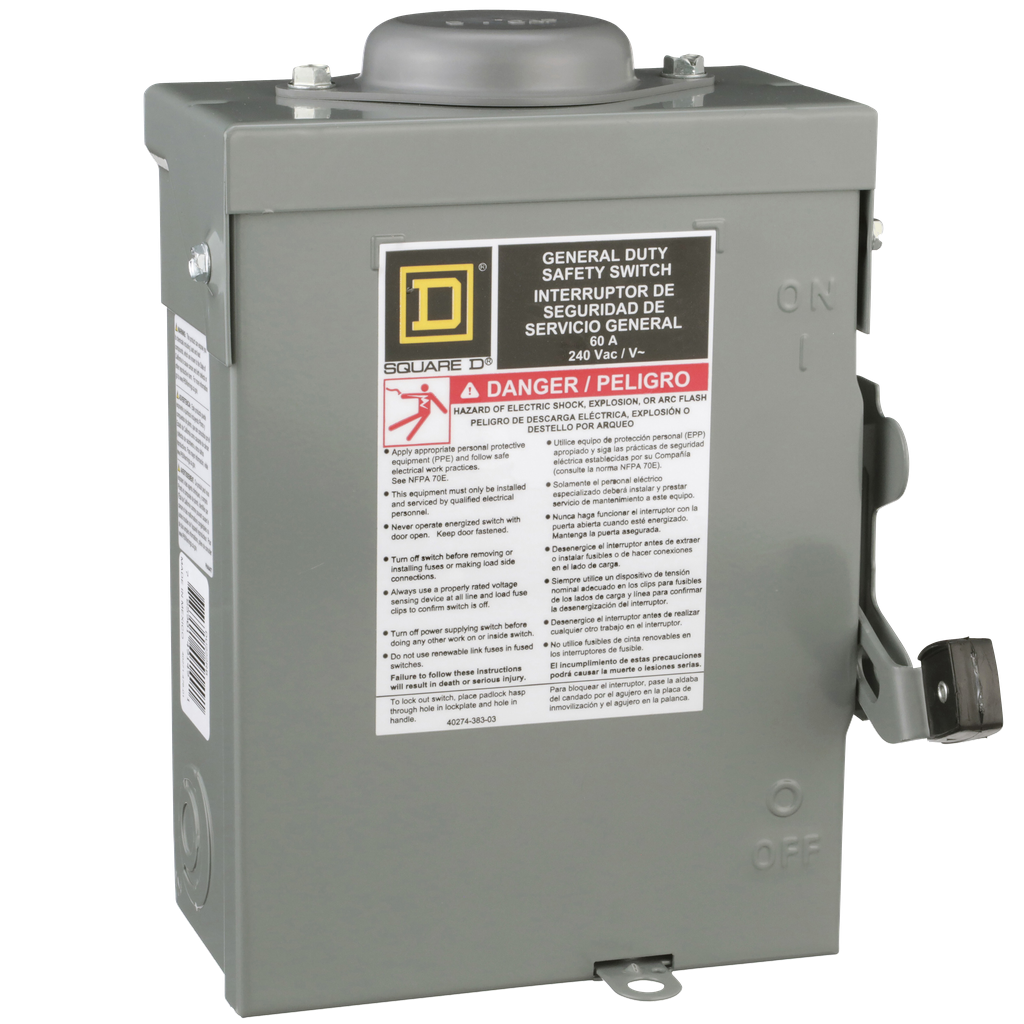

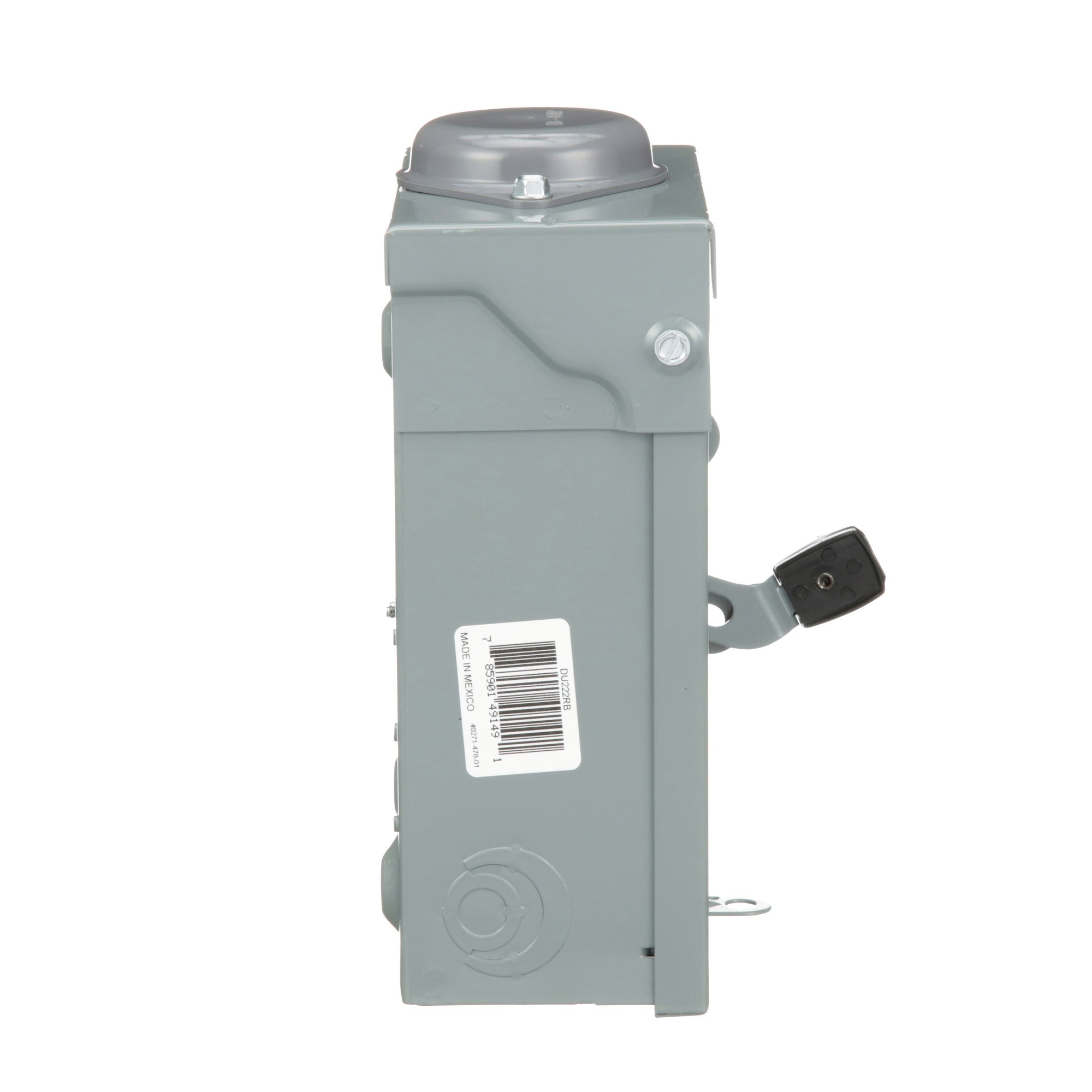

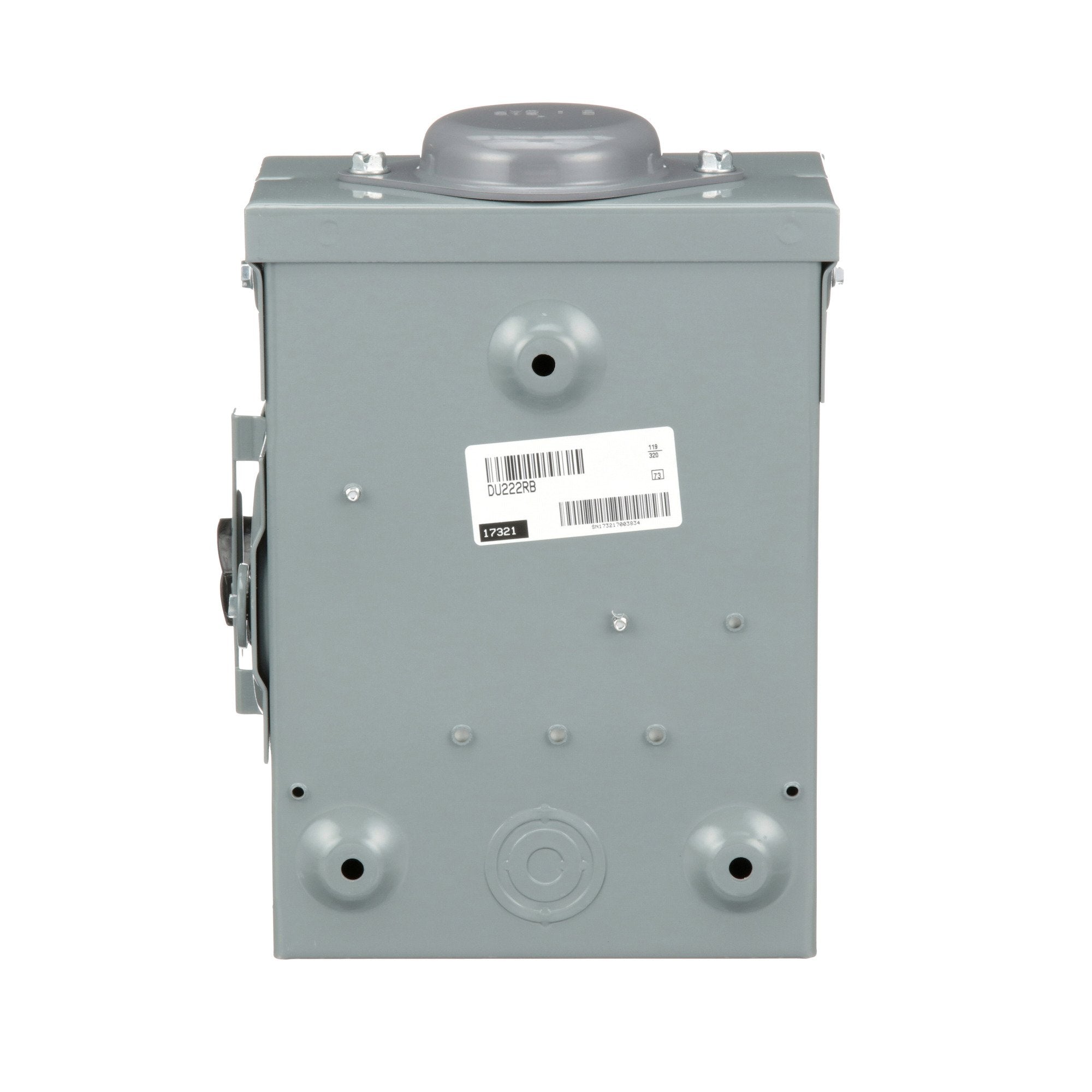

The Square D DU222RB is a general duty safety switch designed for both residential and commercial applications. This switch has a rated current of sixty amps and operates at two hundred forty volts in a two-pole configuration. Applicable for typical loads such as lighting, air conditioning, and appliances, it is suitable for service equipment when equipped with the proper grounding kits.
- UL Listed and NEMA 3R rated for weather resistance.
- Surface mounted with a short circuit rating of ten kA.
- Accepts various wire sizes up to AWG twelve aluminum and AWG fourteen copper.
Product Highlights
This non-fusible disconnect switch provides reliable operation in challenging environments and supports easy surface mounting.
Product Information
Standard Information
-
Brand: Square D
-
Manufacturer: Schneider Electric
Technical Specifications
-
Rated Current: 60 A
-
Voltage: 240 V
-
Number of Poles: 2
-
NEMA Rating: 3R
-
Dimensions: 9.63 in (H) x 7.75 in (W) x 3.75 in (D)
-
Weight: 16.98 lb
-
Warranty: 18 months
-
Country of Origin: Mexico
