Square D D223NRB 100A-240V Rt Sw

Product Description

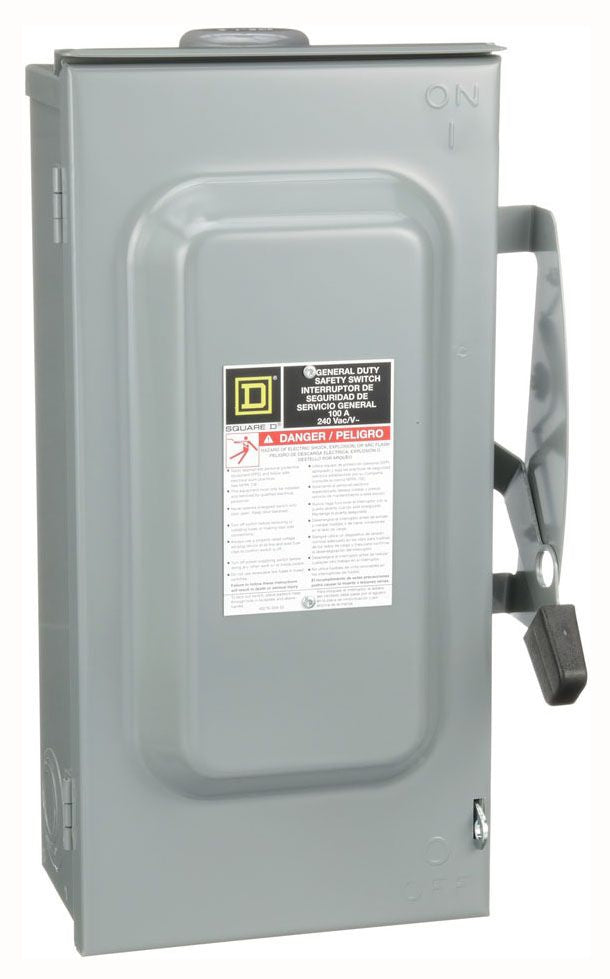

Square D D223NRB is a fusible safety switch rated for one hundred amps at two hundred forty volts. This general duty switch features a NEMA three R enclosure and is designed for reliable performance in various applications. It has a single throw design and accommodates three wires. The switch is UL approved and suitable for outdoor use.

• Fusible safety switch rated for 100A, 240V
• NEMA 3R enclosure for weatherproofing
• Single throw, general duty design

Product Highlights

The D223NRB switch is ideal for use in residential, commercial, and industrial settings. It offers a sturdy performance and ease of installation.

Product Information

Standard Information

• Manufacturer: Square D Co.
• Catalog Number: D223NRB

Technical Specifications

• Enclosure Material: Phosphatized Steel
• Size: 10.5 inches width x 6.5 inches depth x 17.5 inches height
• Current Rating: 100 A
• AC Voltage Rating: 240 V
• Number of Poles: 2
• Number of Wires: 3
• Fuse Type: Cartridge, Class R
• Approval: UL Listed
• Power Rating: 7.5 HP at 240 VAC 1-Phase
