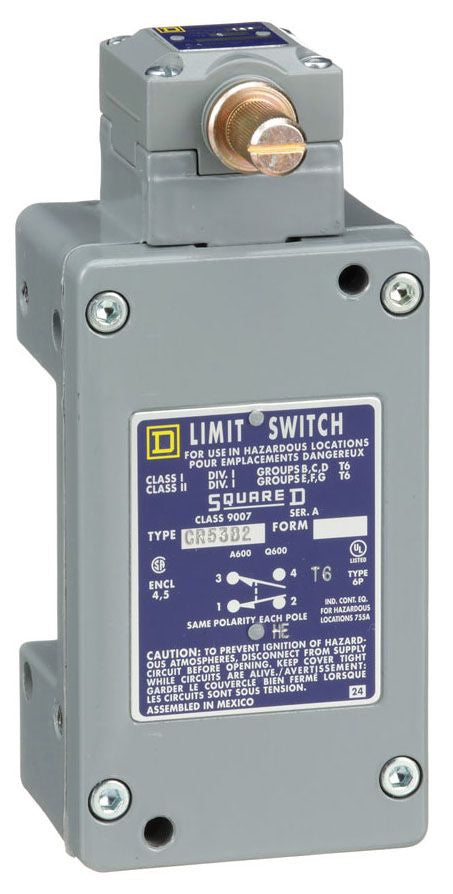

Square D Co. 9007CR53B2 Telemecanique Limit Switch 600V 10Amp C +Options

Product Description

The Square D Co. 9007CR53B2 is a limit switch designed for heavy-duty application. Operating at 600 volts and 10 amps, it incorporates multiple functionalities suitable for industrial settings.

• Durable and heavy-duty design for industrial uses
• SPDT configuration with single normally open and normally closed contacts
• Threaded connection for easy installation

Product Highlights

Square D Co. 9007CR53B2 limit switch is ideal for controlling motion in various industrial machines. It features a robust design that offers reliable performance in diverse environments.

Product Information

Standard Information

• Manufacturer: Square D Co.
• UPC: 78590176335

Technical Specifications

• Type: Heavy Duty, Industrial, Plug-In
• Contact Rating: 600 Volt AC 10 Amp, 600 Volt DC 2.5 Amp
• Contact Configuration: SPDT, 1NO-NC
• Actuator/Head Type: Rotary Lever
• Total Travel: 90 Degree
• Pretravel: 10 Degree
• Differential Travel: 4 Degree
• Connection Type: 1/2 Inch-14 Threaded
• Operating Temperature: -20 to 185 Deg F
• Body Material: Zamak Zinc Alloy
• Enclosure: NEMA 1/2/4/6/6P/12/13, IP67
• Approval: UL, CSA, CE
• Additional Information: RoHS Compliant; Applicable Standard IEC 60947, EN 60947-1/60947-5-1, NEMA 250
