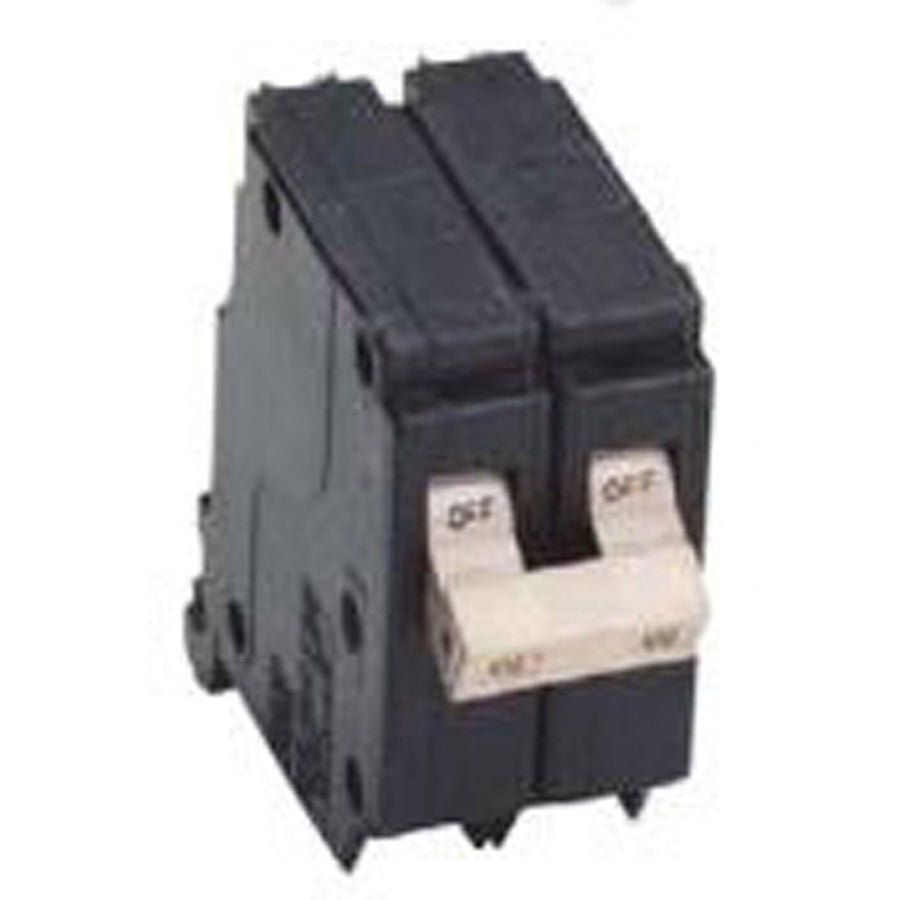

Square D CH215 2-pole Circuit Breaker 15 Amp Plug-on

Product Description

The SQUARE D CH215 is a 2-pole, plug-on circuit breaker rated for 15 amps and 120/240 volts AC, designed for residential and light commercial load center installations. With a 10 kiloamp interrupting rating, it provides reliable overcurrent protection for branch circuits in panelboard applications. The plug-on mounting style allows fast, tool-free installation into compatible load centers. This breaker is a standard replacement or new-circuit addition installed by licensed electricians working on residential panel upgrades, home additions, or service calls requiring branch circuit protection.

The CH215 fits into load center applications where a 2-pole, 15 amp breaker is required to protect 240-volt branch circuits such as small appliance circuits, HVAC equipment, or dedicated outlet circuits. It accepts wire sizes from 14 to 8 AWG aluminum or 14 to 10 AWG copper, giving installers flexibility across common residential wiring gauges. This breaker suits both new construction panel builds and retrofit panel service work.

Key Features

• 15 amp, 2-pole configuration for 120/240 volt AC branch circuit protection
• 10 kiloamp interrupting rating for safe fault current handling
• Plug-on mounting for fast, straightforward load center installation
• Accepts 14 to 8 AWG wire for flexible conductor compatibility
• Designed for use in load center panelboards

Compatibility

Designed as an OEM-style replacement or addition for load center panelboards accepting plug-on 2-pole circuit breakers in the CH series form factor.

Installation Notes

Installation must be performed by a qualified, licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Always shut off the main breaker and verify the panel is de-energized before working inside a load center. Confirm conductor size and insulation rating match the breaker specifications before landing wires. Do not exceed the wire size range of 14 to 8 AWG when terminating conductors to this breaker.

Technical Specifications

• Current Rating: 15 amps
• Voltage Rating: 120/240 volts AC
• Number of Poles: 2
• Interrupting Rating: 10 kiloamps
• Mounting Style: Plug-On
• Wire Size: 14 to 8 AWG, 14 to 10 AWG
• Used On: Load Center

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: CH215
