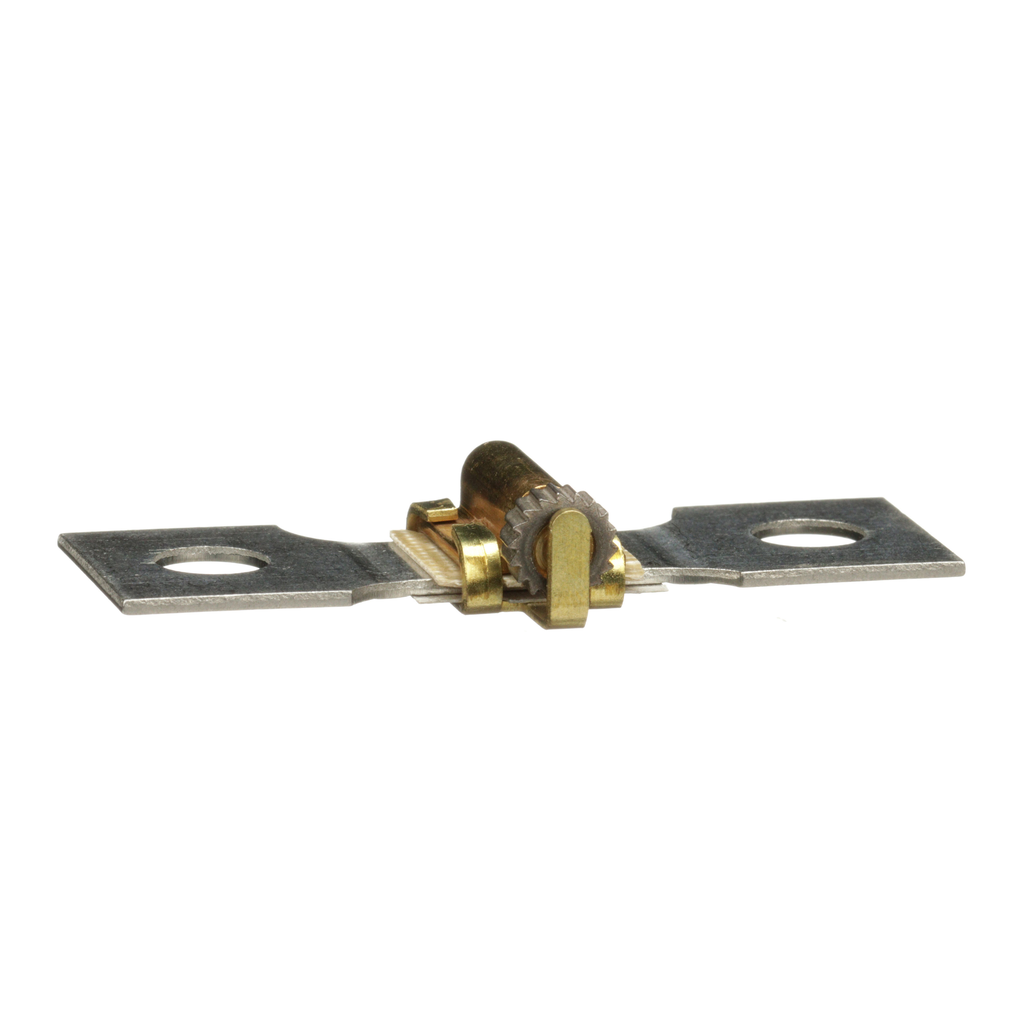

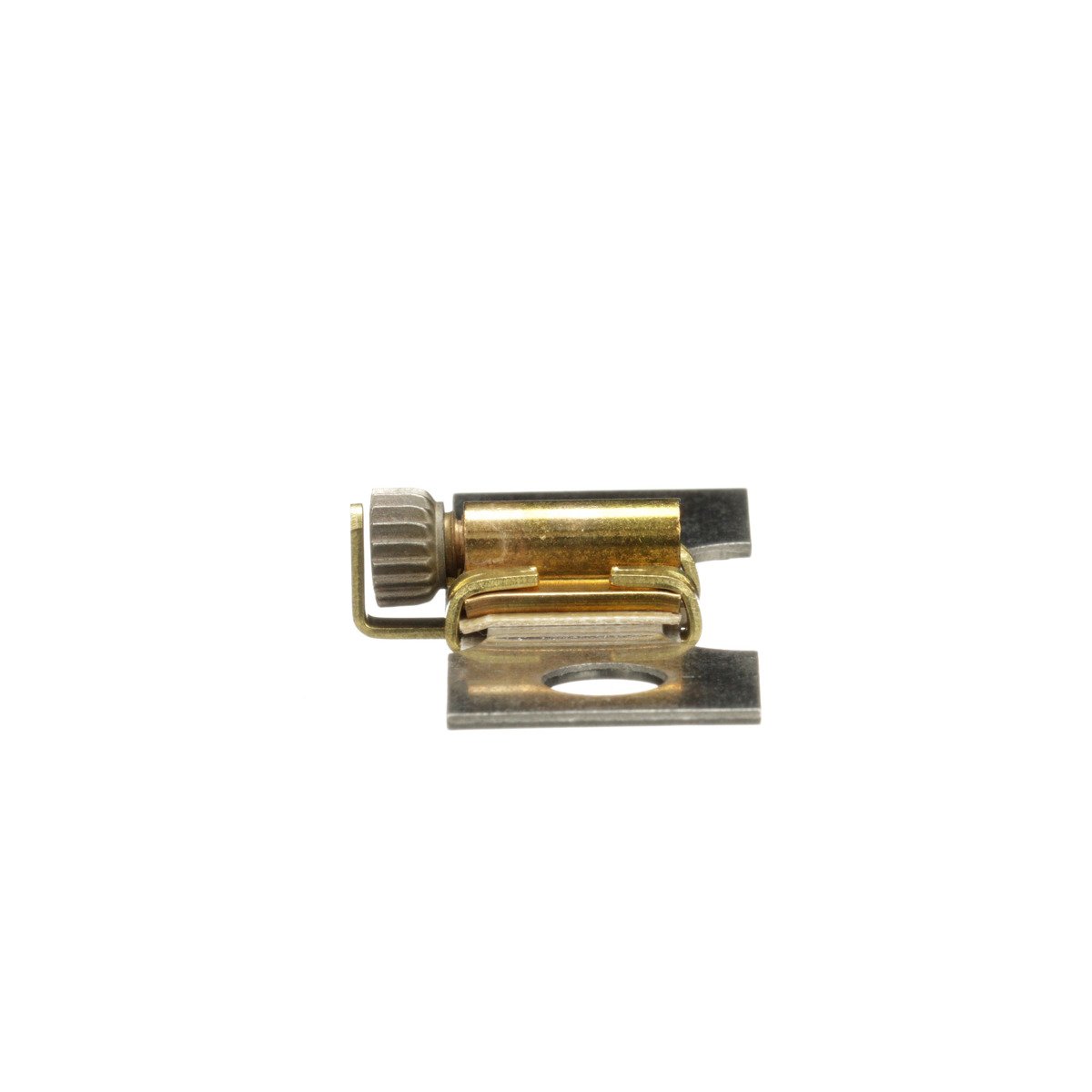

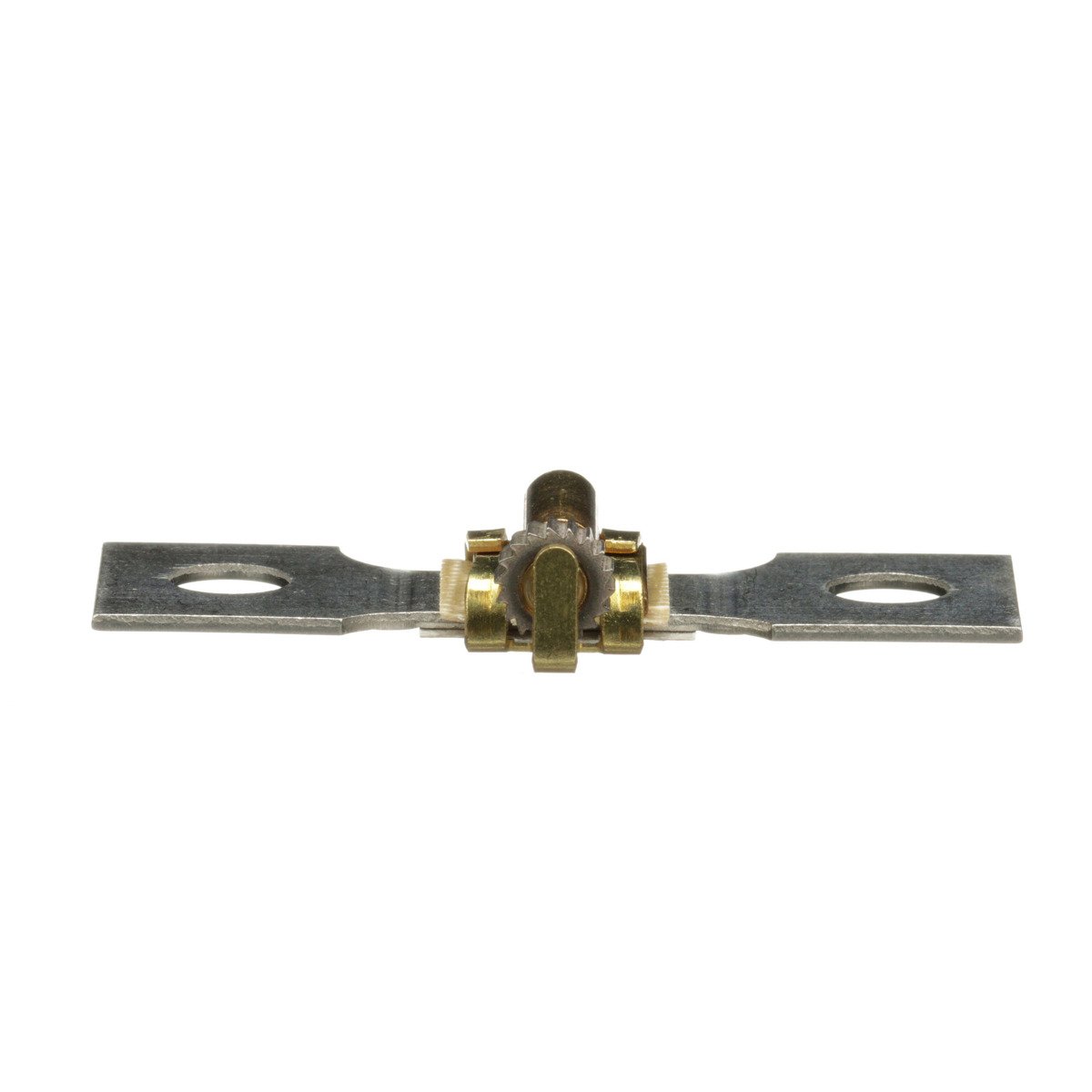

Square D CC59.4 Thermal Unit Power Melting Alloy Class 20

Product Description

The Square D CC59.4 Thermal Unit is designed to protect motors, controllers, and branch circuit conductors from excessive heating caused by prolonged motor over-currents, including locked rotor currents. These thermal units work alongside branch circuit fuses or circuit breakers to protect against short circuits and grounds. They are designed to trip within 20 seconds or less when overload conditions occur.

• Melting alloy thermal design
• Single piece construction
• Suitable for most motor types

Product Highlights

The CC59.4 model ensures reliable protection for motors against overloads. Its trip mechanism utilizes heat-sensitive solder that disrupts the circuit to prevent motor damage.

Product Information

Standard Information

• Catalog Number: CC59.4
• Brand: Square D

Technical Specifications

• Type: Thermal - Melting Alloy Thermal Unit
• Reset Type: Manual
• Trip Type: Standard Trip - Class 20
• Country of Origin: Mexico
• Warranty Length: 18 months
• Applications: For use in melting alloy thermal overload relays
• UPC: 785901588085
