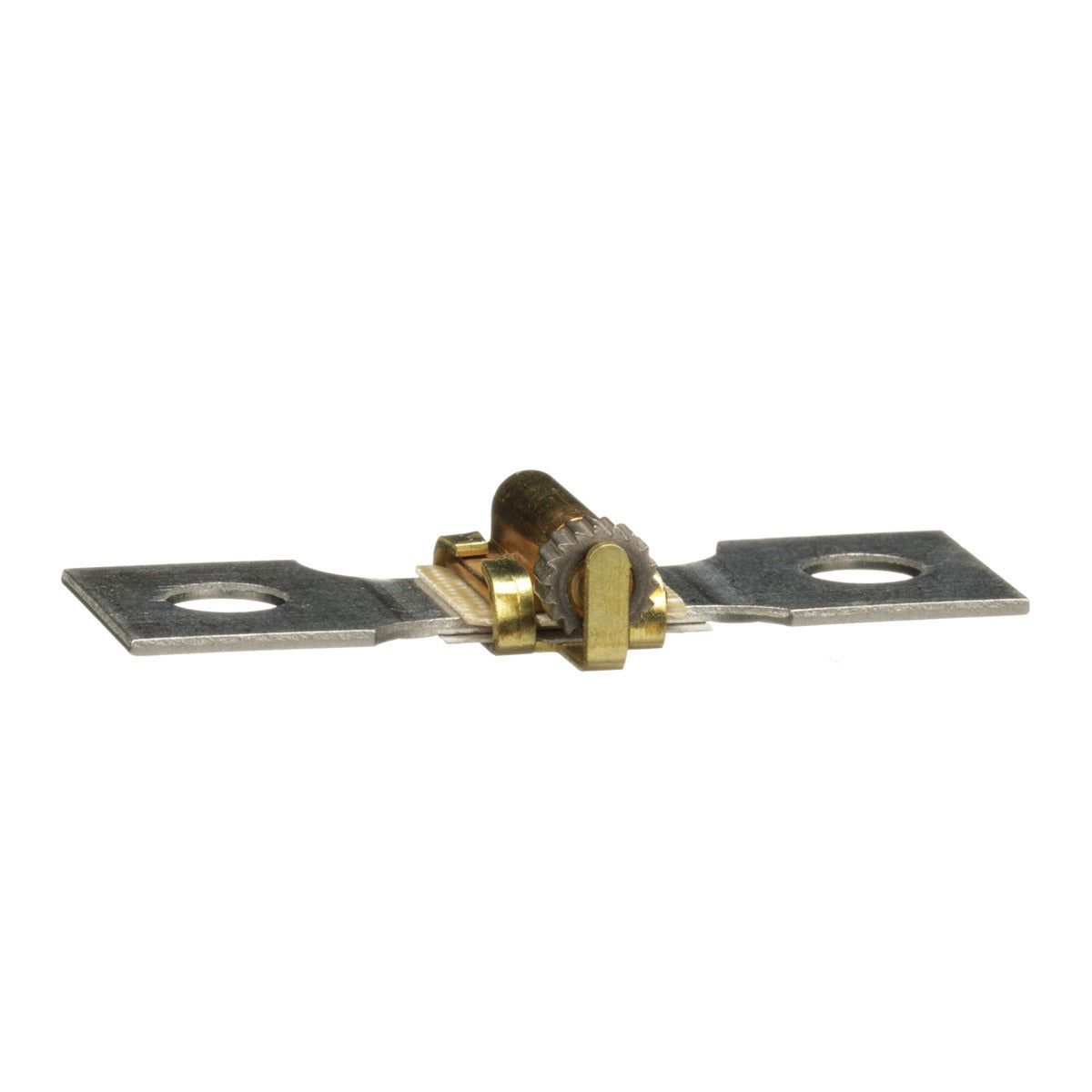

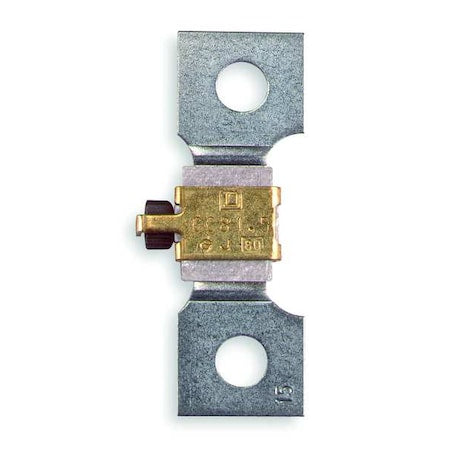

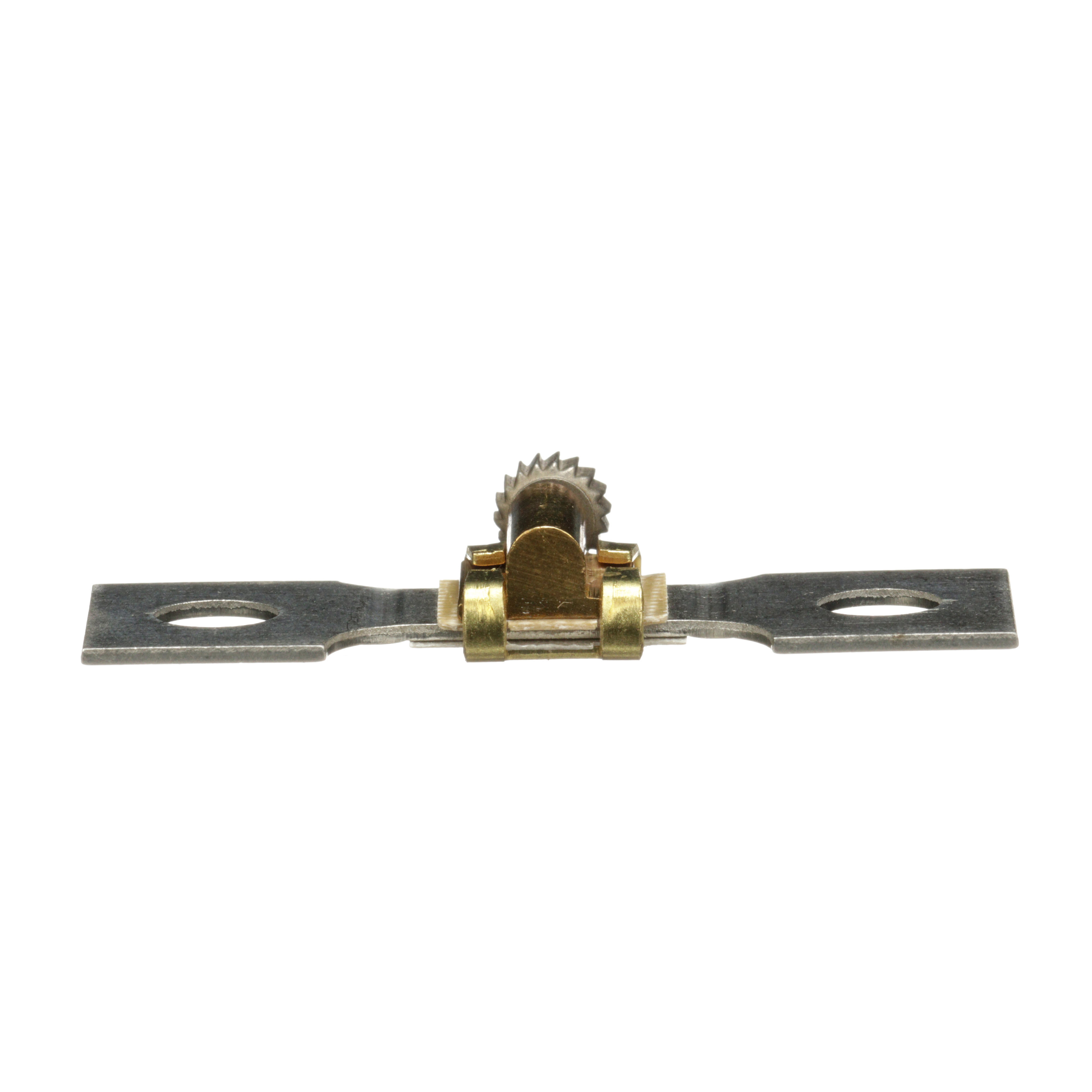

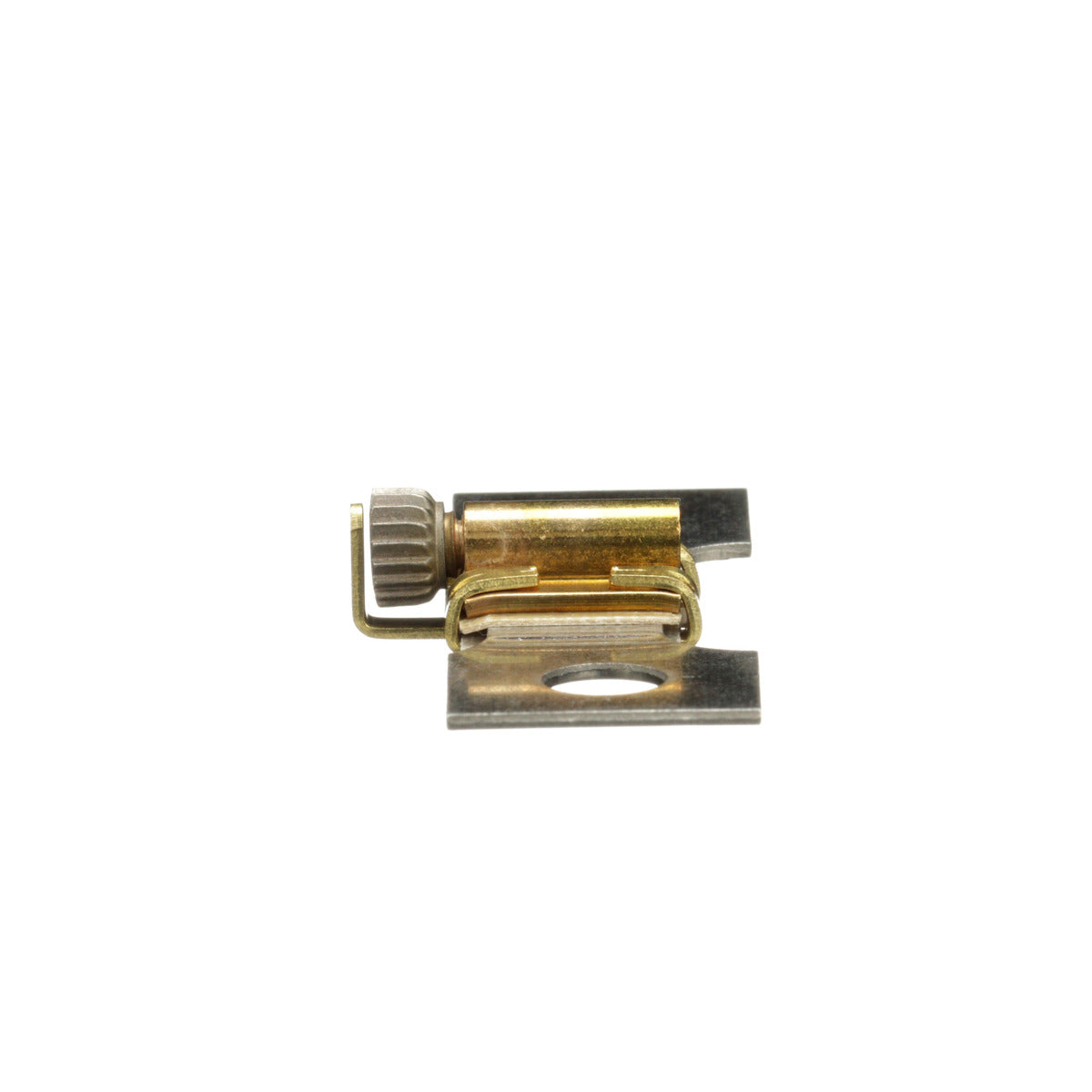

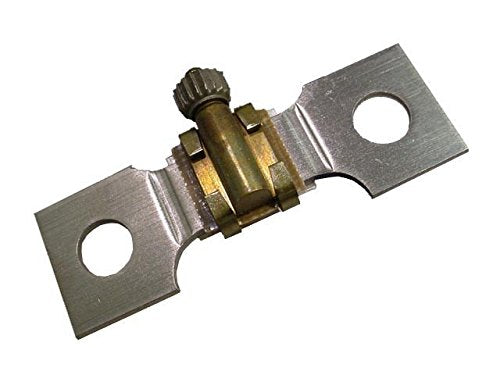

Square D CC59.4 Thermal Unit

Product Description

The Square D CC59.4 thermal unit protects motors, controllers, and branch circuit conductors from excessive heating due to prolonged motor over currents, including locked rotor currents. These Class 20 thermal units respond to overload current conditions according to trip curves, tripping in 20 seconds or less. The motor current passes through a small heater winding, and under overload conditions, heat melts a special solder, opening the control circuit contacts.

• Melting alloy thermal units available in standard trip (Class 20), slow trip (Class 30), and quick trip (Class 10) designs.
• One-piece thermal unit construction.
• Provides overload protection for most motors.

Product Highlights

Provides overload protection for motors, controllers, and branch circuits. Features one-piece construction and melting alloy design.

Product Information

Standard Information

• Brand: Square D
• Manufacturer Part Number: CC59.4
• Country of Origin: Mexico

Technical Specifications

• Type: THERMAL - MELTING ALLOY THERMAL UNIT
• Brand: Square D
• Sub Brand: SCHNEIDER ELECTRIC
• Trip Type: Class 20, Standard
• Reset Type: MANUAL
• Applications: FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS
• Catalog Number: CC59.4
• Manufacturer: Schneider Electric
• Country of Origin: United States
• Made in USA: Yes
• UPC: 785901588085
• GTIN: 00785901588085
• Motor FLA: 73.8 to 79.7 Ampere (1 Thermal Unit)
• Mounting: Plug-In
• Used On: AC Magnetic Starter
• Full Load Amps: 37.6 to 40.1
• Sensing Method: Melting Alloy
• Motor Tripping Class: 20
• Thermal Overload Type: melting alloy
• FL Amp @ 3-Ph/ Size 3/ Standard Enclosure: 37.6 A
• FL Amp @ 3-Ph/ Size 3/ Open & Large Enclosure: 40.1
• Model / MPN: CC59.4
• Full Load Current: 34.3 to 79.7 A
• Mounting Type: Plug-In
• Catalog ID: SQDCC59.4
• Temperature Rating: 40 deg C
• Voltage Rating: 600 VAC
