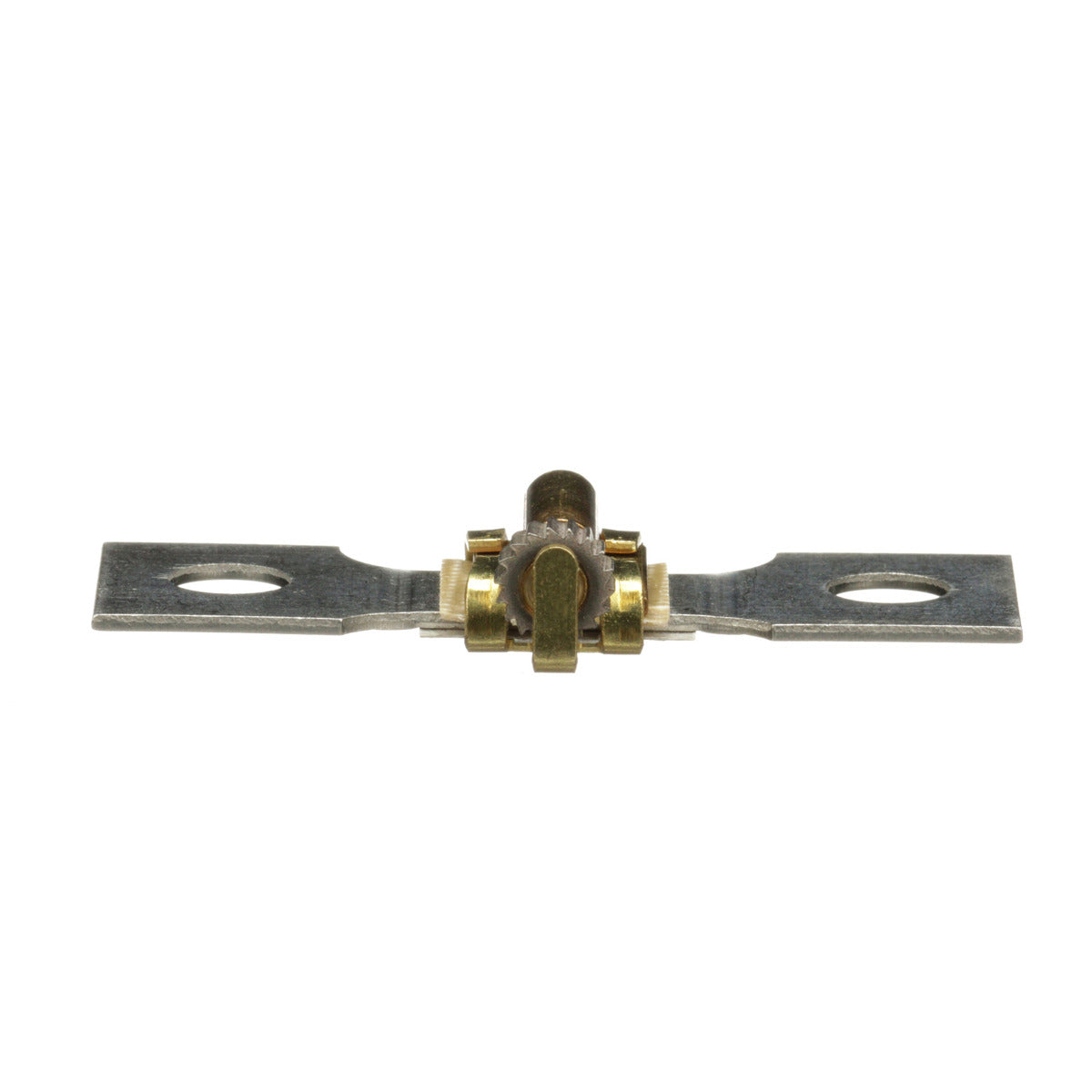

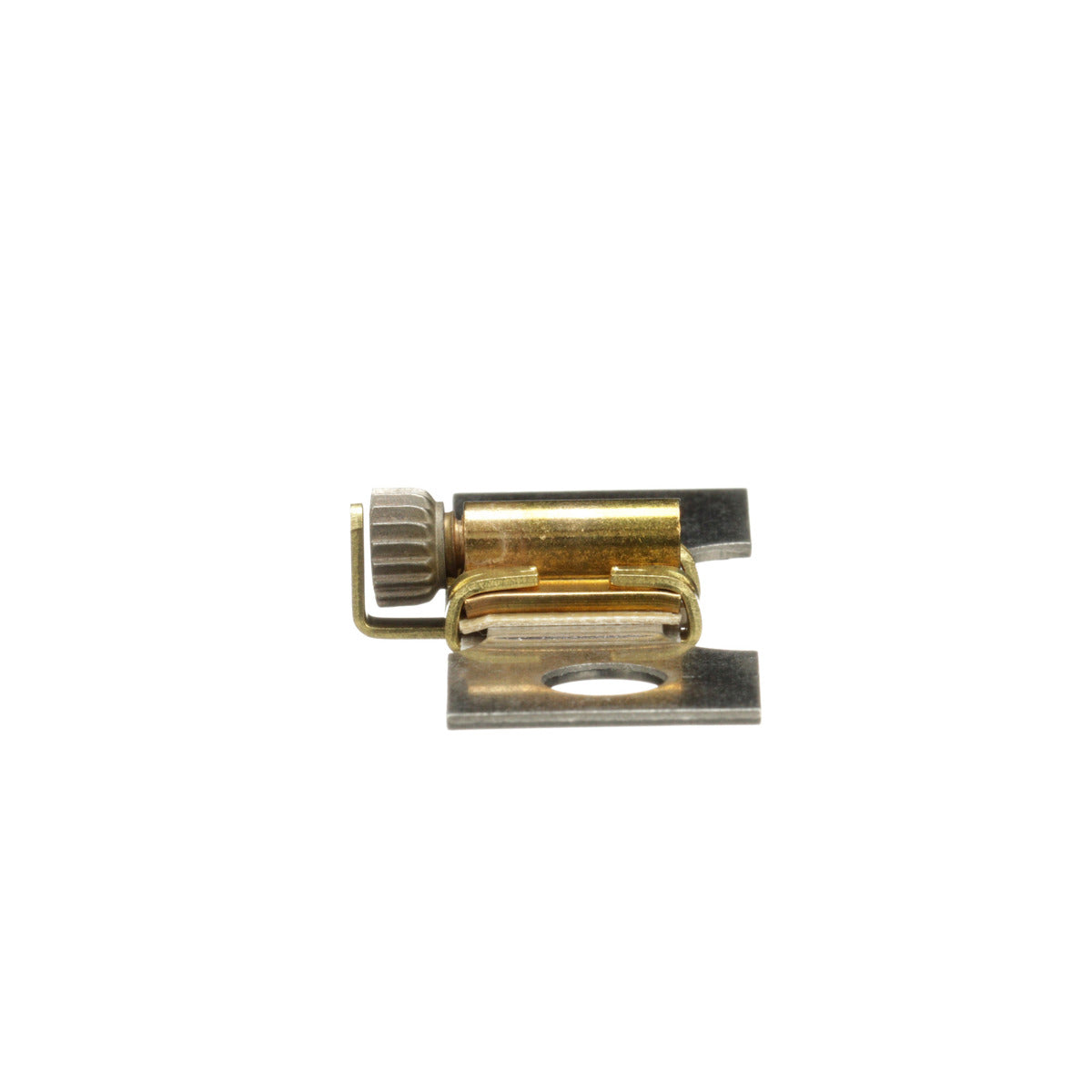

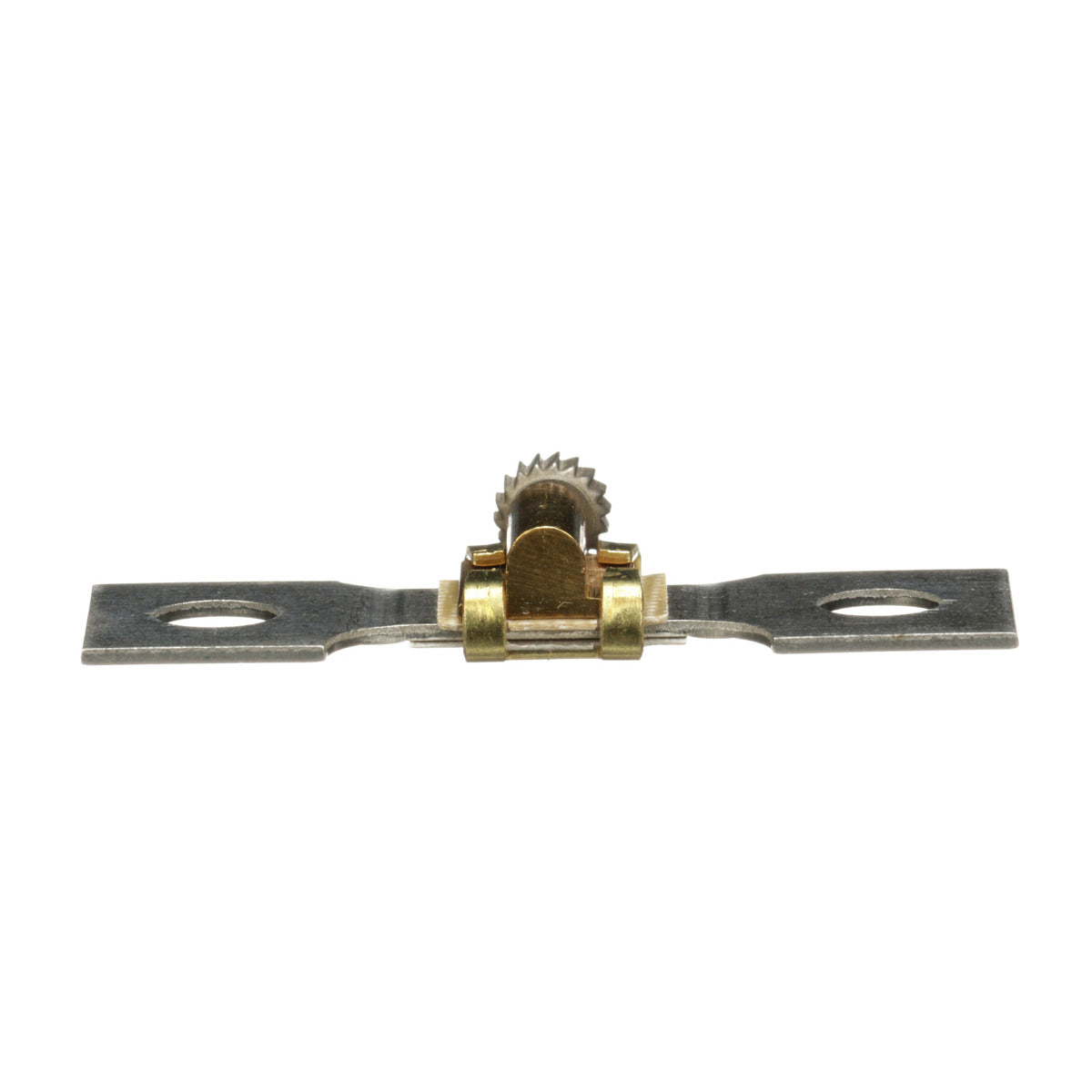

Square D CC219.0 Thermal Unit

Product Description

The Square D CC219.0 thermal units protect motors, controllers, and branch-circuit conductors against excessive heating due to prolonged motor over-currents, including locked rotor currents. These Class 20 thermal units respond to overload current conditions according to trip curves, tripping in 20 seconds or less. The motor current passes through a small heater winding, and under overload, heat melts a special solder, opening the control circuit contacts.

• Protects motors from overheating
• Protects controllers from overheating
• Protects branch-circuit conductors from overheating
• Class 20 thermal units

Product Highlights

Protects motors, controllers, and conductors from overheating with Class 20 thermal units, responding to overloads in under 20 seconds.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: CC219.0
• Country of Origin: Mexico

Technical Specifications

• Type: THERMAL - MELTING ALLOY THERMAL UNIT
• Brand: Square D
• Sub Brand: SCHNEIDER ELECTRIC
• Trip Type: STANDARD TRIP- CLASS 93
• Reset Type: MANUAL
• Applications: FOR USE IN MELTING ALLOY THERMAL OVERLOAD RELAYS
• Manufacturer: Schneider Electric
• Catalog Number: CC219.0
• Country of Origin: Mexico
• Made in USA: No
• Motor FLA: 142 to 150 Ampere (1 Thermal Unit)
• Mounting: Plug-In
• Used On: AC Magnetic Starter
• Item: Thermal Unit
• For Use With: Square D NEMA Motor Starters 4
• Product Type: Thermal Unit
• Full Load Amps: 124 to 133 (3 Thermal Unit), 124 to 150 (1 Thermal Unit)
• Sensing Method: Melting Alloy
• Motor Tripping Class: 20
• Thermal Overload Type: melting alloy
• FL Amp @ 3-Ph/ Size 4/ Standard Enclosure: 133 A
• Mfr Brand Name: SQUARE D
• Product Name: SQUARE D CC219.0 U 124 - 133A 600V NEW
• Trip Range: 124 - 133
• Volts: 600
• Condition: New
• Part Number: CC219.0
• Item Package Quantity: 1
• Included Components: SQDCC219.0
• Batteries Included?: No
• Batteries Required?: No
• Item model number: SQDCC219.0
• Is Discontinued By Manufacturer: No
• Category: Overload Protection Relays
